JET TOOLS JT9-690211 Step Pulley Milling Machine 1-1/2hp 1 Ph 115 V
Get it by Wednesday, Apr 1
5.00% off
€16,274.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Step Pulley Milling Machine |
| Amps | 9/18A |
| Collet Capacity | 1/8" to 7/8" |
| Collet Capacity - Maximum | 7/8" |
| Collet Capacity - Minimum | 1/8" |
| Cross Travel - Maximum | 9 1/2" |
| Drawbar Style | Manual |
| Frequency | 60 Hz |
| Head | Belt Drive |
| Head Swivel - Left | 90° |
| Head Swivel - Right | 90° |
| Hp | 1 1/2 hp |
| Included Powerfeeds | X-Axis Powerfeed, Y-Axis Powerfeed |
| Includes | (4) Handles, 17 Mm/19 mm Box Wrench, Adjustable Wrench, Cross Point Screw Driver #2, Draw Bar, Flat Blade Screw Driver #2, Flat Way Cover (Rear), Handwheel, Hex Key Set (1.5 To 10 Mm), Knee Crank, Plastic Oil Bottle, Pleated Way Cover (Front) |
| Knee Travel - Maximum | 14" |
| Longitudinal Travel - Maximum | 22 1/4" |
| Max. Distance Spindle To Column | 15 3/4" |
| Max. Distance Spindle To Table | 13 3/4" |
| Motor Hp | 1 1/2 hp |
| Motor Speed - Maximum | 1720 RPM |
| Motor Type | Totally Enclosed Fan Cooled |
| Motor Voltage | 115/230V |
| No. Of Motor Phase | 1 |
| No. Of Spindle Speeds | 5 |
| Number Of Spindle Speeds | 5 |
| Number Of T-slots | 3 |
| Operation | Manual |
| Overall Depth | 55" |
| Overall Dimensions | 55" x 52" x 78" |
| Overall Height | 78" |
| Overall Width | 52" |
| Phase | 1 |
| Powerfeed | X And Y Axis |
| Quill Dia. | 3-3/8" |
| Quill Dia. | 3 3/8" |
| Quill Down Feed Rates | 0.0015, 0.003, 0.006 |
| Ram Swivel - Left | 90° |
| Ram Swivel - Right | 90° |
| Ram Travel - Maximum | 10 1/2" |
| Range Of Spindle Speeds | 240-1550 RPM |
| Right-hand Head Tilt | 90° |
| Series | JVM-836-1 Series |
| Sound Level | 75 dBA |
| Spindle Speed | 240 to 1550 rpm |
| Spindle Speed | 240-1550 RPM |
| Spindle Speed - Maximum | 1550 RPM |
| Spindle Speed - Minimum | 240 RPM |
| Spindle Taper | R-8 |
| Spindle Taper | R8 |
| Spindle To Table | 13-3/4" |
| Spindle To Table | 13 3/4" |
| Spindle Travel | 5" |
| Spindle Travel - Maximum | 5" |
| Spindle-to-column Distance - Maximum | 15 3/4" |
| Spindle-to-column Distance - Minimum | 5 1/4" |
| Spindle-to-table Distance | 13 3/4" |
| Style | Step Pulley R8 |
| T-slot Centers | 2 1/2" |
| T-slots | 3 and 5/8 |
| Table Cross Travel | 9 1/2" |
| Table Depth | 7 7/8" |
| Table Length | 7 7/8" |
| Table Load Capacity | 500 lbs. |
| Table Longitudinal Travel | 22 1/4" |
| Table Longitudinal Travel With Powerfeed | 18" |
| Table Surface Height | Variable |
| Table Width | 35 3/4" |
| Table Work Surface | 7 7/8" x 35 3/4" |
| Table Work Surface | 7-7/8 x 35-3/4" |
| Travel Of Knee | 14" |
| Travel Of Ram | 10 1/2" |
| Voltage | 115/230V |
| Work Table Weight Capacity | 500 lbs. |
Shipping Info:
| Ship weight (kg) | 733.5 |
| Ship height (cm) | 198.12 |
| Ship length (cm) | 139.7 |
| Ship width (cm) | 132.08 |
| HS code | 8465950055 |
| Country of Origin | CN |
Product Variants
| Product | Model | Voltage | Spindle Speed | Phase | Motor Hp | Spindle To Table | Overall Height | Overall Width | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

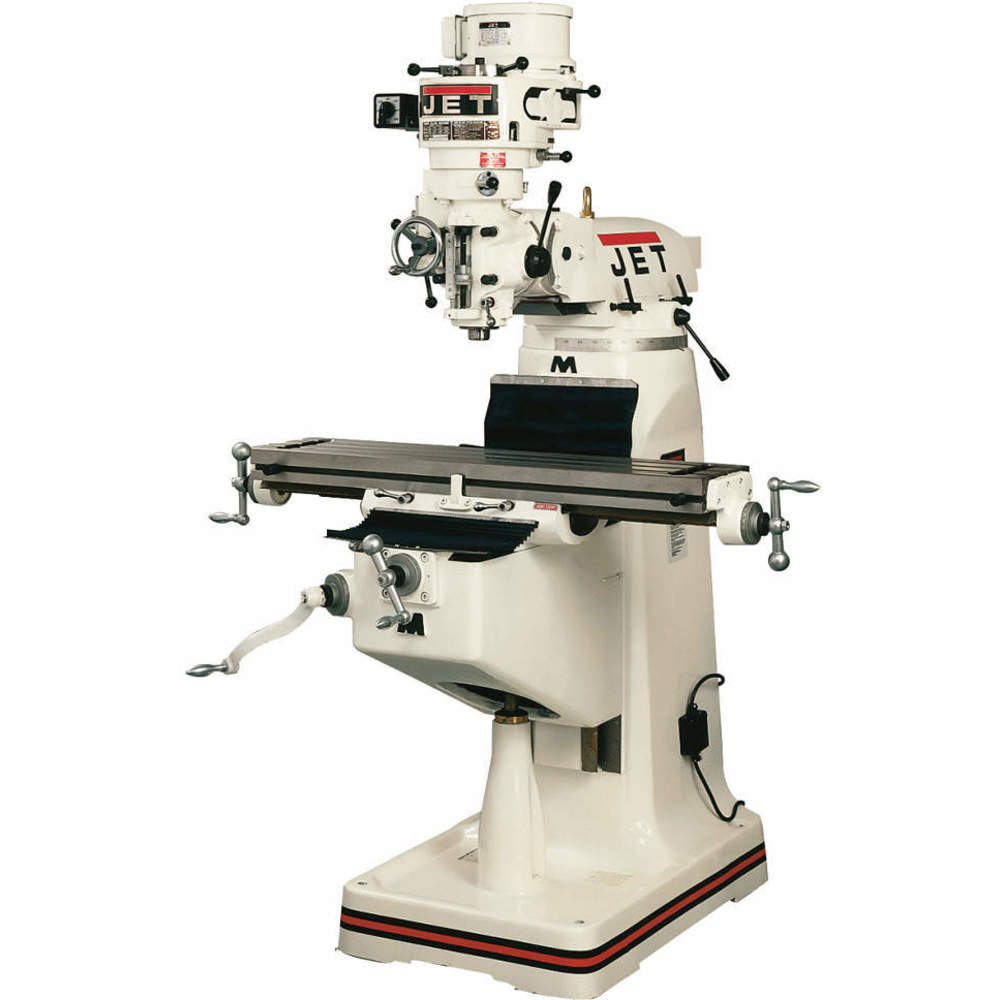

JT9-690089 | 115/230V | 80-2720 RPM | 1 | 2 hp | 17 1/2" | 82" | 64" | 57" | €16,249.54 | |
|
JT9-690156 | 115/230V | 240-1550 RPM | 1 | 1 1/2 hp | 13 3/4" | 78" | 52" | 55" | €16,760.58 | |
 |
JT9-690174 | 230V | 120-1550 RPM | 3 | 1 1/2 hp | 13 3/4" | 78" | 52" | 55" | €17,240.82 |
