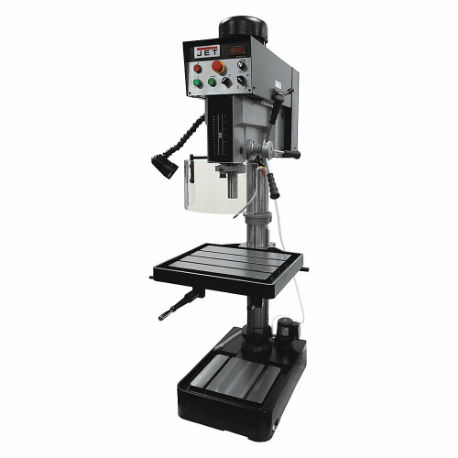

JET TOOLS JT9-354220 JDP-20EVS-110 Floor Drill Press, Belt, Variable, 245 RPM 2000 RPM, 115 VAC /SinglePhase
Get it by Friday, Jul 3
5.00% off
€7,872.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Floor Drill Press |
| Amps | 9.2A |
| Application | Drilling, Tapping |
| Base Dimensions | 27" x 19" |
| Base Length | 27" |
| Base Width | 19" |
| Chuck Size | 5/8" |
| Chuck Style | Keyed |
| Column Dia. | 4 1/2" |
| Coolant System | No |
| Distance Column To Spindle | 10 7/16" |
| Drill Press Application | Drilling |
| Drill Press Type | Floor Stand |
| Drilling Capacity Cast Iron | 1 1/2" |
| Drilling Capacity In Cast Iron | 1 1/2" |
| Drilling Capacity In Stainless Steel | 1" |
| Drilling Capacity In Steel | 1 3/8" |
| Drilling Capacity In Wood | 1 1/2" |
| Drilling Capacity Mild Steel | 1 3/8" |
| Drills To Center Of Circle | 20" |
| Drive Type | Belt |
| Guard Included | Yes |
| Hp | 2 hp |
| Included | Chuck Guard |
| Inverter Phase | 1 |
| Inverter Voltage | 115V |
| Length | 38 1/8" |
| Max. Overall Height | 79 1/2" |
| Max. Spindle Distance To Table | 30 1/4" |
| Max. Spindle Speed | 2000 RPM |
| Max. Spindle To Base Height | 44 1/2" |
| Max. Spindle To Table Height | 30 1/4" |
| Min. Spindle Speed | 245 RPM |
| Motor Hp | 2 hp |
| Motor Phase | 1 |
| Motor Voltage | 115V , 115V AC |
| No. Of Speed | Variable |
| No. Of Spindle Speed | Variable |
| No. Of T-slots | 2 |
| Overall Dimensions | 38.18" x 27.16" x 79.52" |
| Overall Length | 38 1/8" |
| Phase | 1 |
| Power Down Feed Included | No |
| Power Source | Corded |
| Primary Material Application | Metal |
| Quill Dia. | 2 61/64" , 2.953" |
| Radial Arm | No |
| Range Of Spindle Speeds | 65-540/245-2000 RPM |
| Speed Control | Variable |
| Speed Control Type | Mechanical Variable Speed Drive System |
| Spindle Distance To Base | 44 1/2" |
| Spindle Speed | 245-2000 RPM , 65-2000 RPM |
| Spindle Taper | 3MT , MT-3 |
| Spindle To Column Distance | 10 7/16" |
| Spindle Travel | 6" |
| Style | Variable Speed |
| Swing | 20" |
| T-slot Centers | 7 7/16" |
| Table Length | 22" |
| Table Load Capacity | 154 lbs. |
| Table Shape | Rectangular |
| Table Slot | Yes |
| Table Slot Width | 5/8" |
| Table Travel | 20" |
| Table Width | 18 3/4" |
| Tapping Compatible | Yes |
| Tool Weight | 792 lbs. |
| Voltage | 120V AC |
| Work Table Weight Capacity | 154 lbs. |
Shipping Info:
| Ship weight (kg) | 356.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | TW |
Product Variants
| Product | Model | Voltage | Amps | Phase | Speed Control | Swing | Spindle To Column Distance | Hp | Drilling Capacity In Steel | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JT9-354250 | 230V AC | 4.6A | 3 | Variable | 19 3/4" | 26 1/2" | 1 1/2 hp | 1 1/8" | €6,958.63 | |
 |
JT9-354251 | 230V AC | 4.6A | 3 | Variable | 19 3/4" | 26 1/2" | 1 1/2 hp | 1 1/8" | €7,848.96 | |
 |
JT9-354301 | 115/230V AC | 7.6A | 1 | Fixed | 21 7/8" | 10 7/8" | 1 1/2 hp | 1" | €3,731.13 | |
 |
JT9-354300 | 115/230V AC | 9A | 1 | Fixed | 16 7/8" | 8 3/8" | 1 hp | 5/8" | €2,898.44 | |
 |
JT9-354245 | 230V AC | 9.2A | 3 | Variable | 20" | 10.438" | 2 hp | 2" | €11,364.90 | |
|
JT9-JDP20EVST-460-PDF | 460V AC | 9.2A | 3 | Variable | 20" | 10.438" | 2 hp | 2" | €11,474.65 | |
 |
JT9-354240 | 230V AC | 7/6.6A | 3 | Variable | 20" | 10.438" | 2 hp | 1 3/8" | €8,769.48 |
