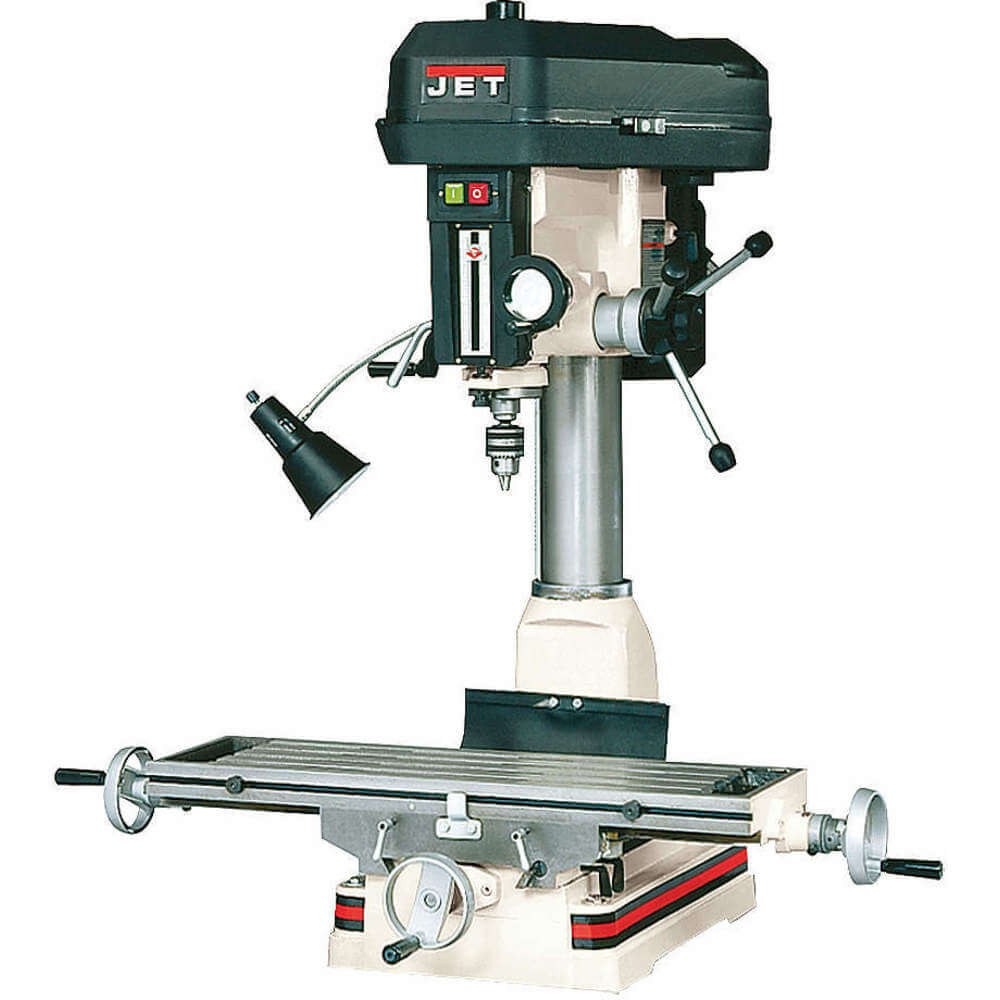

JET TOOLS JT9-350018 Mill Drill Machine 2 Hp
Get it by Friday, Apr 3
5.00% off
€4,548.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mill/Drill Machine |
| Base Dimensions | 15 3/4" x 23 3/4" |
| Chuck Size | 1/2" |
| Column Dia. | 4 1/2" |
| Column Dia. | 4-1/2" |
| Column Material | Cast Iron |
| Column Shape | Round |
| Corded/banded | Corded |
| Corded/wireless | Corded |
| Cross Travel - Maximum | 7" |
| Drilling Capacity - Steel | 1 1/4" |
| Drive Type | Belt Drive |
| End Milling Capacity | 3/4" |
| Face Mill Capacity | 3" |
| Face Milling Capacity | 3" |
| Frequency | 60 Hz |
| Head | Belt Drive |
| Head Material | Belt Drive |
| Head Swivel - Left | 360° |
| Head Swivel - Right | 360° |
| Horsepower | 2 hp |
| Included Powerfeeds | No Powerfeed |
| Includes | Angle Vise |
| Includes Chuck | Chuck Included |
| Includes Lights | Light Not Included |
| Includes Stand | Stand Sold Separately |
| Longitudinal Travel - Maximum | 20 1/2" |
| Max. Distance Spindle To Table | 17 1/2" |
| Motor Hp | 2 hp |
| Motor Speed - Maximum | 3000 RPM |
| Motor Voltage | 115/230V |
| No. Of Motor Phase | 1 |
| No. Of Spindle Speeds | 12 |
| Number Of Spindle Speeds | 12 |
| Number Of T-slots | 4 |
| Operation | Manual |
| Overall Depth | 47" |
| Overall Dimensions | 47" x 40" x 51" |
| Overall Height | 51" |
| Overall Width | 40" |
| Phase | 1 |
| Power Source | Corded |
| Quill Dia. | 3" |
| Range Of Spindle Speeds | 150-3000 RPM |
| Rpm | 150-3000 RPM |
| Series | JMD-18 Series |
| Speed Control | Fixed |
| Spindle Speed | 12 |
| Spindle Speed - Maximum | 3000 RPM |
| Spindle Speed - Minimum | 150 RPM |
| Spindle Taper | R-8 |
| Spindle Taper | R8 |
| Spindle To Table | 18" |
| Spindle Travel | 5" |
| Spindle Travel - Maximum | 5" |
| Spindle-to-table Distance | 17 1/2" |
| Swing | 15-7/8" |
| Swing | 15 7/8" |
| T-slot Centers | 1 13/16" |
| T-slot Width | 5/8" |
| T-slots No. And Size | 5/8" |
| T-slots Number | 4 |
| Table Depth | 9 1/2" |
| Table Length | 9 1/2" |
| Table Longitudinal Travel | 20 1/2" |
| Table Width | 32 1/4" |
| Voltage | 115/230V |
| Work Table Weight Capacity | 400 lbs. |
Shipping Info:
| Ship weight (kg) | 306.9 |
| Ship height (cm) | 129.54 |
| Ship length (cm) | 119.38 |
| Ship width (cm) | 101.6 |
| HS code | 8465950060 |
| Country of Origin | TW |
Product Variants
| Product | Model | Spindle To Table | Drive Type | Voltage | Swing | Spindle Travel | Phase | Motor Hp | Quill Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

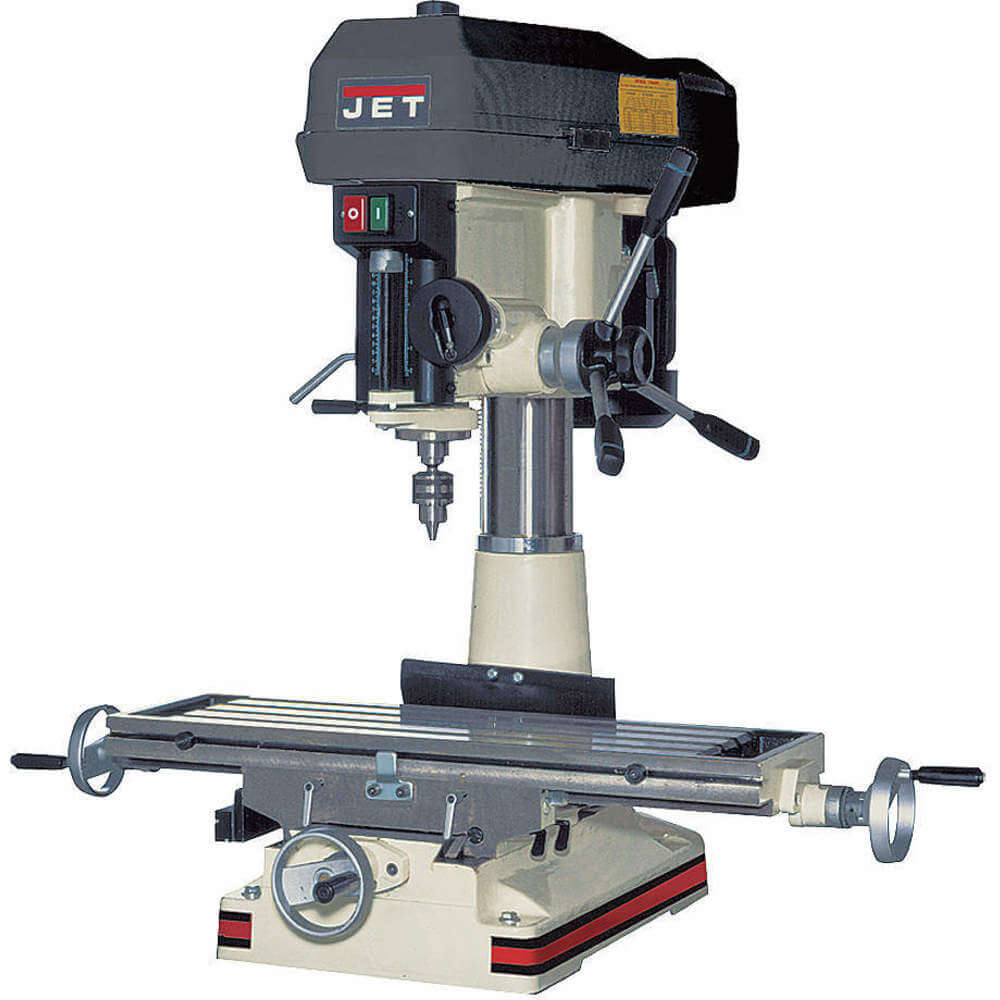

JT9-350020 | 26" | Belt Drive | 115/230V | 15 7/8" | 5" | 1 | 2 hp | 3" | €6,302.78 |
