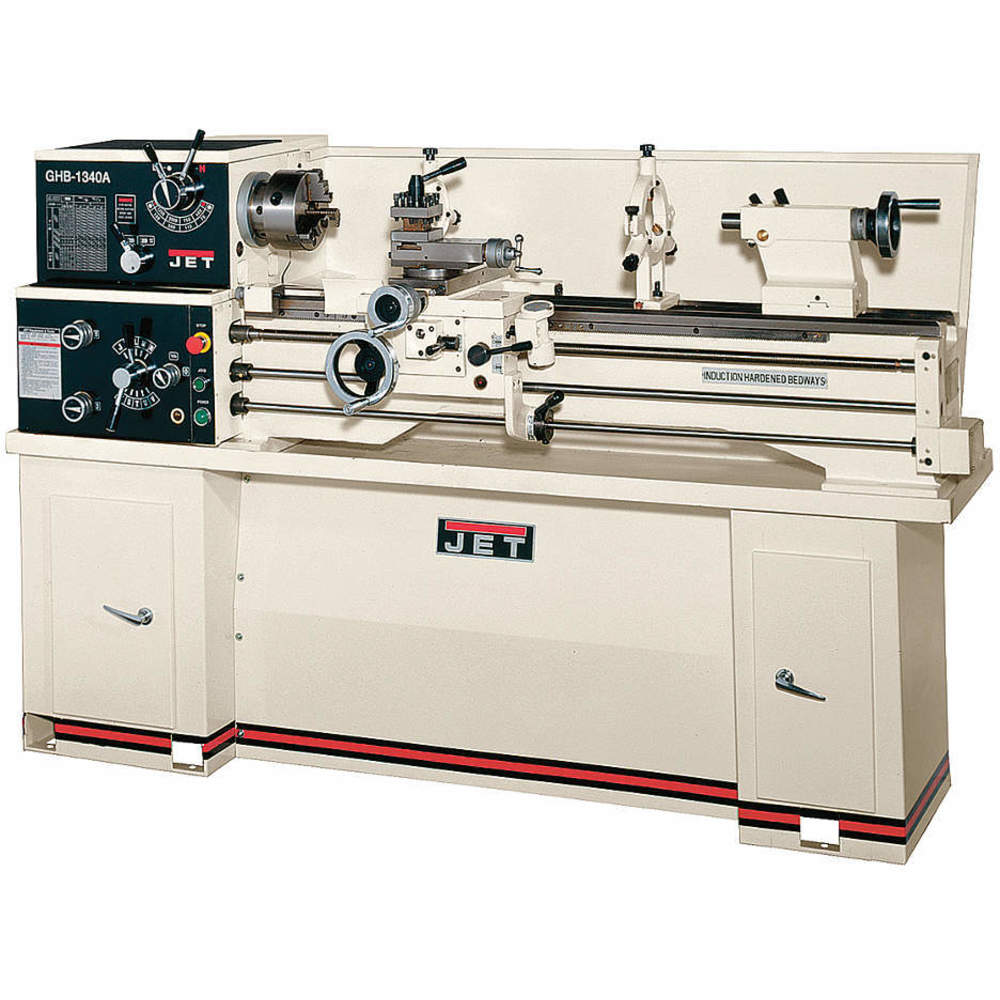

JET TOOLS JT9-321101AK Geared Head Bench Lathe With Stand 1 Ph
Get it by Tuesday, Jul 14
5.00% off
€13,001.38 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Geared Head Bench Lathe |
| Application | Wood Turning |
| Bed Height | 12" |
| Bed Length | 54" |
| Bed Width | 7 3/8" |
| Bed Width | 7-3/8 In. |
| Carriage Travel (in.) | 35 |
| Compound Travel (in.) | 2-11/16 |
| Cross Feed Rates | 0.0012" to 0.0345" |
| Cross Travel (in.) | 6-5/16 |
| Distance Between Centers | 40" |
| Distance Between Centers (in.) | 43 |
| Drive | Geared Head |
| Frequency | 60 Hz |
| Gap Length | 8" |
| Gap Length (in.) | 8 |
| Hp | 2 hp |
| Included | (2) Lifting Blocks, (3) 6" Jaw Chuck (Mounted On Lathe), (3) Cam Locks, (3) Socket Head Cap Screws, (4) 8" Jaw Chuck, 12" Faceplate (Strapped To Container), Follow Rest (Mounted On Lathe), Lifting Hook, Splash Guard, Steady Rest (Mounted On Lathe), Tool Box (Strapped To Container)1 Chip Tray |
| Included Stand | Stand Included |
| Lathe Head Drive | Gear Drive |
| Leadscrew Size | 7/8"-8 |
| Length Of Gap | 8 |
| Longitudinal Feed Rates | 0.0018 to 0.0374 |
| Max. Carriage Travel | 35" |
| Max. Compound Slide Travel | 2 11/16" |
| Max. Cross Feed | 0.013 in./rev. |
| Max. Cross Slide Travel | 6 5/16" |
| Max. Longitudinal Feed | 0.0374 in./rev. |
| Max. Metric Thread | 10 mm |
| Max. Spindle Speed | 2000 RPM |
| Max. Threads Per Inch | 80 |
| Min. Cross Feed | 0.0006 in./rev. |
| Min. Longitudinal Feed | 0.0018 in./rev. |
| Min. Metric Thread | 0.45 mm |
| Min. Spindle Speed | 70 RPM |
| Min. Threads Per Inch | 80 |
| No. Of Inch Threads | 38 |
| No. Of Metric Threads | 23 |
| No. Of Spindle Speed | 8 |
| Nominal Input Voltage | 240V AC |
| Number Of Spindle Speeds | 8 |
| Number Of Threads | 27 mm |
| Overall Depth | 79" |
| Overall Height | 30" |
| Overall Length | 71" |
| Overall Width | 28 1/2" |
| Phase | 1 |
| Product Datasheet | jet-tools-321101ak.pdf |
| Series | GHB-1340A Series |
| Sound Level | 88 dBA |
| Spindle Bore (in.) | 1-3/8 |
| Spindle Bore Size | 1 3/8" |
| Spindle Nose Dia. | 1 3/8" |
| Spindle Nose Taper | MT5 |
| Spindle Speed | 70-2000 RPM |
| Spindle Speed | 70 to 2000 RPM |
| Spindle Taper | 5 MT (3MT) |
| Swing In Gap (in.) | 18-3/4 |
| Swing Over Bed | 13" |
| Swing Over Bed (in.) | 13 |
| Swing Over Cross Slide | 7 25/32" |
| Swing Over Cross Slide (in.) | 7-25/32 |
| Swing Over Gap | 18 3/4" |
| Tailstock Dia. | 1 1/4" |
| Tailstock Spindle Travel | 3 3/4" |
| Tailstock Taper | MT3 |
| Tailstock Taper | 3 MT |
| Tailstock Travel | 3 3/4" |
| Tailstock Travel (in.) | 3-3/4 |
| Thread Range | 0.2 mm to 6 mm |
| Thread Range | 0.2 to 6 mm |
| Voltage | 230V AC |
Shipping Info:
| Ship weight (kg) | 546.75 |
| Ship height (cm) | 76.2 |
| Ship length (cm) | 200.66 |
| Ship width (cm) | 72.39 |
| HS code | 8458190030 |
| Country of Origin | CN |
Product Details:
- Coolant Tank Capacity (3 gal)
