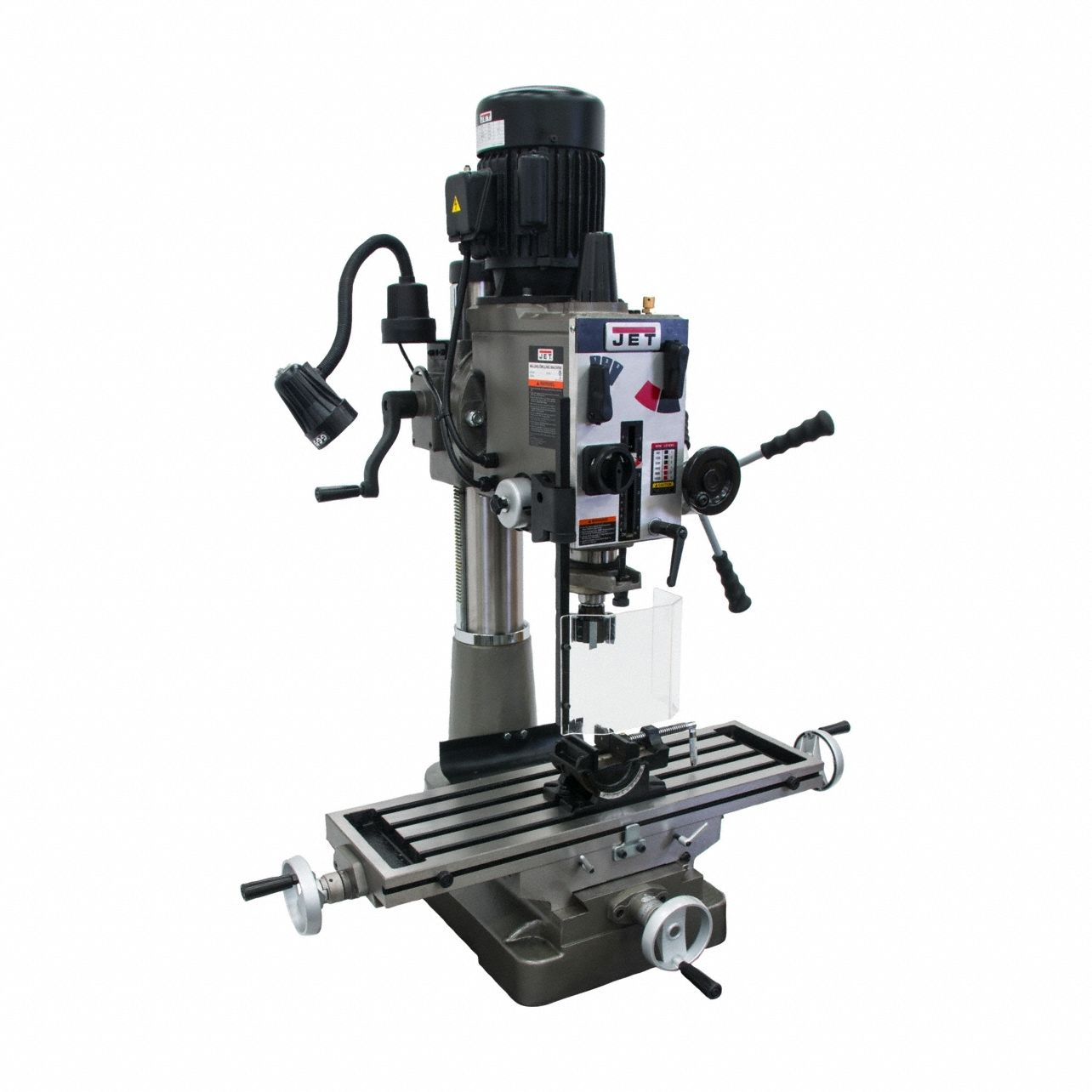

JET TOOLS JT9-351050 Mill Drill Machine, R8, 21 7/8 Inch Size Swing, 1 Phase, 10 1/2 Inch Size Table Surface Ht
Get it by Thursday, Dec 18
10.00% off
€10,872.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Machine |
| Chuck Size | 13 mm |
| Column Depth | 7 7/8" |
| Column Material | Cast Iron |
| Column Shape | Square |
| Column Width | 7 5/8" |
| Cross Travel - Maximum | 8 1/4" |
| Current | 1.2/5.5/11/26A |
| Drilling Capacity - Iron | 1 1/2" |
| Drilling Capacity - Steel | 1 1/4" |
| Drive Type | Gear Drive |
| End Milling Capacity | 3/4" |
| Face Milling Capacity | 4" |
| Frequency | 60 Hz |
| Graduations | 0.001" |
| Head Material | Cast Iron |
| Head Swivel - Left | 90° |
| Head Swivel - Right | 30° |
| Hp | 1 1/2 hp |
| Included Powerfeeds | No Powerfeed |
| Includes | (2) Bolts, (2) Drill Arbors, (2) Flat Washers, (2) Hex Nuts, (3) Handwheels, (3) Hex Wrenches, (4) Small Handles, 17 Mm/19 mm Box Wrench, 3" Angle Vise, 3" Face Mill Cutter Assembly, 3/8 Flat Washer, 3/8 x 1 Socket Hd Cap Screw, Crank Handle, Drill Chuck With 13 Mm/Jt6 Key, Face Mill Cutter Arbor, Mill Drill, Plum Wrench, Product Registration Card, R8-7/16" Draw Bar, Socket Wrench |
| Includes Chuck | Chuck Included |
| Includes Digital Readout | No Digital Readout |
| Includes Power Downfeed | Yes |
| Includes Stand | Stand Sold Separately |
| Longitudinal Travel | 20 1/2" |
| Longitudinal Travel - Maximum | 20 1/2" |
| Motor Speed - Maximum | 1720 RPM |
| Motor Type | Totally Enclosed Fan-Cooled |
| Number Of Spindle Speeds | Variable |
| Number Of T-slots | 4 |
| Operation | Powered |
| Overall Depth | 29" |
| Overall Height | 50" |
| Overall Width | 36" |
| Phase | Single |
| Power Cord Length | 6 ft. |
| Quill Diameter | 3" |
| Series | JMD-45VSPF Series |
| Sound Level | 70 dBA |
| Speed Control | Variable |
| Spindle | R8 |
| Spindle Speed | 50-2500 RPM |
| Spindle Speed - Maximum | 2500 RPM |
| Spindle Speed - Minimum | 50 RPM |
| Spindle Taper | R8 |
| Spindle Travel - Maximum | 4 1/4" |
| Spindle-to-table Distance | 18 1/8" |
| Standards | Csa/Cus |
| Swing | 19 3/4" |
| T-slot Depth | 1" |
| T-slot Width | 5/8" |
| Table Depth | 9 1/2" |
| Table Material | Cast Iron |
| Table Surface Height | 10 1/2" |
| Table Width | 32 1/4" |
| Voltage | 115/230V |
Shipping Info:
| Ship weight (kg) | 372.15 |
| Ship height (cm) | 127 |
| Ship length (cm) | 73.66 |
| Ship width (cm) | 91.44 |
| Country of Origin | TW |
Product Variants
| Product | Model | Voltage | Spindle Speed | Spindle Taper | Swing | Phase | Face Milling Capacity | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JT9-350120 | 115/230V AC | 150-3000 RPM | R8 | 15 7/8" | 1 | 3" | - | - | €11,418.10 | |
 |
JT9-351147 | 115/230V | 65-1550 RPM | R8 | 21" | Single | 4" | 50" | 36" | €13,927.29 | |
 |
JT9-351165 | 115/230V | 50-2500 RPM | R8 | 19 3/4" | Single | 4" | 50" | 36" | €18,636.26 | |
 |
JT9-351045 | 115/230V | 65-1550 RPM | R8 | 19 3/4" | Single | 4" | 50" | 36" | €10,074.60 | |
 |
JT9-351157 | 115/230V | 50-2500 RPM | R8 | 19 3/4" | Single | 4" | 50" | 36" | €19,113.28 | |
|
JT9-351051 | 115/230V | 50-2500 RPM | R8 | 19 3/4" | Single | 4" | 50" | 36" | €13,248.14 | |
 |
JT9-351040 | 115/230V | 130/1550/220/480/65/925 RPM | R8 | 21" | Single | 4" | 42 1/2" | 39 1/4" | €7,107.26 |
