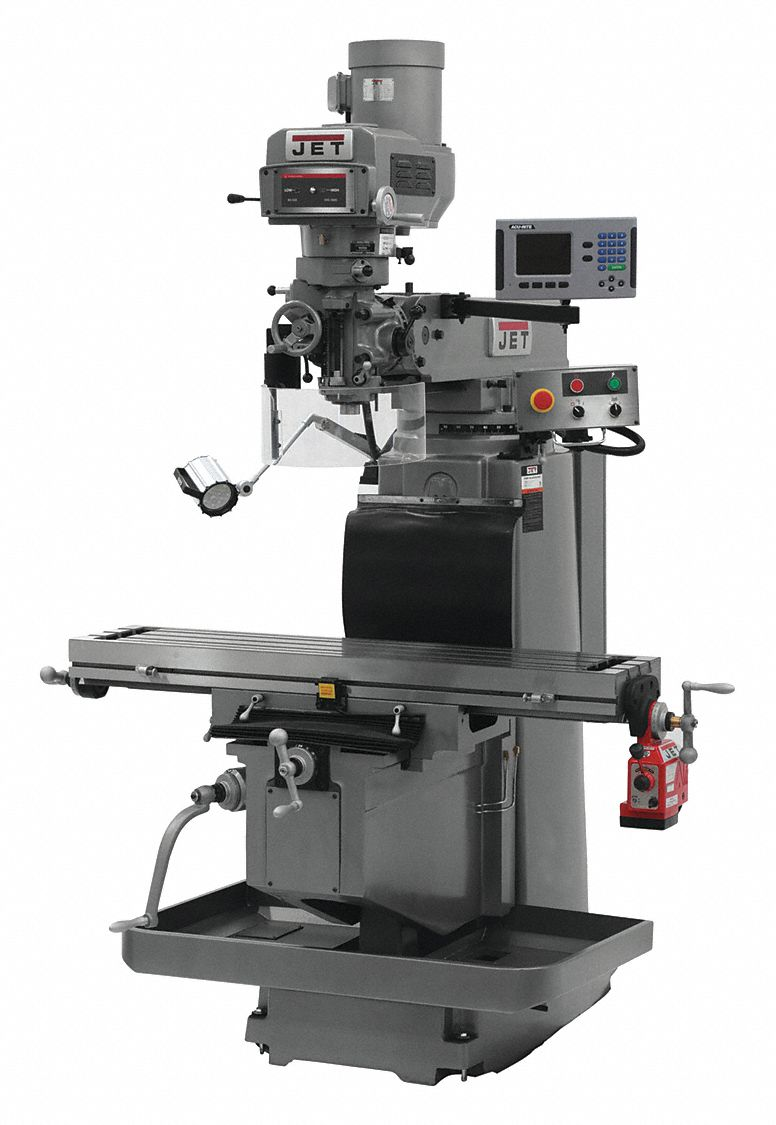

JET TOOLS JT9-698108 Knee/Column Milling Machine, 12 Inch Table Length, 54 Inch Table Width
Get it by Friday, Dec 19
10.00% off
€34,452.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Machine |
| Amps | 6.5/13A |
| Backward Head Tilt Adjustment | 45° |
| Collet Capacity - Maximum | 1" |
| Collet Capacity - Minimum | 1/8" |
| Column Width | 14 1/4" |
| Cross Travel - Maximum | 15 5/16" |
| Digital Readout Included | Acu-Rite 203 |
| Forward Head Tilt | 45° |
| Frequency | 60 Hz |
| Head Swivel - Left | 90° |
| Head Swivel - Right | 90° |
| Head Tilt - Backward | 45° |
| Included Powerfeeds | X-Axis Powerfeed |
| Includes Digital Readout | Digital Readout Included |
| Knee Travel - Maximum | 19 1/4" |
| Left-hand Head Tilt | 90° |
| Length | 79 7/8" |
| Longitudinal Travel | 33 7/8" |
| Longitudinal Travel - Maximum | 33 7/8" |
| Max. Spindle Speed | 3800 RPM |
| Max. Spindle To Column Distance | 27 3/4" |
| Max. Spindle To Table Distance | 23" |
| Min. Spindle Speed | 80 RPM |
| Min. Spindle To Column Distance | 7 1/2" |
| Min. Spindle To Table Distance | 23" |
| Motor Hp | 5 hp |
| Motor Speed - Maximum | 1720 RPM |
| Motor Type | Totally Enclosed Fan-Cooled |
| Number Of Spindle Speeds | Variable |
| Number Of T-slots | 3 |
| Overall Depth | 59" |
| Overall Height | 96 1/2" |
| Overall Width | 82" |
| Phase | 3 |
| Quill Dia. | 4 1/8" |
| Ram Travel - Maximum | 25" |
| Ram Travel Length | 25" |
| Ram Turret Swivel | 90° |
| Right-hand Head Tilt | 90° |
| Series | JTM-1254RVS Series |
| Sound Level | 72 dBA |
| Spindle Taper | R8 |
| Spindle Taper Size | RP_R-8 |
| Spindle Travel - Maximum | 5" |
| Spindle Travel Length | 5" |
| Spindle-to-table Distance | 23" |
| Standards | Csa/Cus |
| T-slot Depth | 3/4" |
| T-slot Width | 5/8" |
| Table Depth | 12" |
| Table Length | 12" |
| Table Load Capacity | 925 lbs. |
| Table Width | 54" |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 1663.2 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 234 |
| Ship width (cm) | 202.88 |
| Country of Origin | TW |
Product Variants
| Product | Model | Table Width | Table Load Capacity | Motor Hp | Longitudinal Travel | Voltage | Min. Spindle Speed | Max. Spindle Speed | Number Of Spindle Speeds | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JT9-698059 | - | - | - | - | - | - | - | - | €37,205.03 | |
 |
JT9-690621 | 50" | 840 lbs. | 3 hp | 35.333" | 230V | 60 RPM | 4500 RPM | Variable | €34,724.86 | |
 |
JT9-691050 | 50" | 840 lbs. | 3 hp | 34 1/4" | 230/460V | 60 RPM | 4200 RPM | Variable | €21,168.33 | |
 |
JT9-690620 | 50" | 840 lbs. | 3 hp | 35.333" | 230V | 60 RPM | 4500 RPM | Variable | €32,843.00 | |
 |
JT9-690680 | 50" | 840 lbs. | 3 hp | 35.333" | 230V | 60 RPM | 4500 RPM | Variable | €38,231.32 | |
 |
JT9-690619 | 50" | 840 lbs. | 3 hp | 35.333" | 230V | 60 RPM | 4500 RPM | Variable | €30,405.42 | |
 |
JT9-690601 | 50" | 840 lbs. | 3 hp | 35.333" | 230V | 60 RPM | 4500 RPM | Variable | €26,300.07 |
