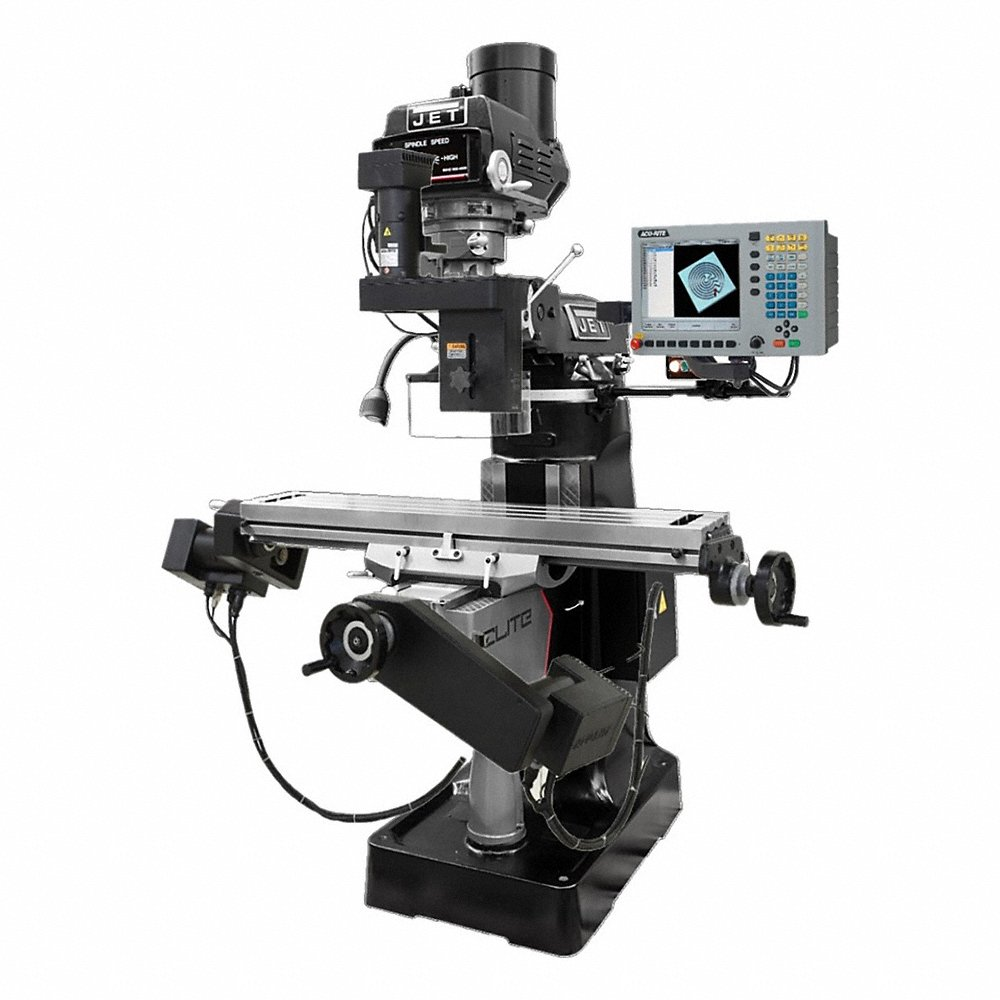

JET ELITE 894040 Knee/Column Milling Machine, 9 Inch Table Length, 49 Inch Table Width | CR4ZQD 20UT61

JET TOOLS JT9-894040 Knee/Column Milling Machine, 9 Inch Table Length, 49 Inch Table Width

Item: CR4ZQDModel: JT9-894040Cross Ref: 20UT61
Check Availability
In Stock

Get it by Tuesday, Dec 23

€75,971.50
10.00% off
€68,374.35 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Machine
Backward Head Tilt Adjustment 45°
Collet Capacity - Maximum 7/8"
Collet Capacity - Minimum 1/8"
Cross Travel 12"
Cross Travel - Maximum 12"
Forward Head Tilt 45°
Head Swivel - Left 90°
Head Swivel - Right 90°
Head Tilt - Backward 45°
Head Tilt - Forward 90°
Horsepower 3 hp
Included Cnc Package 2-Axis
Includes (3) Table Adjustment Handles, 17 Mm/19 mm Box Wrench, Can Black Touch Up Paint, Can Silver Touch Up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Eye Bolt, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 To 10 Mm), Oil Can, Pleated Way Cover
Knee Travel - Maximum 16"
Left-hand Head Tilt 90°
Length 63"
Longitudinal Travel 35"
Longitudinal Travel - Maximum 35"
Max. Spindle Speed 4500 RPM
Max. Spindle To Column Distance 21 2/5"
Max. Spindle To Table Distance 18 3/4"
Min. Spindle Speed 60 RPM
Min. Spindle To Column Distance 6"
Min. Spindle To Table Distance 18 3/4"
Number Of Spindle Speeds Variable
Number Of T-slots 3
Overall Depth 68"
Overall Height 84"
Overall Width 63"
Phase 3
Quill Dia. 3 3/8"
Ram Travel - Maximum 14"
Ram Travel Length 14"
Right-hand Head Tilt 90°
Series ETM-949 Series
Spindle Taper R8
Spindle Taper Size RP_R-8
Spindle Travel - Maximum 5"
Spindle Travel Length 5"
Spindle-to-column Distance - Maximum 21 3/8"
Spindle-to-table Distance 18 3/4"
Standards Csa/Cus
Table Depth 9"
Table Length 9"
Table Load Capacity 550 lbs.
Table Width 49"
Voltage 230V

Shipping Info:

Ship weight (kg) 1170
Ship height (cm)213.36
Ship length (cm)172.72
Ship width (cm)160.02
Country of OriginTW

Product Variants

ProductModelTable WidthTable Load CapacityMotor HpLongitudinal TravelVoltageMin. Spindle SpeedMax. Spindle SpeedNumber Of Spindle SpeedsPrice
JET TOOLS 698059 Knee and Column Milling Machine | CR4ZJJ 56LZ57 JT9-698059--------€37,205.03
JET TOOLS 690621 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJK 48RJ06 JT9-69062150"840 lbs.3 hp35.333"230V60 RPM4500 RPMVariable€34,724.86
JET TOOLS 691050 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJL 56LZ23 JT9-69105050"840 lbs.3 hp34 1/4"230/460V60 RPM4200 RPMVariable€21,168.33
JET TOOLS 690620 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJM 56LZ69 JT9-69062050"840 lbs.3 hp35.333"230V60 RPM4500 RPMVariable€32,843.00
JET TOOLS 690680 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJN 56LZ72 JT9-69068050"840 lbs.3 hp35.333"230V60 RPM4500 RPMVariable€38,231.32
JET TOOLS 690619 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJP 56LZ68 JT9-69061950"840 lbs.3 hp35.333"230V60 RPM4500 RPMVariable€30,405.42
JET TOOLS 690601 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJQ 56LZ67 JT9-69060150"840 lbs.3 hp35.333"230V60 RPM4500 RPMVariable€26,300.07
