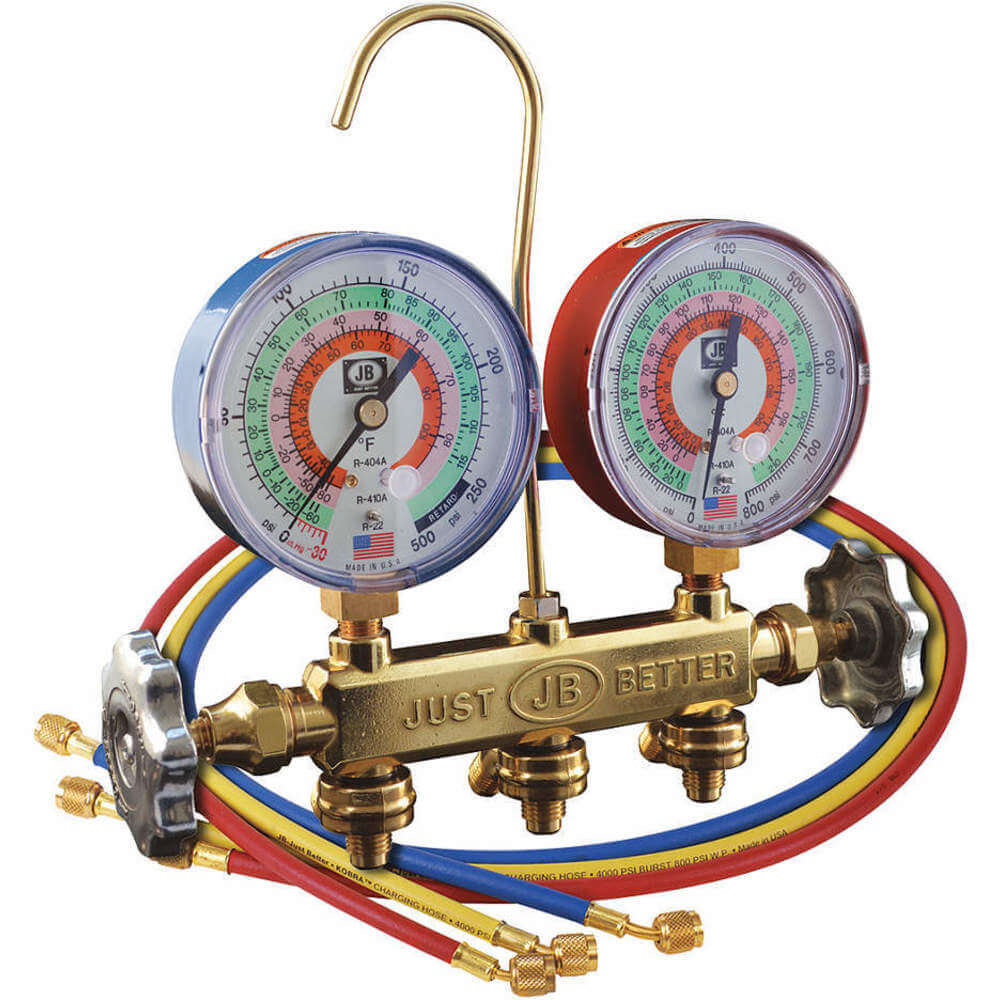

JB INDUSTRIES 22233 Charging Manifold With High Pressure Hose
Item: AH6FPPModel: 22233Cross Ref: 35YX48
7 In Stock
Ships within 2 days via
10.00% off
€245.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Charging Manifold |
| A2l Compatibility | A2L Compatible |
| Accuracy | -1% to +1% |
| Body Material | Brass |
| Calibration Certificate Type | Not Certified |
| Display Illumination | LED |
| Display Type | Analog |
| Features | Metal Handles, Revolving Hose Holders |
| For Refrigerant Type | R-22, R-404A, R-410A |
| Gauge Diameter | 3 1/8" |
| Gauge Type | High Side/Low Side |
| Gauges High Side Red | 0 to 600 |
| Gauges High Side Red | 600 ga. to 0 ga. |
| Gauges Low Side Blue | -30 to 500 |
| Gauges Low Side Blue | -30 ga. to +500 ga. |
| High Side Display Pressure - Maximum | 600 psi |
| High Side Display Pressure - Minimum | 0 psi |
| Hose Connection Thread Direction | Right Hand |
| Hose Length | 5 ft. |
| Includes | Kobra High Pressure Hose Set |
| Includes Gauge Boots | Boot Not Included |
| Includes Sightglass | Sightglass Not Included |
| Includes Vacuum Port | Vacuum Port Included |
| Low Side Display Pressure - Maximum | 500 psi |
| Low Side Display Pressure - Minimum | 30 in. hg |
| Manifold Port Connection Gender | Male |
| Manifold Port Connection Size | 1/4" |
| Manifold Port Connection Thread Direction | Right-Hand |
| Manifold Port Connection Type | SAE |
| Material | Brass |
| Number Of Hoses | 3 |
| Number Of Valves | 2 |
| Overall Depth | 10" |
| Overall Height | 11 1/2" |
| Overall Width | 2 3/4" |
| Pressure Resolution | 1 psi |
| Pressure Units Measured | Psi |
| Product Type | Manifold Gauge Kit |
| Response Time | Instantaneous |
| Series | PATRIOT Series |
| Temperature Resolution | 1°F |
| Temperature Units Measured | °F |
| Use With | R-22, R-404, R-410A |
| Vacuum Port Connection Gender | Male |
| Vacuum Port Connection Size | 1/4" |
| Vacuum Port Connection Thread Direction | Right Hand |
| Vacuum Port Connection Type | SAE |
| Vacuum Port Size | 1/4" |
| Warranty | 1 yr. |
Shipping Info:
| Ship weight (kg) | 1.89 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 32.77 |
| Ship width (cm) | 24.89 |
| Country of Origin | US |
Product Details:
- Gauge Accuracy : +/-1.00%
Product Variants
| Product | Model | Number Of Valves | Number Of Hoses | Hose Length | Use With | Body Material | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |

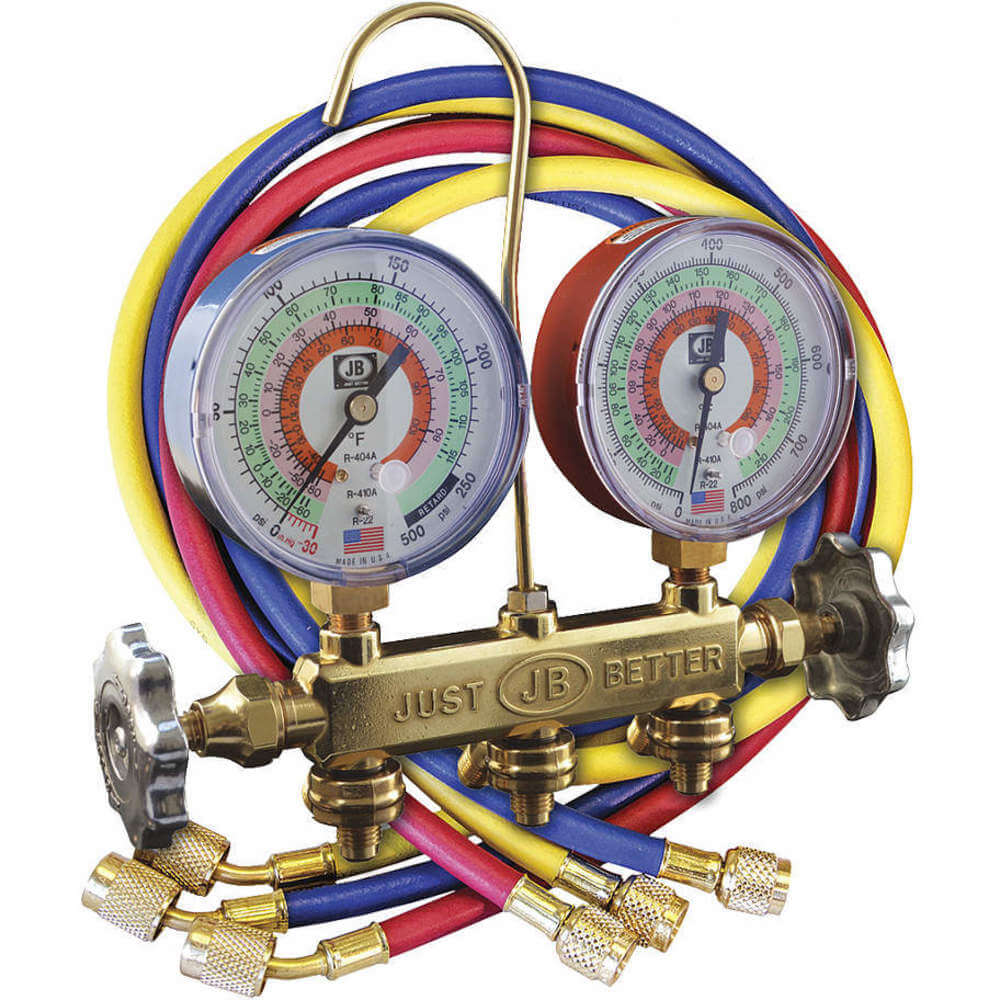

22246 | 2 | 3 | 5 ft. | R-22, R-404, R-410A | Brass | 11 1/2" | 2 3/4" | €325.41 |
