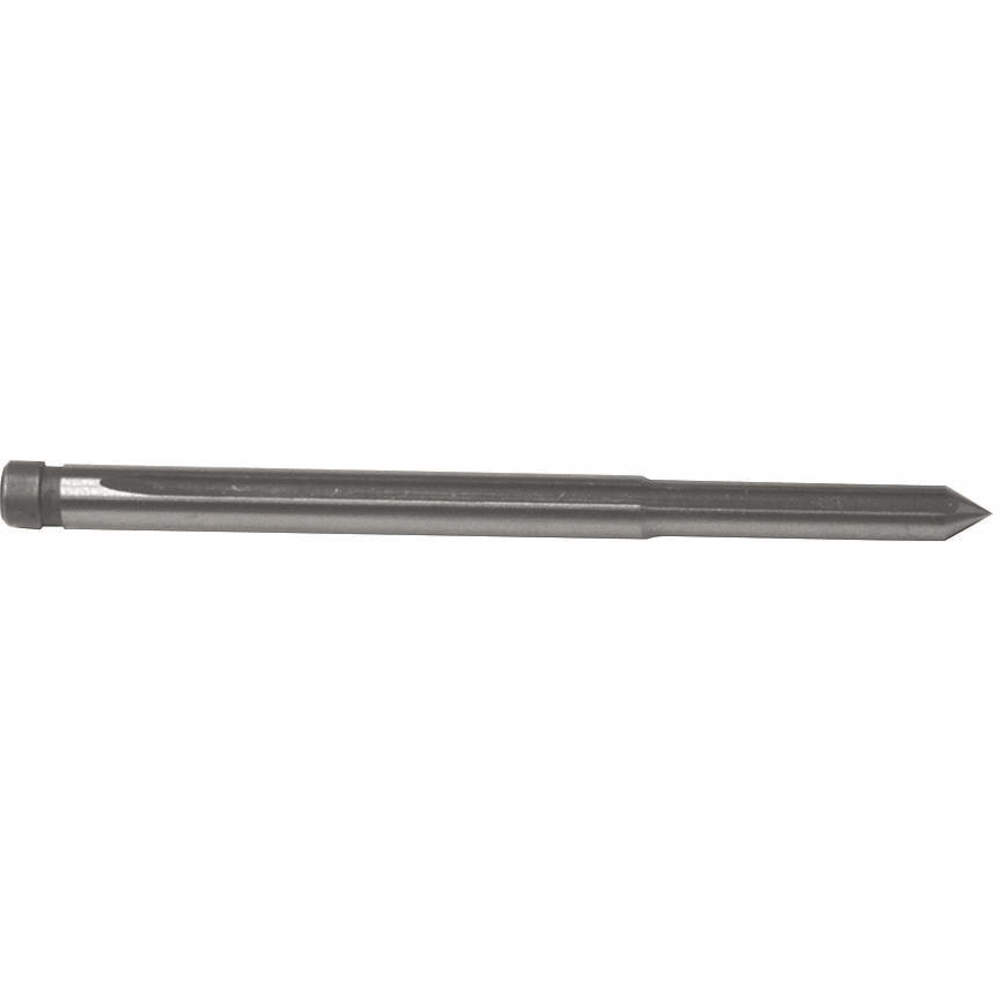

JANCY 16001 Pilot Pin Up To 1/2 Inch Diameter 1 Inch D
Item: AD9ATCModel: 16001Cross Ref: 4NYD3
7 In Stock
Ships within 2 days via
10.00% off
€26.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pilot Pin |
| Compatible With Product Type | Annular Cutter |
| Cutting Depth | 1" |
| End Style | Point |
| For Annular Cutter Shank Diameter | 1/2" |
| For Cutter Material | High Speed Steel |
| For Cutting Depth | 1" |
| For Maximum Annular Cutter Diameter | 1/2" |
| For Use With | Ajmu 137 Pmqw, Ajmu 137 Pmqw Select, Jcm 200 Auto, Jcm 200 Qx, Jcm 200 U, Jcm 256 U, Jhm Magforce, Jhm Shortslugger, Jhm Usa 101, Jme Holemaker III, Jmu 137 Mqw, Jmu 137 Pqw, Jmu 137 2 Qw, Jmu 404 M |
| Magnetism | Magentic |
| Material - Machining | Steel |
| Measurement System | Fractional Inch |
| Overall Pin Length | 3 1/8" |
| Pin Head Diameter | 13/64" |
| Pin Head Height | 3/16" |
| Pin Shank Diameter | 3/16" |
| Pin Shank Length | 2 15/16" |
| Product Design | Standard |
| Shank Dia. | 3/4" |
| Shank Type - Machining | Weldon Flat |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 1.52 |
| HS code | 8466100130 |
| Country of Origin | US |
Product Variants
| Product | Model | Cutting Depth | For Cutting Depth | Overall Pin Length | Shank Dia. | Product Design | End Style | For Cutter Material | For Maximum Annular Cutter Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

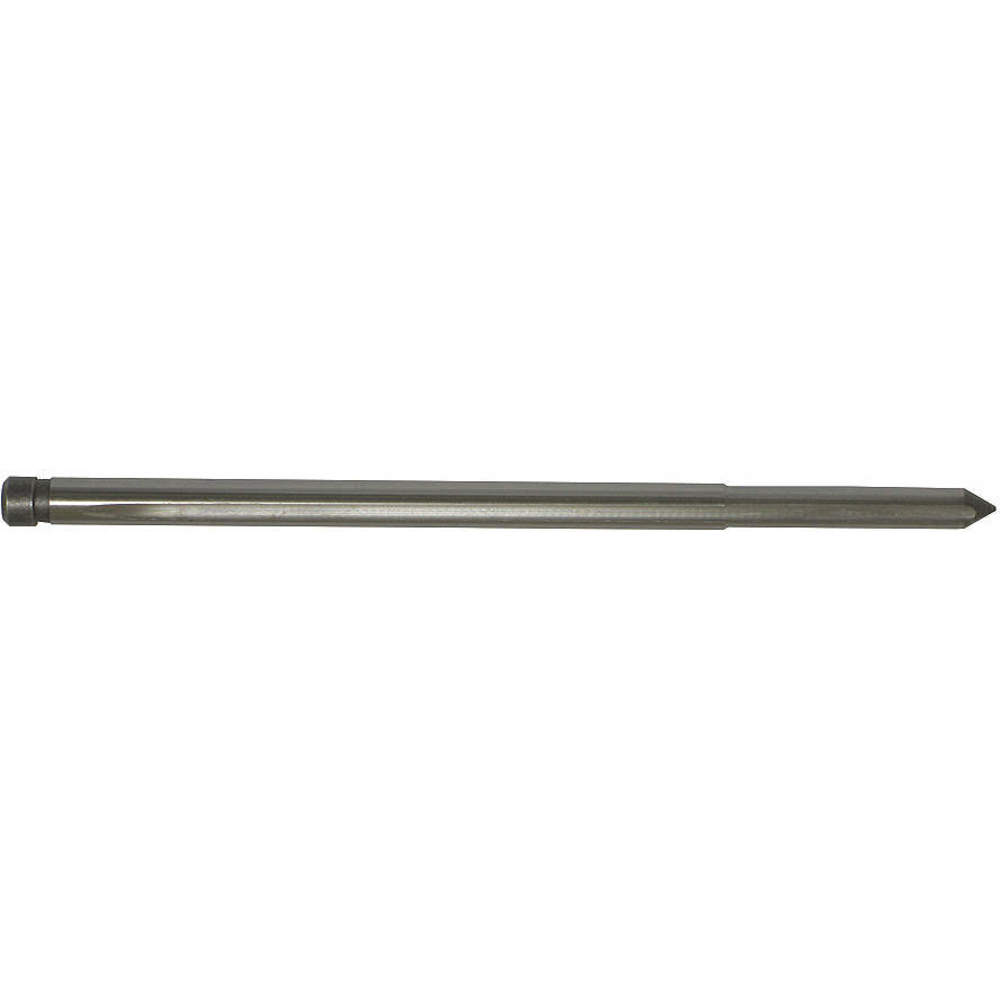

16002 | 2" | 2" | 3 15/16" | 3/4" | Standard | Point | High Speed Steel | 1/2" | €31.31 |
