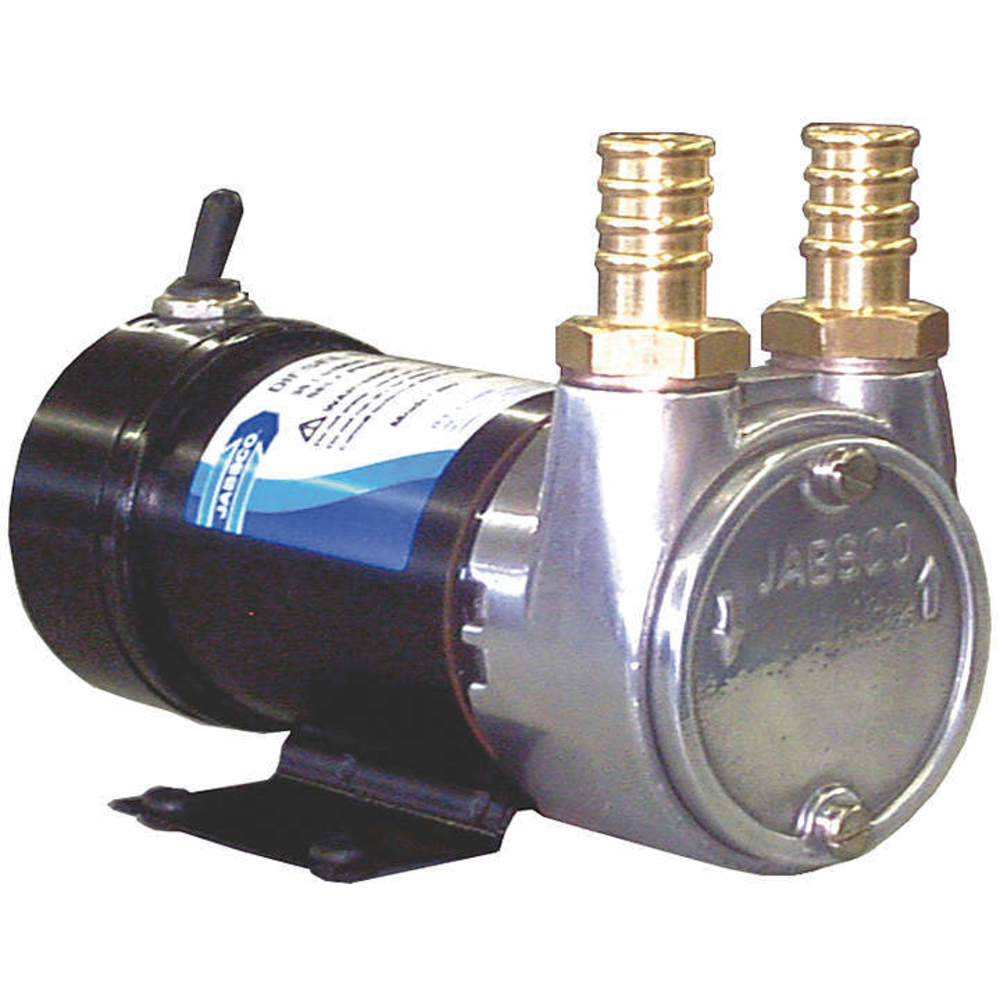

JABSCO 23870-1200 Pump Vane Aluminium Inlet/outlet 3/4 Hb
Item: AD2GVBModel: 23870-1200Cross Ref: 3PER6
7 In Stock
Ships within 2 days via
10.00% off
€620.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Vane Pump |
| Amps | 20A |
| Discharge Size | 3/4" |
| Full Load Amps | 15A |
| Housing Material | Aluminum |
| Hp | 3/20 hp |
| Inlet Size | 3/4" |
| Inlet Type | BSP |
| Inlet/outlet | 3/4" HB |
| Intake | 3/4" BSP |
| Length | 7.7" |
| Max. Flow Rate | 9.5 GPM |
| Max. Flow Rate @ 10 Ft. | 8.5 GPM |
| Max. Flow Rate @ 20 Ft. | 7 GPM |
| Max. Flow Rate @ 5 Ft. | 9 GPM |
| Max. Head | 19 ft. |
| Max. Operating Pressure | 8.7 psi |
| Max. Operating Temp. | 104°F |
| Max. Viscosity | 150 cPS |
| Min. Flow (gpm) | 7 |
| Min. Flow Rate | 9.1 GPM |
| Min. Operating Temp. | -22°F |
| Mounting Type | Motorized Pump Unit |
| Outlet Size | 3/4" |
| Outlet Type | BSP |
| Overall Length | 7.7" |
| Overall Width | 4.1" |
| Port Size | 3/4" |
| Port Type | Hose Adaptors |
| Seal Material | Nitrile |
| Seal Type | Lip |
| Shaft Material | Steel |
| Vane Material | PTFE Filled Ryton |
| Voltage | 12V DC |
| Width | 4.1" |
Shipping Info:
| Ship weight (kg) | 2.81 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 21.59 |
| HS code | 8413600020 |
| Country of Origin | MX |
Product Details:
Jabsco 23870-1200 fuel transfer pump is ideal for excavators, cranes, agricultural machines, road rollers, pavers, generators and helicopters. It is designed to refuel small diesel-powered vehicles with tank sizes up to 200 litres from drums.
Features:
- Jabsco 23870-1200 fuel transfer pump can be operated at temperatures ranging from -30 to 40 degrees C.
- It features an aluminium pump body for resisting corrosion.
- This fuel transfer pump has a nitrile lip seal to prevent fuel leakage.
- It features a steel shaft for structural rigidity and long service life.
Frequently Asked Questions:
Q. What safety precautions should be taken while operating this fuel transfer pump?
A. Do not use it with gasoline, petrol or fuel having flashpoints below 37 degrees C.
Q. What is the duty cycle of Jabsco 23870-1200 fuel transfer pump?
A. It has a duty cycle of 25 minutes at 40 degrees C.
