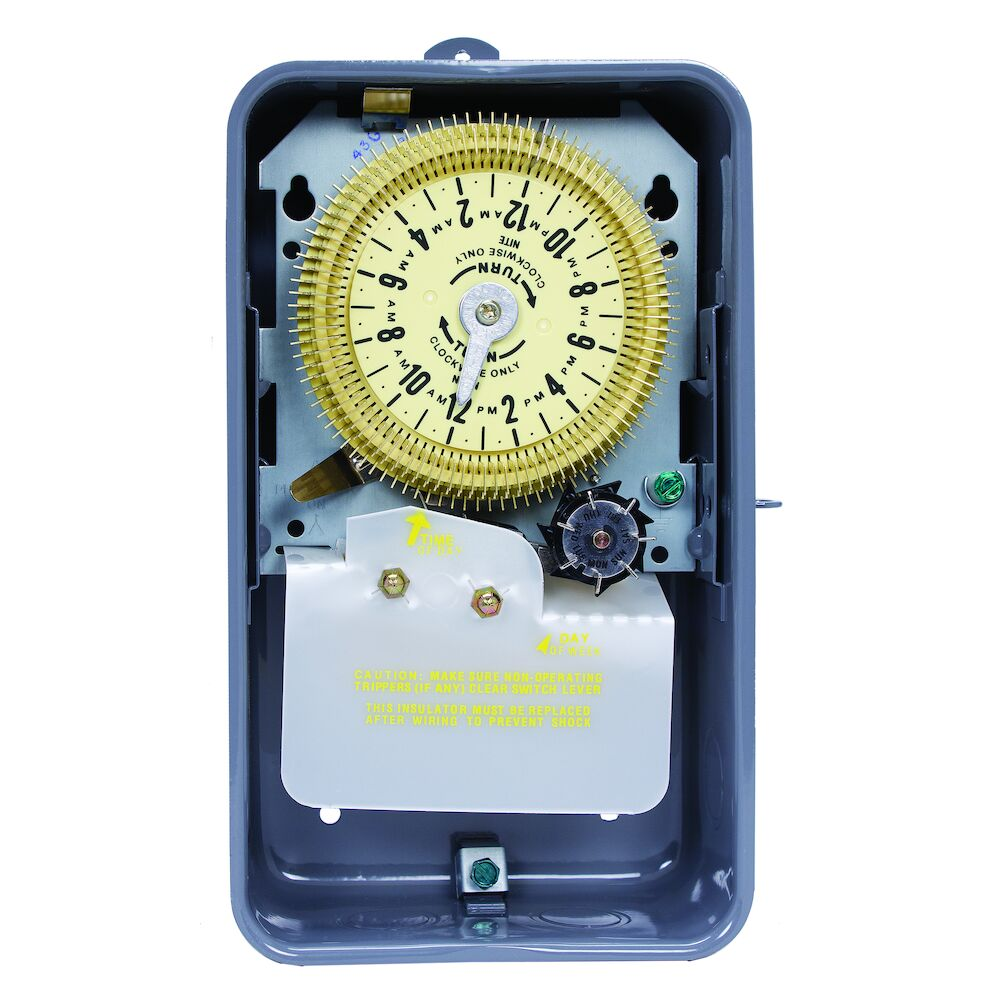

INTERMATIC T1975ER Mechanical Time Switch With Skip-a-Day, 480V AC, 60Hz
Get it by Monday, Aug 17
€435.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mechanical Timer |
| Amps Rating | 20A |
| Application | Blower, Dairy Equipment, Fan, Filter, Heater, Poultry Fogger, Poultry Feeder, Lighting, Various And Electrical Load |
| Comm Code Enhanced | 44100 |
| Connection Type | Screw Terminal |
| Contact Form | 1NO-1NC, SPDT |
| Dimension S | 10 1/8" x 6 1/2" x 3 5/8" |
| Family Series | Intermatic Relays, T1970 Series |
| Finish | Gray |
| Hp | 1 hp |
| Material | Steel |
| Max. Time | 24 hrs. |
| Mounting Type | Wall |
| No. Of Poles | 1 |
| Product Datasheet | intermatic-t1975er.pdf |
| Reserve Power | No |
| Series | T1970 Series |
| Termination | Screw Terminals |
| Time Setting | 15 min. to 24 hrs. |
| Timer | 0 min. to 30 min., 0 min. to 60 min., 0 min. to 100 min. |
| Timing Range | 15 |
| Type | 24 Hour With Day Omit |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 25.72 |
| Ship length (cm) | 9.21 |
| Ship width (cm) | 16.51 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Type | Dimension S | Timing Range | Comm Code Enhanced | Time Setting | Max. Time | Contact Form | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

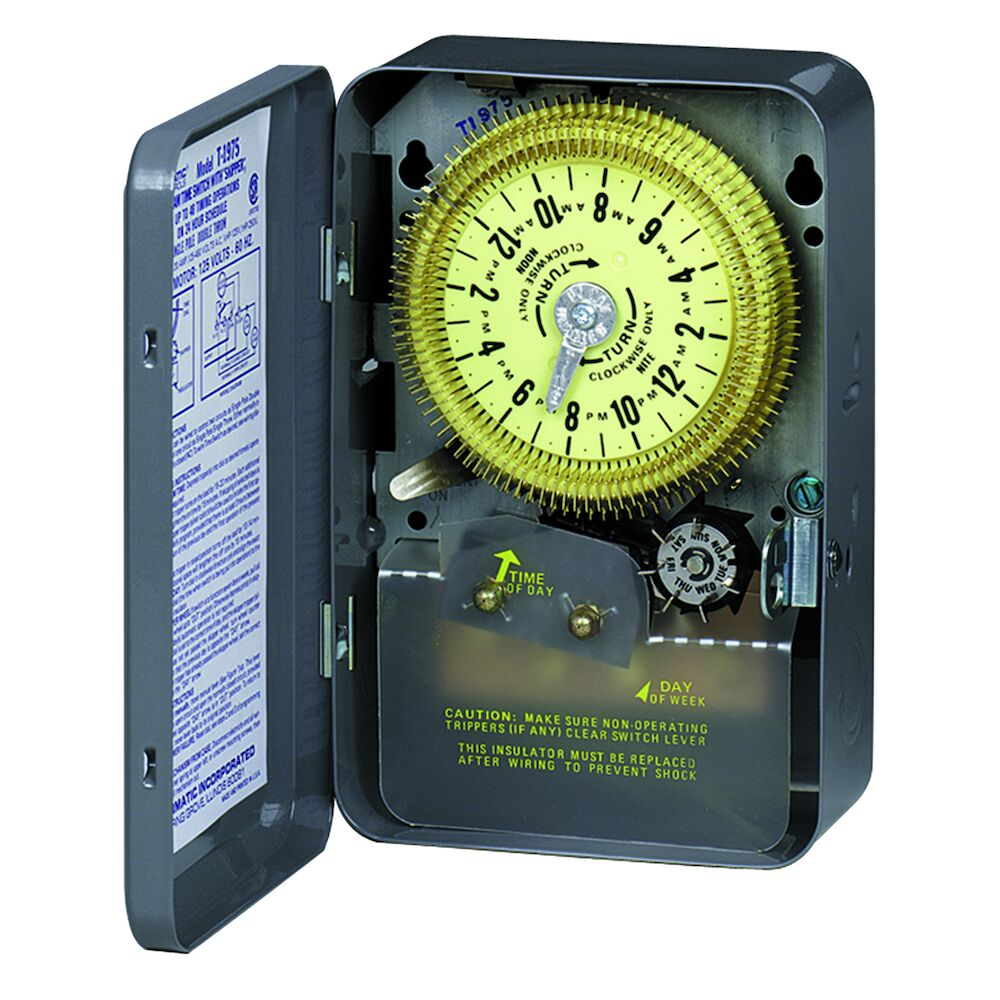

T1975E | 24 Hrs. With Day Omit | 7 7/8" x 5 1/8" x 3 7/16" | 15 | 44100 | 15 min. to 24 hrs. | 24 hrs. | 1NO-1NC, SPDT | T1970 Series | €352.92 |
