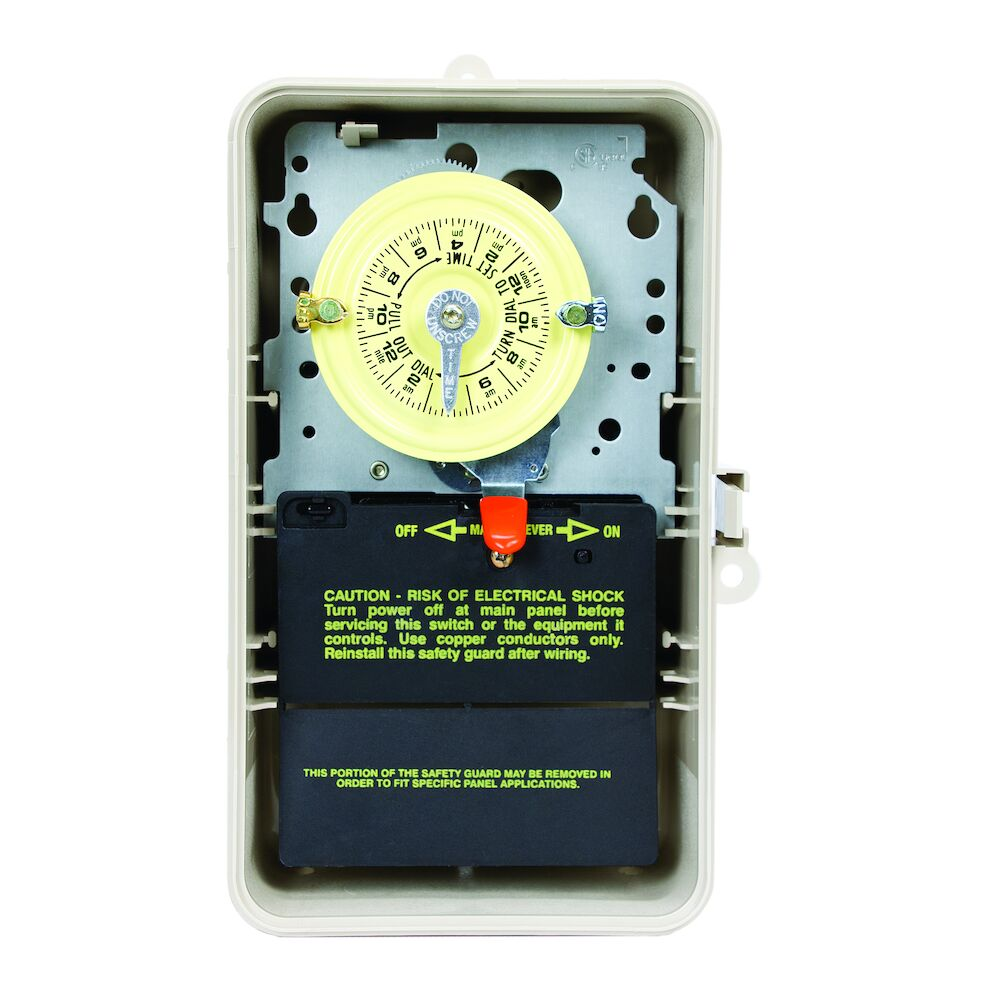

INTERMATIC T104P3 Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, 208-277V
Get it by Tuesday, Aug 18
€150.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mechanical Timer |
| Amps Rating | 40A |
| Application | Pump, Lighting, Heater |
| Comm Code Enhanced | 44300 |
| Connection Type | Screw Terminal |
| Contact | 2NO |
| Contact Form | 2NO/DPST |
| Dimension S | 10" x 6.5" x 4" |
| Family Series | Intermatic Relays, T100 Series |
| Hp | 5 hp |
| Material | Plastic |
| Mounting Type | Wall |
| No. Of Poles | 2 |
| Power Rating | 2 HP at 120V AC, 5 HP at 240V AC (Motor), 1000 VA (Pilot Duty), 3 W |
| Product Datasheet | intermatic-t104p3.pdf |
| Reserve Power | No |
| Series | T100 Series |
| Switch Type | DPST |
| Termination | Screw Terminals |
| Time Range 10 Hrs. | 0 hr. to 1 hr. |
| Timer | 0 hr. to 5 hrs., 0 hr. to 10 hrs., 0 hr. to 24 hrs. |
| Type | 24 hrs. |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 16.51 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Height | Comm Code Enhanced | Switch Type | Contact Form | Series | Dimension S | Type | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
T101B | - | 44100 | SPST | 1NO/SPST | T100 Series | 5" x 3" x 7.75" | Electro Mechanical | - | €126.92 | |
 |
T101P201 | 107.95 mm | 44300 | SPST | 1NO/SPST | T100 Series | 10" x 6.5" x 4" | Heavy Duty | 6.5" x 4" x 10" | €262.59 | |
 |
T101P3 | - | - | - | - | - | - | - | - | €131.52 | |
 |
T101R201 | 101.6 mm | 44300 | SPST | 1NO/SPST | T100 Series | 10 1/8" x 6 1/2" x 3 5/8" | Heavy Duty | - | €262.59 | |
 |
T101R3 | - | 44300 | SPST | 1NO/SPST | T100 Series | 10 1/8" x 6 1/2" x 3 5/8" | Heavy Duty | - | €158.77 | |
 |
T102P | - | 44100 | SPST | 1NO/SPST | T100 Series | 5 1/2" x 3 3/8" x 9 3/8" | - | 6.5" x 4" x 10" | €199.65 | |
 |
T102R | - | 44300 | SPST | 1NO/SPST | T100 Series | 5.5" x 4" x 9.375" | - | - | €199.65 |
