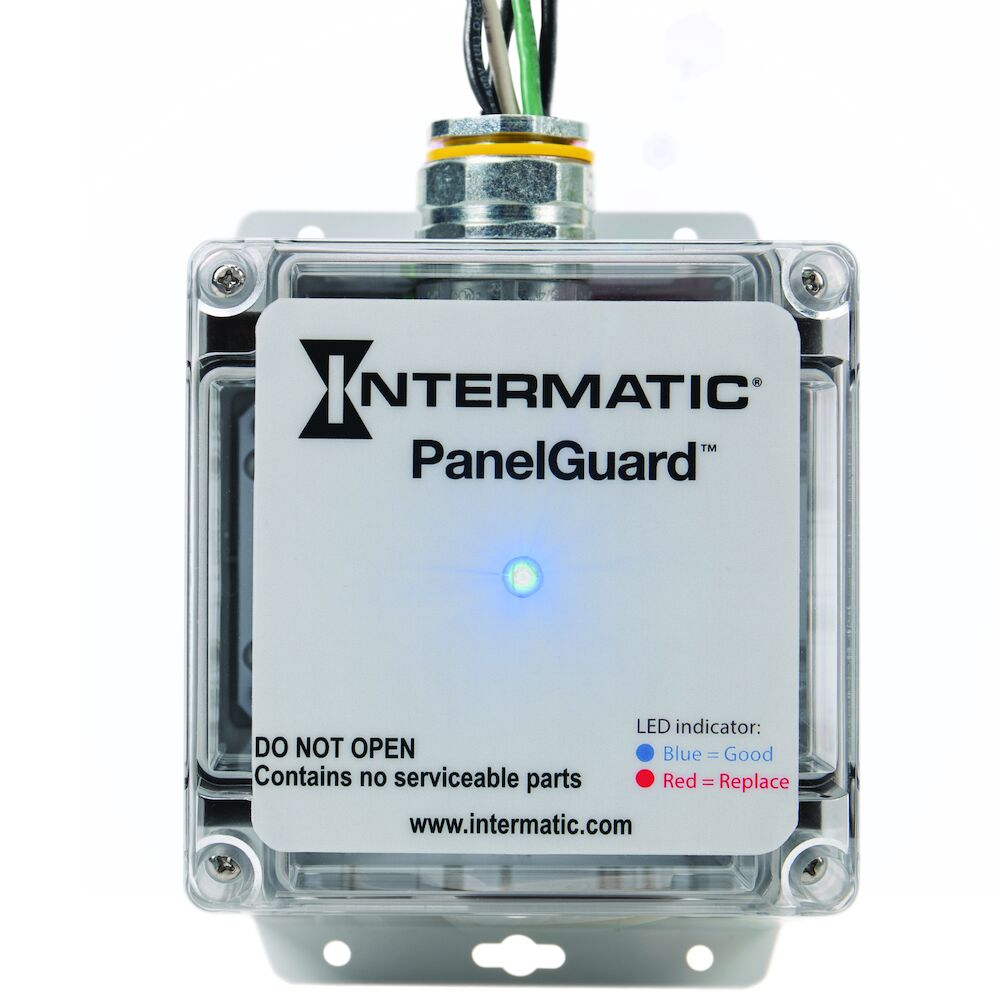

INTERMATIC L5F23Y2DG2 Surge Protective Device, 4 Mode, 277/480V AC, 3 Phase Y, Type 2
Get it by Friday, Aug 14
€637.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Surge Protective Device |
| Color | Gray |
| Comm Code Enhanced | 57430 |
| Dimension S | 4.81" x 3.54" x 6.46" |
| Enclosure Type | NEMA 4X, IP65 |
| Family Series | Intermatic |
| Frequency | 50/60 Hz |
| Indicator Type | Blue LED, Red LED |
| Modes Of Protection | L-G, L-L, L-N, N-G |
| No. Of Wire | 4+G |
| Nominal Discharge Amps | 20 kA |
| Peak Surge Amps | 50 kA |
| Phase | 3 |
| Product Datasheet | intermatic-l5f23y2dg2.pdf |
| Short Circuit Amps Rating | 200 kA |
| Terminal Type | Lead Wire |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 16.41 |
| Ship length (cm) | 8.99 |
| Ship width (cm) | 12.22 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Nominal Discharge Amps | Frequency | Comm Code Enhanced | Family Series | Phase | Color | Peak Surge Amps | No. Of Wire | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| L5F21S1DG1 | - | - | 57430 | Intermatic | - | - | - | - | €567.83 | |
| L5F21S1DG2 | - | - | 57430 | Intermatic | - | - | - | - | €505.06 | |
| L5F23Y1DG1 | 20 kA | 50/60 Hz | 57430 | Intermatic | 3 | Gray | 50 kA | 4+G | €522.81 | |
| L5F23Y1DG2 | 20 kA | 50/60 Hz | 57430 | Intermatic | 3 | Gray | 50 kA | 4+G | €637.92 | |
| L5F23Y2DG1 | 20 kA | 50/60 Hz | 57430 | Intermatic | 3 | Gray | 50 kA | 4+G | €546.25 |
