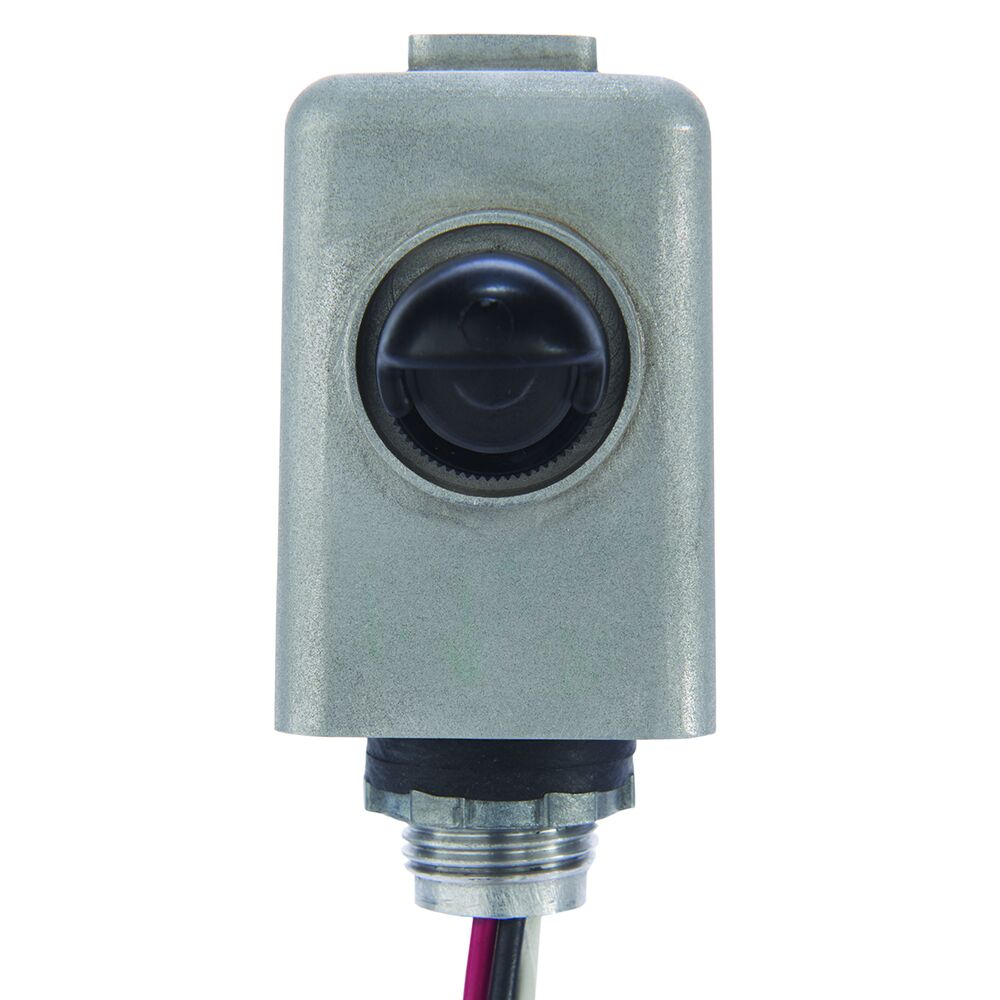

INTERMATIC K4421M Photocontrol 120vac 1800w Stem
Item: AF7EEPModel: K4421MCross Ref: 20XF01
7 In Stock
Ships within 2 days via
10.00% off
€39.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photocontrol |
| Activation Off | 3 fC to 15 fC |
| Activation On | 1 fC to 5 fC |
| Applications | Outdoor Lighting Control |
| Color | Gray |
| Depth | 1 9/16" |
| Description/special Features | Built-In Delay To Prevent Unwanted Off Switching |
| Enclosure Type | Raintight |
| Expected Lifetime Operations | 3650 |
| Foot Candles Off | 3 to 15 |
| Foot Candles Off | 3 fC to 15 fC |
| Foot Candles On | 1 to 5 |
| For Use With | Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting |
| Housing Material | Cast Iron |
| Includes | Locking Nut, Washer Gasket |
| Length | 3" |
| Length (straight Wireway) | 3" |
| Max. Ballast Amps | 8.3 |
| Max. Ballast Amps | 8.3A |
| Max. Incandescent Amps | 15A |
| Max. Incandescent Amps | 15 |
| Max. Wattage | 1800 W |
| Mounting Type | Stem |
| Nema Rating | Non-NEMA |
| Photo Control Switch Type | Mechanical Bimetal |
| Photocell Type | Cadmium Sulfide |
| Photocontrol Photocell Type | Cadmium Sulfide |
| Photocontrol Sensor Location | Side |
| Photocontrol Style | Stem Mount |
| Photocontrol Switch Type | Mechanical Bimetal |
| Photocontrol Type | Thermal |
| Sensor Time Delay | 30 sec. to 90 sec. |
| Setting | Dusk To Dawn |
| Usage Environments | Outdoor |
| Voltage | 120V AC |
| Width | 1 9/16" |
| Wiring Option | Wire Leads |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 3.97 |
| Ship width (cm) | 3.97 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Details:
- Special Features: Built-In Delay to Prevent Unwanted OFF Switching
