INTERMATIC IOS-HB-U Commercial Grade High Bay Ceiling Mount PIR Occupancy Sensor, White
Get it by Monday, Aug 17
€82.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Occupancy Sensor |
| Ambient Light Sensor | Yes |
| Application | Commercial, Hospital, Industrial/Warehouse, Nursing Home, Manufacturing, Office, Rehabilitation Center, School |
| Area Coverage | 1200 sq. ft. (Lens 1)/2800 Sq Ft (Lens 2) at 15 to 50 Ft Mounting Height |
| Comm Code Enhanced | 74310 |
| Coverage | 1200 sq. ft., 2800 sq ft |
| Coverage Area (sq Ft) | 2800 sq. ft. |
| Delay Time | 15 sec. to 30 min. |
| Family Series | Intermatic Switches, IOS Series |
| Mounting Type | Ceiling |
| Product Datasheet | intermatic-ios-hb-u.pdf |
| Response Frequency | 60 Hz |
| Sensor Type | Pir |
| Series | IOS Series |
| Size | 4" x 2.75" |
| Temp. Rating | 0°C to 55°C |
| Type | High Bay |
| Voltage Ac | 120/277V AC |
| Voltage Rating | 120-277V AC |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 6.99 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Mounting Type | Coverage | Sensor Type | Comm Code Enhanced | Dimension S | Color | Delay Time | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

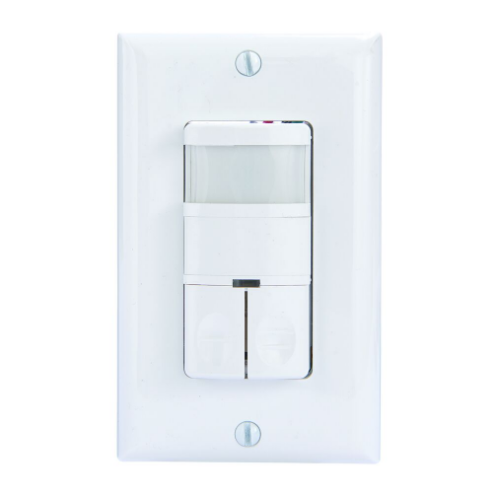

IOS-DDR-WH | Wall | 180 deg./1200 sq. ft. | Passive Infrared | 42190 | 1.63" x 1.69" x 1.3" | - | 15 sec. to 30 min. | IOS Series | €81.63 | |
 |

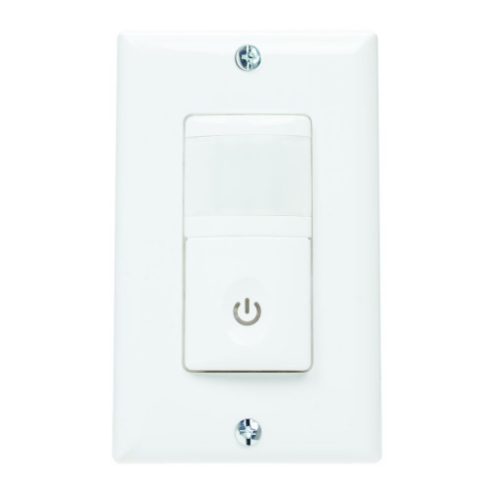

IOS-DPBV-WH | Wall | 980 sq. ft. | Passive Infrared | 74310 | 1 5/8" x 1 7/16" x 2 3/4" | White | 15 sec. to 30 min. | IOS Series | €24.92 |
