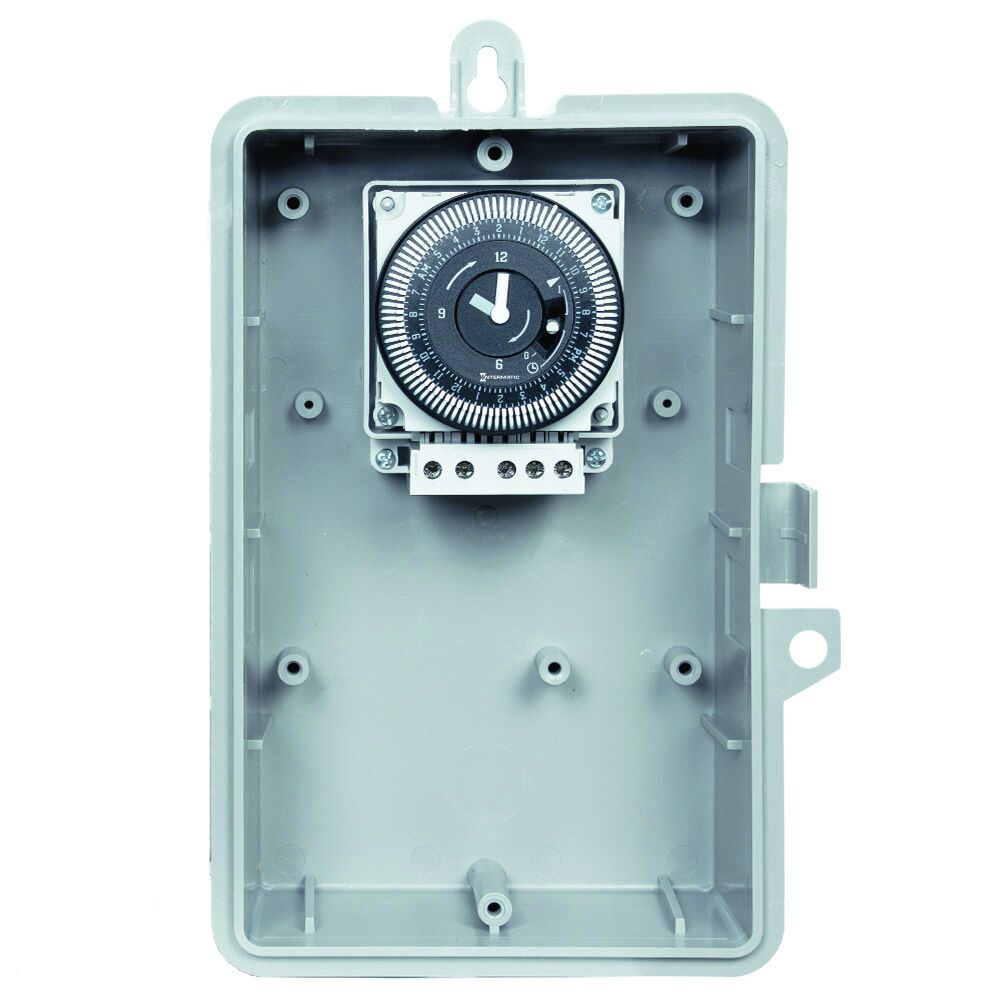

INTERMATIC GMXST-I-240 Electromechanical Timer 24-hour Spdt
Item: AF7EGCModel: GMXST-I-240Cross Ref: 20XF37
7 In Stock
Ships within 2 days via
10.00% off
€168.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electromechanical Timer |
| Amps | 21A |
| Applicable Ac Voltage Ranges | 208/240V AC |
| Application | Hvac, Machinery |
| Applications | Refrigeration Merchandiser |
| Body Color | Gray |
| Body Material | Plastic |
| Clock Drive Type | Synchronous |
| Color | Gray |
| Compatible Lighting | Compact Fluorescent, Fluorescent, Incandescent, LED |
| Contact Form | SPDT |
| Contact Hp @ 120v | 1 hp |
| Contact Hp @ 120v | 1 |
| Contact Hp @ 240v | 2 |
| Contact Hp @ 240v | 2 hp |
| Current Rating | 21A |
| Day Skipper | No |
| Depth | 4 5/16" |
| Description/special Features | True Clock Face |
| Display Qty | 1 |
| Enclosure Type | Polycarbonate |
| Features | Finger-Safe Terminals, Manual 3-Way Override, True Clock Face |
| Finish | Gray |
| Has Captive Trippers Cvl | Yes |
| Has Finger Safe Terminals Cvl | Yes |
| Has Override Switch Cvl | Yes |
| Has Realtime Clock Face Cvl | Yes |
| Height | 11 3/4" |
| Horsepower @ 120v - Maximum | 1 hp |
| Horsepower @ 240v - Maximum | 2 hp |
| Indoor/outdoor | Indoor |
| Indoor/outdoor Usage | Indoor |
| Length | 11 4/5" |
| Max. On/off Cycles | 48 |
| Max. Time Setting | 23.75 hrs. |
| Min. Time Setting | 15 min. |
| Minimum Cycle Time | 15 min. |
| Mounting | Surface |
| Mounting Options | Wall |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Number Of Poles | 1 |
| Number Of Trippers - Maximum | 96 |
| Number Of Trippers Included | 96 |
| Operating Temp. | -40°F to +185°F |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -40°F |
| Overall Depth | 3 3/4" |
| Overall Height | 10" |
| Overall Width | 6 1/2" |
| Power Consumption Max | 1 VA |
| Product Type | Timer |
| Series | GMX Series |
| Time Setting - Max. | 24 hrs. |
| Time Setting - Maximum | 24 hrs. |
| Timer Extra Features | Manual Override |
| Timing Interval | 15 min. |
| Voltage | 240V AC |
| Width | 7 5/16" |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 16.51 |
| HS code | 9107008000 |
| Country of Origin | MX |
Product Details:
- Special Features: True Clock Face
Product Variants
| Model | Max. Time Setting | Height | Depth | Number Of Poles | Operating Temp. | Day Skipper | Indoor/outdoor | Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GMXQT-O-120 | 23 hr., 45 min. | 11 4/5" | 4.3" | 2 | -4°F to +131°F | No | - | SPDT | €159.48 | |
| GMXST-O-120 | 23.75 hrs. | 11 3/4" | 4 5/16" | 1 | -40°F to +185°F | No | Outdoor | SPDT | €98.46 | |
| GMXSW-I-120 | 6.917 Days | 11 3/4" | 4 5/16" | 1 | -40°F to +185°F | Yes | Indoor | SPDT | €305.58 |
