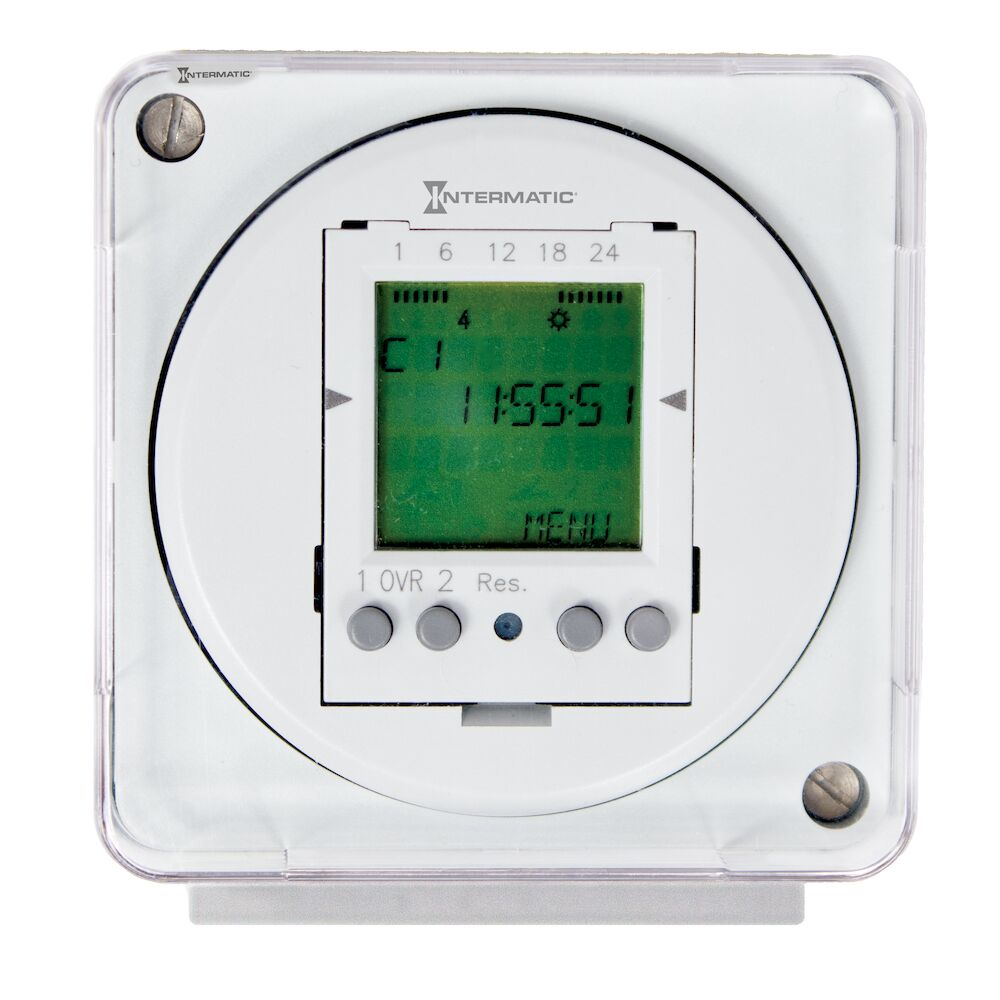

INTERMATIC FM2D50-240 Electronic Timer 24/7 240v 4.38 x 3.43 x 2.63
Get it by Wednesday, Jul 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electronic Timer |
| Adjustment Type | Automatic |
| Amps | 16A |
| Applicable Ac Voltage Ranges | 240V AC |
| Application | Hvac, Machinery |
| Backup Device | Battery |
| Backup Protection Time | 3 yrs. |
| Backup Time | 3 yrs. |
| Backup Type | Battery |
| Battery Service Type | Non-Rechargeable, Non-Replaceable |
| Battery Type | Lithium CR2032 - #V |
| Body Color | Gray |
| Color | Gray |
| Contact Form | SPDT |
| Daylight Savings Adjustment | Automatic |
| Depth | 2 1/4" |
| Digital Timer Functions | On/Off |
| Display Qty | 1 |
| Events Available | 50 |
| Features | Automatic Daylight Savings Functions, Manual Override With Status Indication, Menu Driven Programming, Two Preset Adjustable Block Programs |
| Has Manual Override Status Indication | Yes |
| Height | 4 3/8" |
| Hp @ 240v Normally Closed | 3/4 hp |
| Hp @ 240v Normally Open | 1 hp |
| Length | 4.38" |
| Max. Hp @ 120v | 1/2 hp |
| Max. Hp @ 240v | 1 hp |
| Max. On/off Cycles | 50 |
| Max. Operating Temp. | 131°F |
| Max. Power Consumption | 1.4 W |
| Max. Time Setting | 7 Day |
| Max. Watts | 1.4 W |
| Min. On/off Times | 1 min. |
| Min. Operating Temp. | -13°F |
| Min. Time Setting | 1 min. , 24 hrs. |
| Mounting | Din Rail, Flush, Surface |
| Mounting Style | Din Rail, Surface |
| Nema Enclosure Rating | 1 |
| No. Of Channels | 2 |
| No. Of Circuits | 2 |
| No. Of Poles | 2 |
| No. Of Pulse Events | 50 |
| Number Of Pulse Events | 50 |
| On Off Operations | 350 |
| Operating Temp. | -14°F to +131°F |
| Overall Depth | 2 1/4" |
| Overall Height | 4" |
| Overall Width | 2 13/16" |
| Power Required | 4 VA |
| Series | FM2D50 Series |
| Voltage | 240V |
| Voltage Selection Type | Voltage Specific |
| Voltage Type | Voltage Specific |
| Watts | 600-1000 W |
| Width | 2 3/4" |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 10.25 |
| Ship length (cm) | 5.8 |
| Ship width (cm) | 7.2 |
| HS code | 9107008000 |
| Country of Origin | CN |
