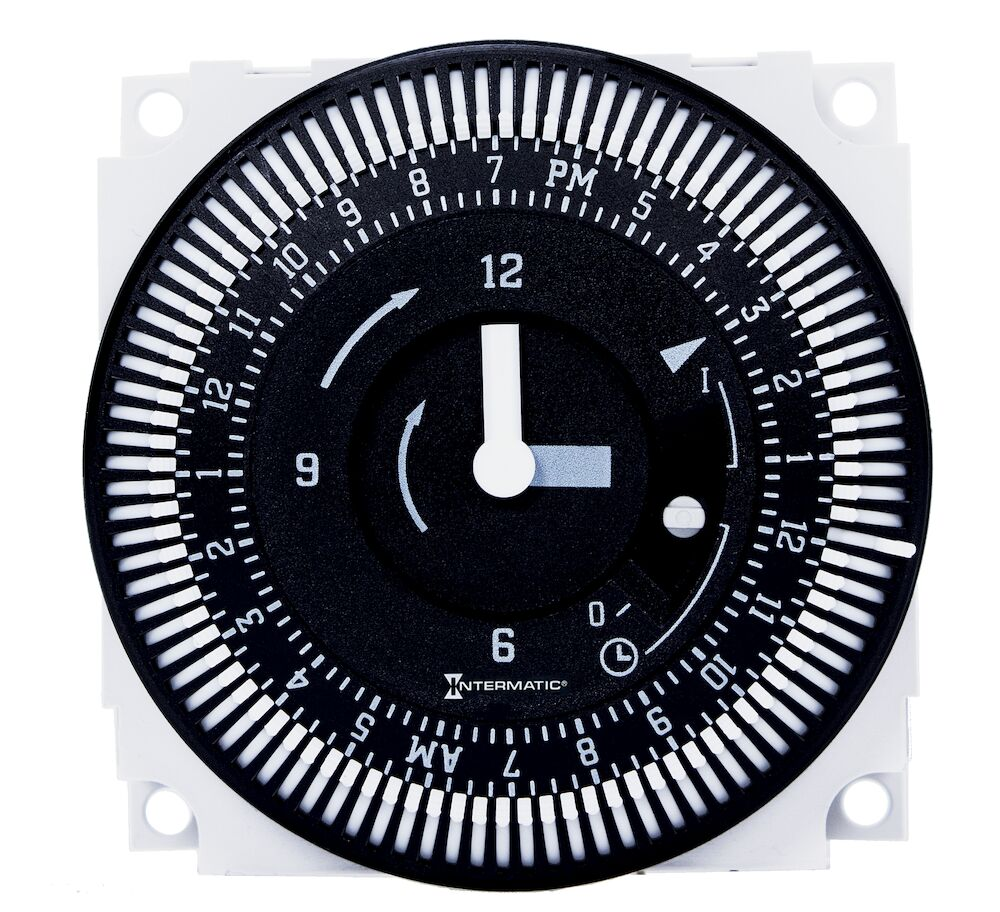

INTERMATIC FM1STUZH-24U Electromechanical Timer 24-hour Spdt
Item: AF7EFDModel: FM1STUZH-24UCross Ref: 20XF14
7 In Stock
Ships within 2 days via
5.00% off
€116.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electromechanical Timer |
| Amps | 21A |
| Applicable Ac Voltage Ranges | 24V AC |
| Application | Hvac, Machinery |
| Body Material | Steel |
| Clock Drive Type | Synchronous |
| Compatible Lighting | Compact Fluorescent, Fluorescent, Incandescent, LED |
| Contact Form | SPDT |
| Contact Hp @ 120v | 1 |
| Contact Hp @ 120v | 1 hp |
| Contact Hp @ 240v | 2 hp |
| Contact Hp @ 240v | 2 |
| Day Skipper | No |
| Dc Voltage | 24V DC |
| Depth | 2 5/16" |
| Display Qty | 1 |
| Enclosure Material | Steel |
| Enclosure Type | Steel |
| Features | Manual Override, Noise Immune |
| Has Captive Trippers | Yes |
| Has Captive Trippers Cvl | Yes |
| Has Override Switch | Yes |
| Has Override Switch Cvl | Yes |
| Has Real-time Clock Face | Yes |
| Has Realtime Clock Face Cvl | Yes |
| Height | 3 1/2" |
| Indoor/outdoor | Indoor |
| Max. Hp @ 120v | 1 hp |
| Max. Hp @ 240v | 2 hp |
| Max. On/off Cycles | 48 |
| Max. Operating Temp. | 185°F |
| Max. Power Consumption | 1 VA |
| Max. Time Setting | 23.75 hrs. , 24 hrs. |
| Mechanism Type | Electromechanical |
| Min. Cycle Time | 15 min. |
| Min. Operating Temp. | -40°F |
| Min. Time Setting | 15 min. |
| Mounting | Panel |
| Mounting Options | Panel |
| Mounting Style | Panel |
| Nema Enclosure Rating | No Enclosure |
| No. Of Poles | 2 |
| No. Of Trippers Included | 96 |
| No. Of Trippers-max. | 96 |
| Number Of Trippers Included | 96 |
| Operating Temp. | -40°F to +185°F |
| Overall Depth | 1 1/4" |
| Overall Height | 2 3/8" |
| Overall Width | 2 3/8" |
| Product Type | Timer |
| Series | FM1 Series |
| Timing Interval | 15 min. |
| Voltage | 24V AC |
| Width | 3 5/16" |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 6 |
| Ship length (cm) | 3.2 |
| Ship width (cm) | 6 |
| HS code | 9107008000 |
| Country of Origin | MX |
Product Details:
- Special Features: True Clock Face
Product Variants
| Product | Model | Applicable Ac Voltage Ranges | Voltage | Min. Time Setting | Max. Time Setting | Day Skipper | Indoor/outdoor | Nema Enclosure Rating | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
FM1QTUZH-120U | 120V AC | 120V AC | 15 min. | 23.75 hrs. | No | Indoor | No Enclosure | -4°F | €231.42 | |
|
FM1QTUZH-24U | 12/24V AC | 12-24V AC/DC | 15 min. | 23.75 hrs. | No | Indoor | No Enclosure | -4°F | €235.45 | |
|
FM1STUZH-240U | 208/240V AC | 240V AC | 15 min. | 23.75 hrs. | No | Indoor | No Enclosure | -40°F | €124.64 | |
 |
FM1QTUZ-120U | 120V AC | 120V AC | 15 min. | 23.75 hrs. | No | Indoor, Outdoor | NEMA 3R | -4°F | €113.35 | |
|
FM1QTUZ-24U | 12/24V AC | 12-24V AC/DC | 15 min. | 23.75 hrs. | No | Indoor | No Enclosure | -4°F | €217.77 | |
|
FM1STUZ-120U | 120V AC | 120V AC | 15 min. | 23.75 hrs. | No | Indoor | No Enclosure | -40°F | €96.39 | |
 |
FM1QWUZH-BW-24U | 24V AC | 12-24V AC/DC | 2 hrs. | 6.917 Days | Yes | Indoor | No Enclosure | -40°F | €355.64 |
