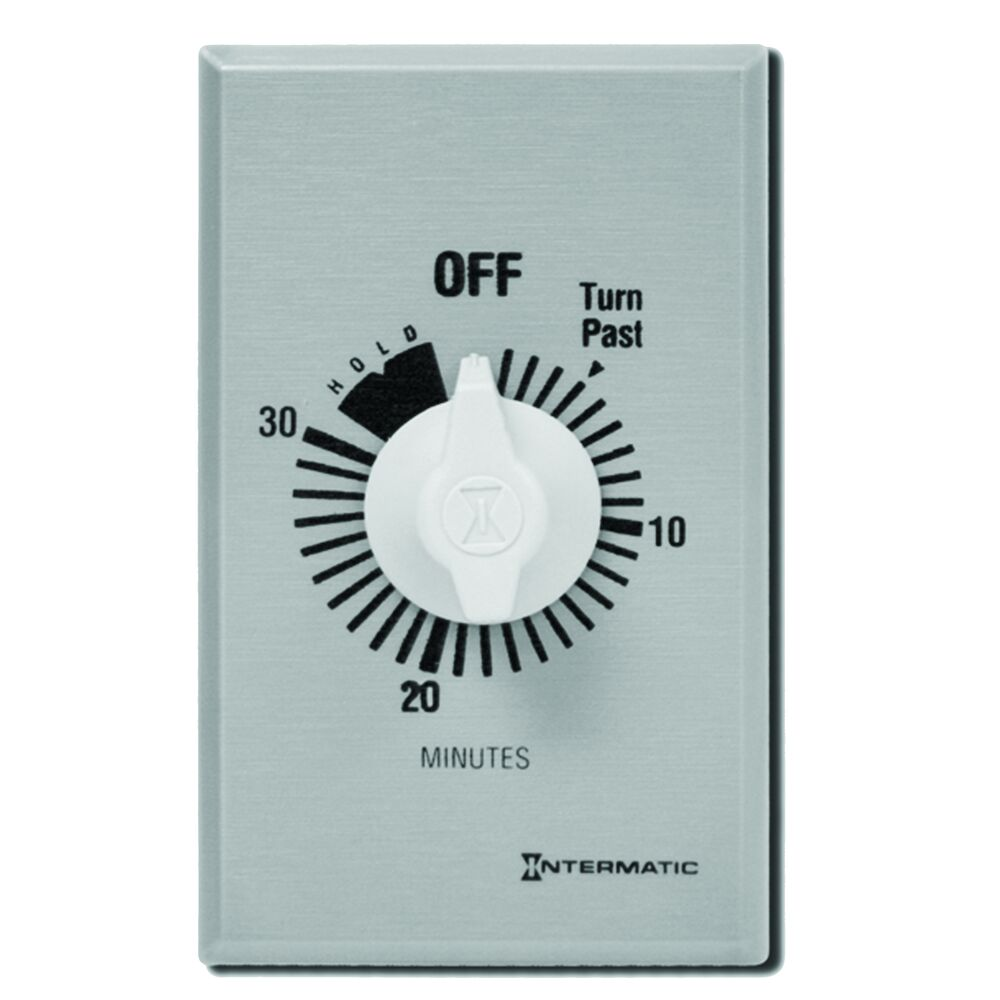

INTERMATIC FF30MH Timer Spring Wound 30 Min SPST Silver
Item: AC9DYAModel: FF30MHCross Ref: 3FXA6
7 In Stock
Ships within 2 days via
5.00% off
€59.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spring-Wound Timer |
| Amps | 10/20A , 20A |
| Applicable Ac Voltage Ranges | 277V AC |
| Application | HVAC, Lighting, Motor Controls |
| Application Compatibilities | CFL, Fluorescent, Incandescent, LED |
| Applications | Air Movement & Ventilation, Indoor Lighting Control, Motor Control, Outdoor Lighting Control |
| Body Color | Silver |
| Color | Silver |
| Compatible Lighting | Fluorescent, Incandescent, LED |
| Contact Form | SPST |
| Countdown Time | 30 min. |
| Depth | 1 1/4" |
| Display Qty | 1 |
| Faceplate Color | Silver |
| Features | Automatically Limit Time For Energy Consuming Loads |
| Fits | Single Gang Box |
| Height | 4 1/8" |
| Hold Mode Included | Yes |
| Hp @ 125v | 1 hp |
| Hp @ 250v | 2 hp |
| Included Hold | Hold Included |
| Included Wall Plate | Wall Plate Included |
| Indoor/outdoor | Indoor, Outdoor |
| Input Voltage | 125-277V AC |
| Knob | Plastic |
| Knob Material | Plastic |
| Load Capacity @ 250v (amp) | 10 |
| Max. Amps @ 125v Ac | 20A |
| Max. Amps @ 250v Ac | 10A |
| Max. Amps @ 277v Ac | 10A |
| Max. Hp @ 120v | 1 hp |
| Max. Hp @ 240v | 2 hp |
| Max. Operating Temp. | 120°F |
| Max. Time Setting | 30 min. |
| Max. Watts | 2770 W |
| Mechanism Type | Analog/Mechanical |
| Min. Operating Temp. | 40°F |
| Neutral Connection Required | No |
| No. Of Gangs | 1 |
| Operation Mode | Countdown |
| Overall Depth | 1 1/4" |
| Overall Height | 4 1/8" |
| Overall Width | 1 3/4" |
| Product Type | Countdown Timer |
| Resistive Heater | 20A, 2500 W, 125V AC / 10A, 2500 W, 250V AC / 10A, 2770 W, 277V AC |
| Series | FF Series |
| Style | Commercial |
| Timer Switch Type | Mechanical |
| Timing Range | 0 to 30 min. |
| Tungsten Incandescent Rating | 7A, 125V AC, 50/60 Hz, 875 W |
| Units Per Pallet | 1200 |
| Wall Plate Configurations | Multi Gang, Single Gang |
| Width | 1 3/4" |
| Wiring Configuration | Single |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 10.48 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 4.45 |
| HS code | 9106908500 |
| Country of Origin | TN |
Product Details:
- Hold Feature (Yes)
- Load Capacity @ 125V (Amp) (20 (Inductive)/7 (Tungsten))
- Load Capacity @ 277V (Amp) (10)
Product Variants
| Product | Model | Contact Form | Number Of Gangs | Fits | Max. Amps @ 125vac | Max. Amps @ 250vac | Max. Amps @ 277vac | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
FD15MC | SPST | - | Single Gang Box | - | - | - | €62.70 | |
 |
FD30MC | SPST | - | Single Gang Box | - | - | - | €58.08 | |
 |
FD60MC | SPST | - | Single Gang Box | - | - | - | €58.81 | |
 |
FF12HC | SPST | - | Single Gang Box | - | - | - | €82.37 | |
 |
FF30MC | SPST | - | Single Gang Box | - | - | - | €59.59 | |
 |
FF15MC | SPST | - | Single Gang Box | - | - | - | €70.30 | |
 |
FD5MW | SPST | - | Single Gang Box | - | - | - | €65.00 |
