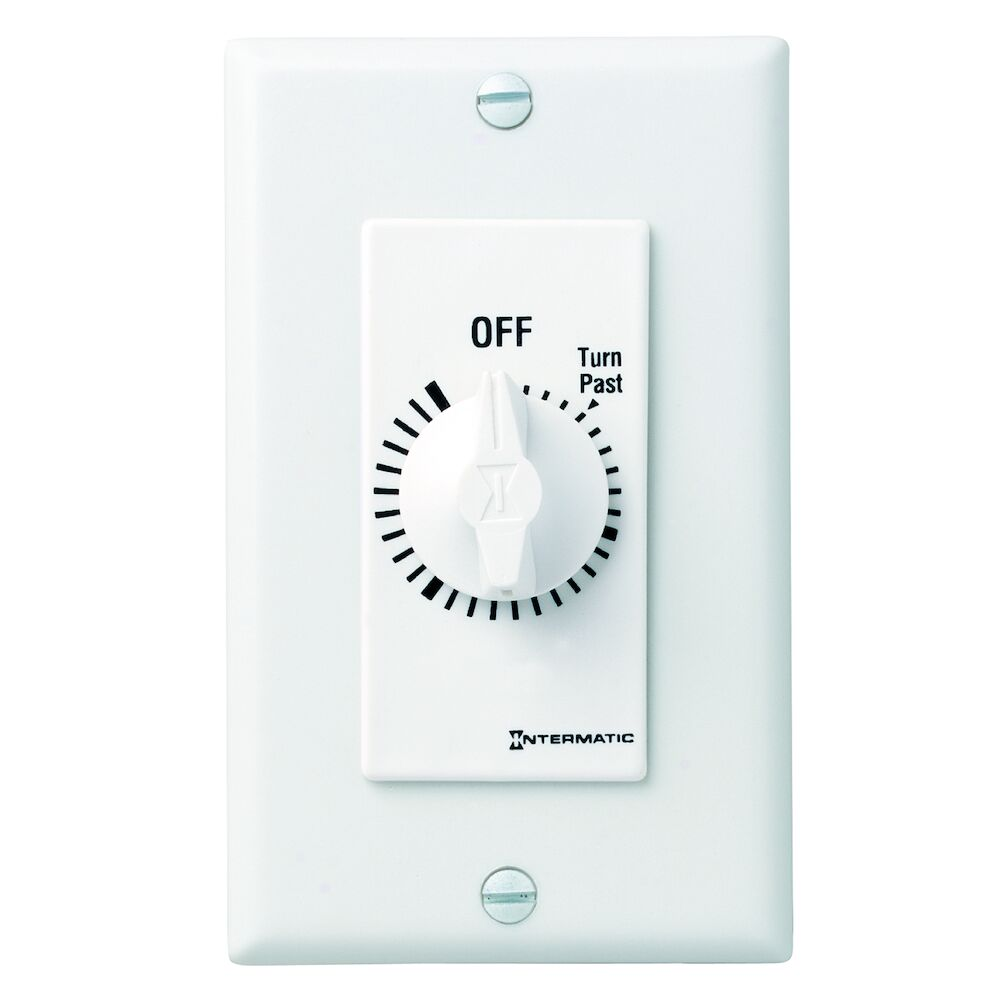

INTERMATIC FD430MW Timer Spring Wound 30 Min
Item: AC7DMTModel: FD430MWCross Ref: 38D071
7 In Stock
Ships within 2 days via
10.00% off
€125.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spring-Wound Timer |
| Amps Rating | 10/20A |
| Applicable Ac Voltage Ranges | 277V AC |
| Application | HVAC, Lighting, Motor Controls |
| Application Compatibilities | CFL, Fluorescent, Incandescent, LED |
| Applications | Air Movement & Ventilation, Indoor Lighting Control, Motor Control, Outdoor Lighting Control |
| Body Color | White |
| Color | White |
| Compatible Lighting | Fluorescent, Incandescent, LED |
| Contact Form | DPST |
| Countdown Time | 30 min. |
| Current Rating | 20A |
| Depth | 1 1/4" |
| Display Qty | 1 |
| Faceplate Color | White |
| Features | Automatically Limit Time For Energy Consuming Loads |
| Fits | Single Gang Box |
| Height | 4 1/8" |
| Hold Mode Included | No |
| Horsepower @ 120v - Maximum | 1 hp |
| Horsepower @ 240v - Maximum | 2 hp |
| Hp @ 125v | 1 hp |
| Hp @ 250v | 2 hp |
| Includes Hold | No Hold Included |
| Includes Wall Plate | No Wall Plate Included |
| Indoor/outdoor Usage | Indoor/Outdoor |
| Input Voltage | 125-277V AC |
| Knob | Plastic |
| Knob Material | Plastic |
| Load Capacity @ 250v (amp) | 10 |
| Max. Amps @ 125vac | 20A |
| Max. Amps @ 250vac | 10A |
| Max. Amps @ 277vac | 10A |
| Max. Operating Temp. | 120°F |
| Mechanism Type | Analog/Mechanical |
| Min. Operating Temp. | 40°F |
| Neutral Connection Required | No |
| Number Of Gangs | 1 |
| Operation Mode | Countdown |
| Overall Depth | 1 1/4" |
| Overall Height | 4 1/8" |
| Product Type | Countdown Timer |
| Resistive Heater | 20A, 2500 W, 125V AC / 10A, 2500 W, 250V AC / 10A, 2770 W, 277V AC |
| Series | Fd Series |
| Style | Decorator |
| Switch Type | 1-Pole |
| Time Setting - Maximum | 30 min. |
| Timer Switch Type | Mechanical |
| Timing Range | 0 to 30 min. |
| Tungsten Incandescent Rating | 7A, 125V AC, 50/60 Hz, 875 W |
| Units Per Pallet | 1200 |
| Wall Plate Configurations | Multi Gang, Single Gang |
| Wattage - Maximum | 2770 W |
| Width | 1 3/4" |
| Wiring Configurations | Single |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 10.48 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 4.45 |
| HS code | 9107004080 |
| Country of Origin | TN |
Product Details:
- Hold Feature (No)
- Load Capacity @ 125V (Amp) (20 (Inductive)/7 (Tungsten))
- Load Capacity @ 277V (Amp) (10)
Product Variants
| Product | Model | Contact Form | Number Of Gangs | Max. Amps @ 250vac | Max. Amps @ 125vac | Max. Amps @ 277vac | Fits | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
FD15MC | SPST | 1 | 10A | 20A | 10A | Single Gang Box | €62.70 | |
 |
FD30MC | SPST | 1 | 10A | 20A | 10A | Single Gang Box | €58.08 | |
 |
FD60MC | SPST | 1 | 10A | 20A | 10A | Single Gang Box | €58.81 | |
 |
FF12HC | SPST | 1 | 10A | 20A | 10A | Single Gang Box | €82.37 | |
 |
FF30MC | SPST | 1 | 10A | 20A | 10A | Single Gang Box | €59.59 | |
 |
FF15MC | SPST | 1 | 10A | 20A | 10A | Single Gang Box | €59.59 | |
 |
FD5MW | SPST | 1 | 10A | 20A | 10A | Single Gang Box | €60.98 |
