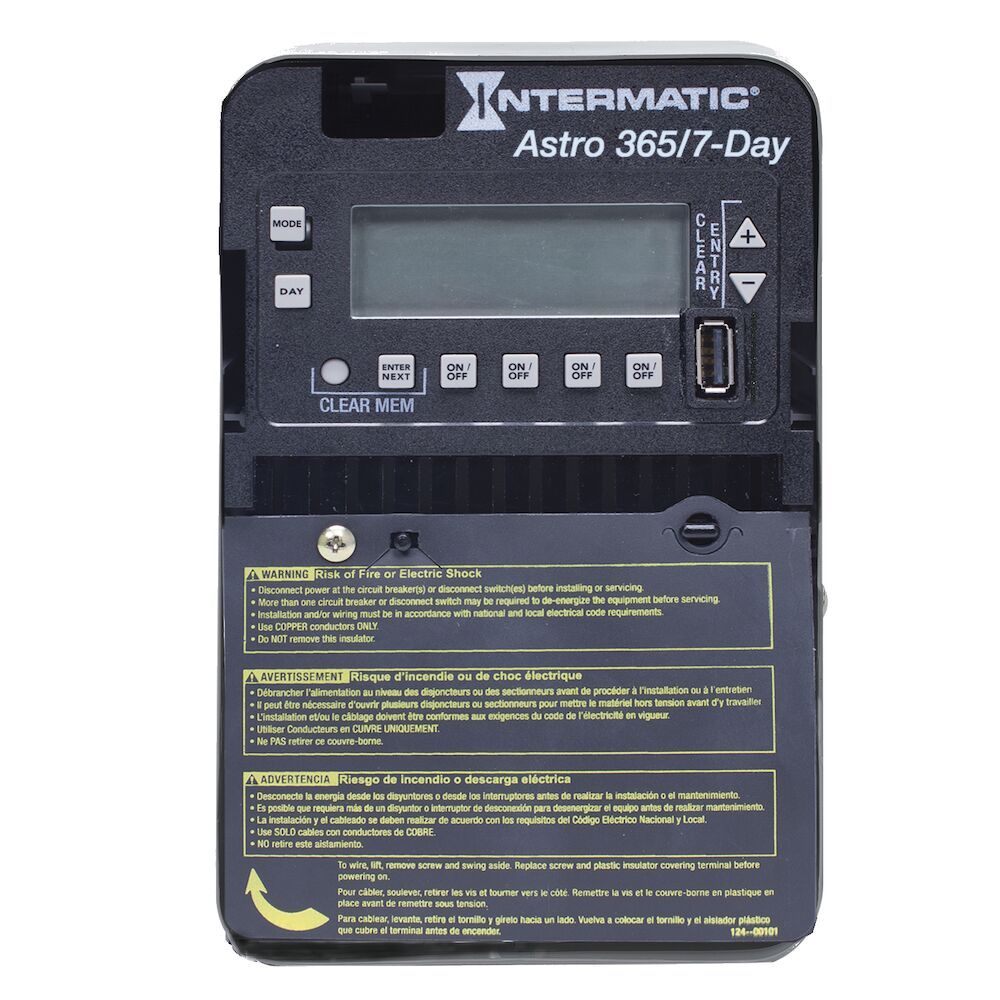

INTERMATIC ET2845C Electronic Timer, 4 Channels, 120 to 277V AC, SPST, 30A, 7 Day Max. Time Setting
Item: CJ2CGTModel: ET2845CCross Ref: 52RU65
7 In Stock
Ships within 2 days via
10.00% off
€956.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Timer |
| Adjustment Type | Automatic |
| Applicable Ac Voltage Ranges | 120-277V AC |
| Application | Lighting, Machinery, Pump Controls |
| Astronomic Functionality | Astronomic |
| Available Actions - Electronic Timer | On/Off, Pulse |
| Backup Device | Capacitor |
| Backup Restoration Time | 30 min. |
| Backup Time | 100 hrs. |
| Backup Type | Supercapacitor |
| Body Color | Gray |
| Body Material | Metal |
| Color | Gray |
| Compatible Lighting | LED |
| Contact Form | SPST, DPST |
| Current Rating | 30A |
| Daylight Savings Adjustment | Automatic |
| Depth | 3 7/16" |
| Description/special Features | Indoor |
| Digital Timer Functions | On/Off, Pulse |
| Display Height | 1" |
| Display Qty | 1 |
| Display Width | 3" |
| Electrical Installation Type | Screw Terminal |
| Enclosure | Metal |
| Events Available | 96 |
| Features | 50 Holiday Blocks |
| Height | 7 7/8" |
| Horsepower @ 120v - Maximum | 1 hp |
| Horsepower @ 240v - Maximum | 2 hp |
| Hz - Electrical | 60 Hz |
| Indoor/outdoor Usage | Indoor |
| Max. On/off Cycles | 96 |
| Max. Power Consumption | 7 W |
| Max. Wattage | 7 W |
| Maximum On/off Times | Indefinite |
| Maximum Pulse Time | 2 sec. |
| Min. Time Setting | 1 min. |
| Minimum On/off Times | 1 min. |
| Minimum Pulse Time | 2 sec. |
| Mounting | Surface |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Number Of Channels | 4 |
| Number Of Circuits | 4 |
| Number Of Poles | 2 |
| Number Of Pulse Events | 48 |
| On Off Operations | 96 |
| Operating Temperature - Maximum | 104°F |
| Operating Temperature - Minimum | -40°F |
| Operation Features | Astronomic, Holiday |
| Operation Mode | Astro 7/365 Days |
| Overall Depth | 3 7/16" |
| Overall Height | 7 7/8" |
| Overall Width | 5 1/8" |
| Product Datasheet | intermatic-et2845c.pdf |
| Pulse Duration | 2 sec. |
| Series | ET2000 Series |
| Time Setting - Maximum | 7 Day |
| Voltage Selection Type | Auto Voltage |
| Voltage Type | Auto Voltage |
| Width | 5 1/8" |
| Wiring Option | Terminals |
Shipping Info:
| Ship weight (kg) | 1.33 |
| Ship height (cm) | 20 |
| Ship length (cm) | 8.73 |
| Ship width (cm) | 13.02 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Max. On/off Cycles | Events Available | Contact Form | Enclosure Material | Number Of Pulse Events | Color | Mounting | Number Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FM1D14-AV-U | 14 | 14 | SPDT | - | - | Gray | Panel | 2 | €217.08 | |
 |
EH10 | 12 | 12 | SPST | Steel | - | Gray | Snap In | 1 | €297.31 | |
 |
EP100C | 28 | 28 | SPST | Plastic | - | Beige | Surface | 1 | €266.48 | |
 |
ET2105CP | 96 | 96 | SPST | Plastic | - | Gray | Surface | 1 | €517.61 | |
 |
ET2105CR | 96 | 96 | SPST | Metal | - | Gray | Surface | 1 | €524.57 | |
 |
ET2115C | 96 | 96 | SPDT | Metal | - | Gray | Surface | 1 | €518.79 | |
 |
ET2115CP | 96 | 96 | SPDT | Plastic | - | Gray | Surface | 1 | €591.93 |
