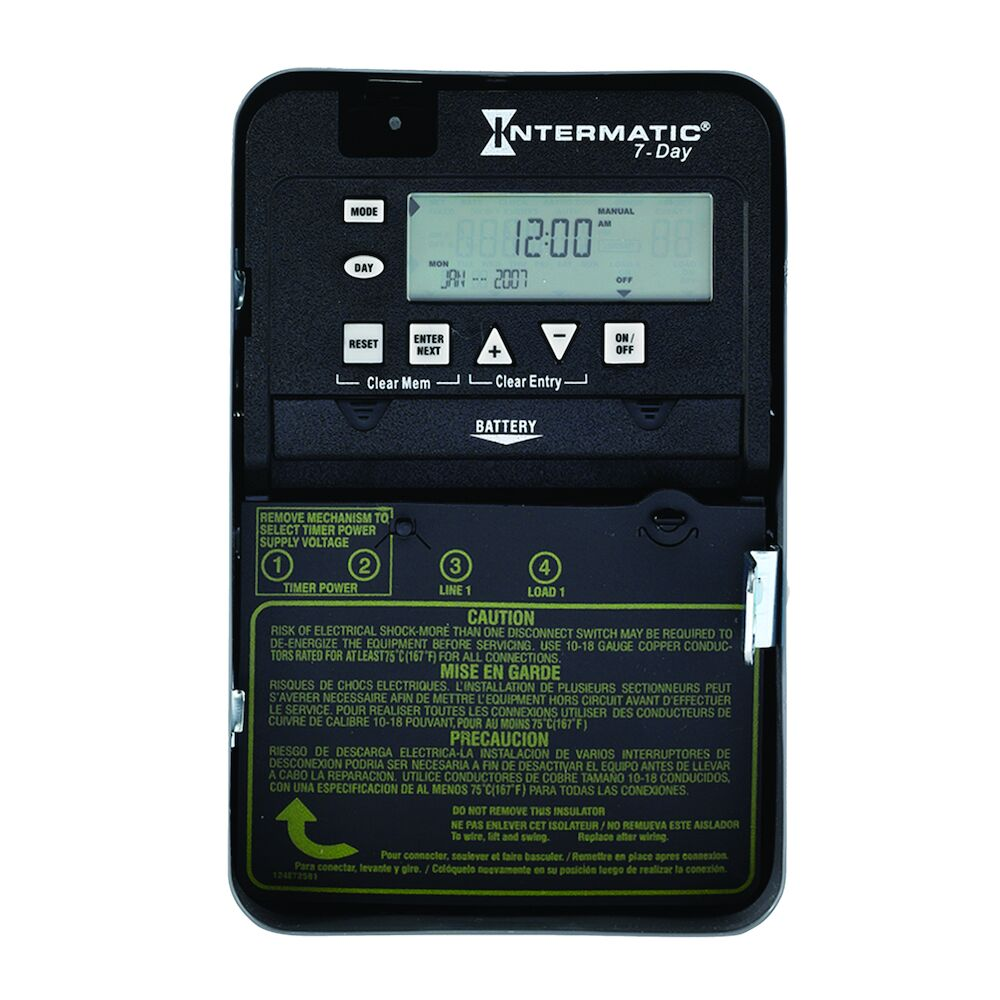

INTERMATIC ET1705C Electronic Timer 7-day Spst 120-277 V
Item: AC9DXVModel: ET1705CCross Ref: 3FXA1
7 In Stock
Ships within 2 days via
10.00% off
€540.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Timer |
| Adjustment Type | Automatic |
| Amps | 30A |
| Applicable Ac Voltage Ranges | 120-277V AC |
| Application | Lighting, Machinery, Pump Controls |
| Astronomic Functionality | Not Astronomic |
| Backup Device | Battery |
| Backup Time | Up to 3 Yrs. |
| Backup Time | 3 yrs. |
| Backup Type | Battery |
| Battery Service Type | Field Serviceable |
| Battery Type | AAA Alkaline |
| Body Color | Gray |
| Body Material | Metal |
| Color | Gray |
| Contact Form | SPST |
| Current Rating | 30A |
| Daylight Savings Adjustment | Automatic |
| Depth | 3" |
| Digital Timer Functions | On/Off |
| Display Qty | 1 |
| Electrical Installation Type | Screw Terminal |
| Enclosure | Steel |
| Enclosure Material | Steel |
| Events Available | 28 |
| Features | Automatic Daylight Savings Functions, Permanent Manual Override, Temporary Override |
| Height | 7 3/4" |
| Horsepower @ 120v - Maximum | 1 hp |
| Horsepower @ 240v - Maximum | 2 hp |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 2 hp |
| Indoor/outdoor Usage | Indoor |
| Length | 8" |
| Material | Metal |
| Max. On/off Cycles | 14 |
| Max. On/off Operations | 14 |
| Max. Power Consumption | 6 W |
| Max. Wattage | 6 W |
| Maximum On/off Times | Indefinite |
| Min. Time Setting | 1 min. |
| Minimum On/off Times | 1 min. |
| Mounting | Surface |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Number Of Channels | 1 |
| Number Of Circuits | 1 |
| Number Of Poles | 1 |
| Number Of Pulse Events | 0 |
| Number Of Pulse Events | 28 |
| On Off Operations | 14 |
| Operating Temp. | -40°F to +155°F |
| Operating Temperature - Maximum | 104°F |
| Operating Temperature - Minimum | -40°F |
| Operation Mode | 7 Days |
| Overall Depth | 3 7/16" |
| Overall Height | 7 7/8" |
| Overall Width | 5 1/8" |
| Series | ET1700 Series |
| Time Setting - Maximum | 7 Day |
| Timer Extra Features | Manual Override |
| Voltage Selection Type | Selector Switch |
| Voltage Type | Selector Switch |
| Wattage | 3600 W |
| Width | 5" |
| Wiring Option | Terminals |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 20 |
| Ship length (cm) | 8.73 |
| Ship width (cm) | 13.02 |
| HS code | 9107008000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Contact Form | Number Of Pulse Events | Min. Time Setting | Enclosure Material | Max. On/off Cycles | Events Available | Hp @ 240v | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ET1725C | SPST, DPST | 14 | 1 min. | Steel | 14 | 28 | 2 hp | Gray | €611.89 |
