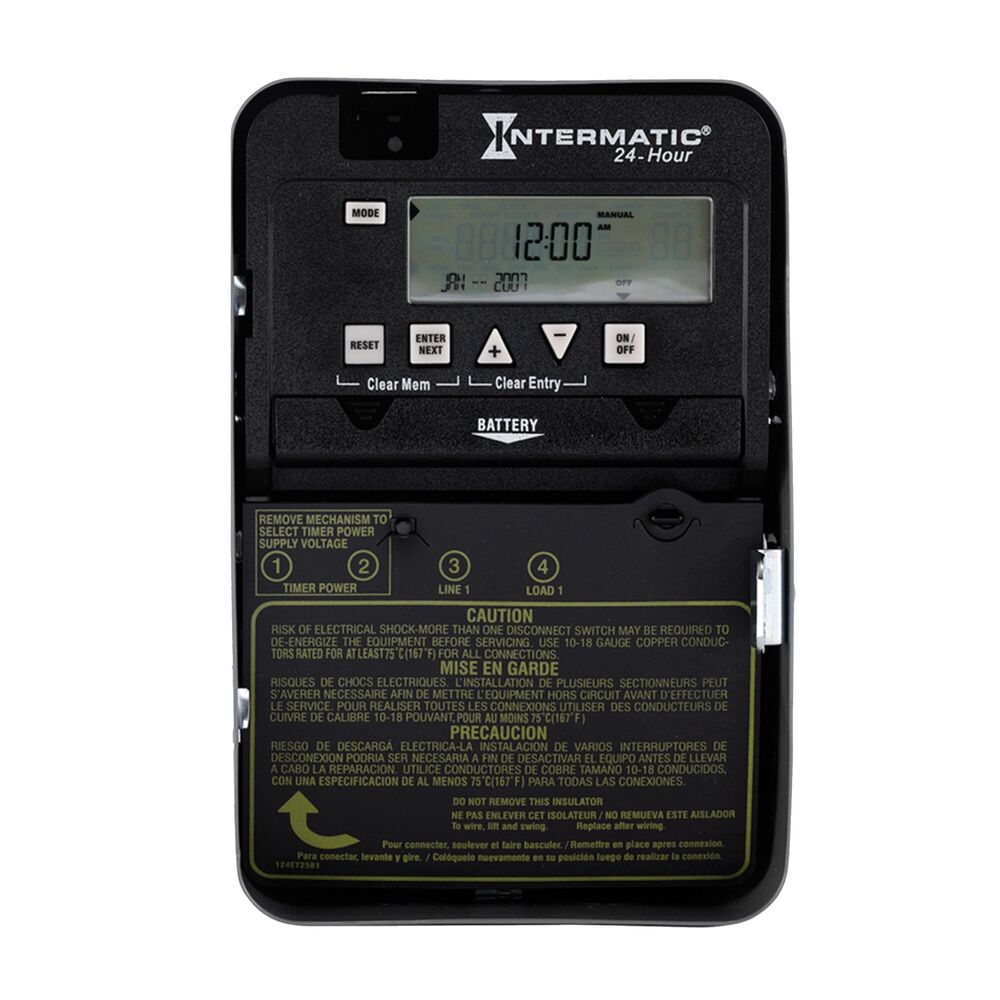

INTERMATIC ET1105C Electric Timer 1p Spst 3 600-8 300w 24hr
Item: AE2GUVModel: ET1105CCross Ref: 4XGV9
7 In Stock
Ships within 2 days via
5.00% off
€496.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Timer |
| Adjustment Type | Automatic |
| Amps | 30A |
| Applicable Ac Voltage Ranges | 120-277V AC |
| Application | Lighting, Machinery, Pump Controls |
| Astronomic Functionality | Not Astronomic |
| Backup Device | Battery |
| Backup Time | 3 yrs. |
| Backup Type | Battery |
| Battery Service Type | Field Serviceable |
| Battery Type | AAA |
| Body Color | Gray |
| Body Material | Metal |
| Color | Gray |
| Contact Form | SPST |
| Daylight Savings Adjustment | Automatic |
| Depth | 3" |
| Digital Timer Functions | On/Off |
| Display Qty | 1 |
| Electrical Installation Type | Screw Terminal |
| Enclosure | Steel |
| Enclosure Material | Steel |
| Events Available | 28 |
| Features | Automatic Daylight Savings Functions, Permanent Manual Override, Temporary Override |
| Height | 7 3/4" |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 2 hp |
| Indoor/outdoor | Indoor |
| Length | 7 3/4" |
| Material | Metal |
| Max. Hp @ 120v | 1 hp |
| Max. Hp @ 240v | 2 hp |
| Max. On/off Cycles | 14 |
| Max. On/off Operations | 14 |
| Max. On/off Times | Indefinite |
| Max. Operating Temp. | 104°F |
| Max. Power Consumption | 6 W |
| Max. Time Setting | 24 hrs. |
| Max. Watts | 6 W |
| Min. On/off Times | 1 min. |
| Min. Operating Temp. | -40°F |
| Min. Time Setting | 1 min. |
| Mounting | Snap In |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| No. Of Channels | 1 |
| No. Of Circuits | 1 |
| No. Of Poles | 1 |
| No. Of Pulse Events | 0 |
| Number Of Pulse Events | 28 |
| On Off Operations | 14 |
| Operating Temp. | -40°F to +155°F |
| Overall Depth | 3 7/16" |
| Overall Height | 7 7/8" |
| Overall Width | 5 1/8" |
| Series | ET1100 Series |
| Timer Extra Features | Manual Override |
| Type | Programmable |
| Voltage Selection Type | Selector Switch |
| Voltage Type | Selector Switch |
| Watts | 3600-8300 W |
| Width | 5" |
| Wiring Option | Terminals |
Shipping Info:
| Ship weight (kg) | 1.28 |
| Ship height (cm) | 20 |
| Ship length (cm) | 8.73 |
| Ship width (cm) | 13.02 |
| HS code | 9107008000 |
| Country of Origin | CN |
Product Details:
- Special Features: Requires 2 AAA Batteries Not Included, Includes Automatic Daylight Savings Time Adjustment
Product Variants
| Product | Model | Max. Time Setting | Contact Form | Max. On/off Cycles | Depth | Mounting | Type | Min. Time Setting | Enclosure Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ET8015C | 7 Day | SPST | 28 | 3" | Snap In | 7 Days Astronomic | 1 min. | Steel | €700.76 | |
 |
ET8215C | 7 Day | SPST, DPST | 28 | 3" | Snap In | 7 Days Astronomic | 1 min. | Steel | €768.78 | |
 |
ET1125C | 24 hrs. | DPST | 14 | 5" | Surface | 24 hrs. | 1 min. | Steel | €436.22 |
