INTERMATIC EK4736S Photocontrol, 120 to 277V AC, 1000 Max. Watt, 6A Max. Incandescent Amps | CJ2ZUR 710N34

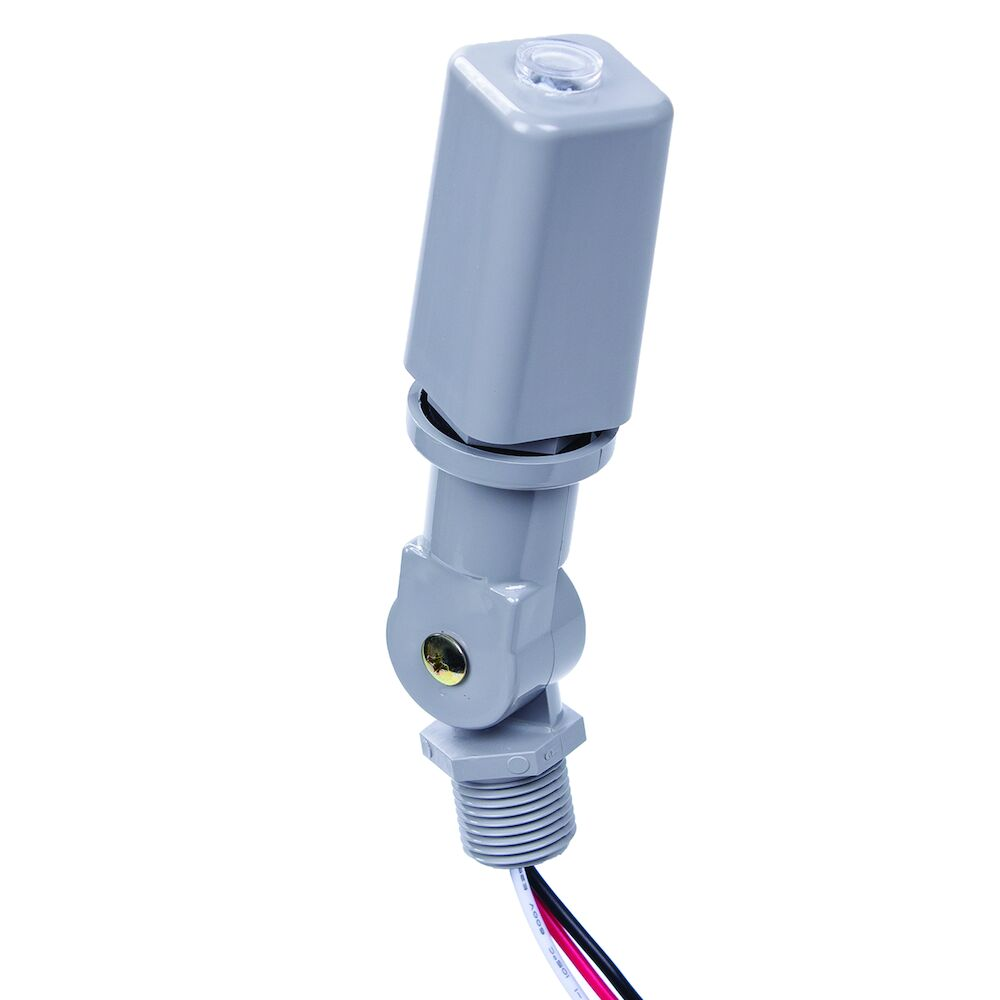

INTERMATIC EK4736S Photocontrol, 120 to 277V AC, 1000 Max. Watt, 6A Max. Incandescent Amps

Item: CJ2ZURModel: EK4736SCross Ref: 710N34
7 In Stock

Ships within 2 days via

€62.81
10.00% off
€56.53 /unit
This product can only be shipped in multiples of 12
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Photocontrol
Activation Off 4.5 fC
Activation On 1.5 fC
Applicable Ac Voltage Ranges 120-277V AC
Applications Outdoor Lighting Control
Ballast Fluorescent 1800 VA
Ballast Fluorescent Ranges 1800 VA
Color Gray
Compatible Lighting HID, Incandescent, LED
Contact Form SPST
Depth 1 1/4"
Display Qty 1
Enclosure Type Polycarbonate
Expected Lifetime Operations 10000
Features 10, 000 On/Off Cycles, Conformal Coated Pcb, Fail On Mode, Ir Filter, Non-Drift Silicon Light Sensor, Surge Protection, Top-Mounted Sensor, Zero-Crossing Circuitry
Housing Color Gray
Housing Material Polycarbonate
Incandescent Current - Maximum 8.3A
Includes Locking Nut, Washer Gasket
Indoor/outdoor Usage Outdoor
Length 5 5/8"
Length (straight Wireway) 5 5/8"
Manufacturers Warranty Length 8 yrs.
Max. Ballast Amps 6A
Max. Incandescent Amps 6A
Mounting Style Stem And Swivel
Nominal Ac Voltage Ratings 120/240/277V AC
Off Illumination - Maximum 4.5 fC
On Illumination - Maximum 1.5 fC
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum -40°F
Overall Depth 1.25"
Overall Height 5.63"
Overall Width 1.31"
Photo Control Switch Type Relay
Photocell Type Silicon Diode
Photocontrol Photocell Type Silicon Diode
Photocontrol Sensor Location Top
Photocontrol Switch Type Relay
Photocontrol Type Electronic
Product Datasheet intermatic-ek4736s.pdf
Product Height 5 5/8"
Series NIGHTFOX Series
Stem Diameter 1/2"
Stem Thread Size 1/2"-14
Stem Thread Type NPSM
Time Delay - Maximum 5 sec.
Time Delay - Minimum 2 sec.
Time Delay Range 2 sec. to 5 sec.
Tungsten (no) 1000 W
Tungsten Load Ratings 1000 W
Tungsten Load Ratings Ranges 1000 W
Tungsten Range(s) 1000 W
Usage Environments Outdoor
Wattage - Maximum 1000 W
Width 1 5/16"
Wiring Option Wire Leads

Shipping Info:

Ship weight (kg) 0.12
Ship height (cm)14.29
Ship length (cm)3.18
Ship width (cm)3.33
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelColorEnclosure TypeHousing MaterialDepthMounting TypeContact FormMax. WattageVoltagePrice
INTERMATIC EK4236S Photocontrol, 105 to 305 VAC Voltage, 1800 Max. Wattage | CD2LGC 49ZZ47 EK4236SGrayRaintightPlastic1 5/16"NPSMSPST1800 W105-305V AC€33.51
INTERMATIC EK4136S Photocontrol, 105 to 305V AC, 1000 Max. Watt, 15A Max. Incandescent Amps | CJ2ZUM 52RU69 EK4136SGrayRaintightPolycarbonate1 1/4"-SPST--€45.13
INTERMATIC LED4536SC Photocontrol, 120 to 277V AC, 1000 Max. Watt, 8.3A Max. Incandescent Amps | CJ2ZUN 710N33 LED4536SC-PolycarbonatePolypropylene-LockingSPST--€64.14
INTERMATIC EK4036S Photocontrol, 105 to 305V AC, 1000 Max. Watt, 15A Max. Incandescent Amps | CJ2ZUP 52RU68 EK4036SGrayRaintightPolycarbonate1 1/4"-SPST--€51.67
INTERMATIC EK4336S Photocontrol, 120 to 277V AC, 1000 Max. Watt, 6A Max. Incandescent Amps | CJ2ZUQ 710N35 EK4336SGrayPolycarbonatePolycarbonate1 1/4"WallSPST--€55.64
INTERMATIC LC2100 Photocontrol, 120 to 277V AC, 1000 Max. Watt, 15A Max. Incandescent Amps | CJ2ZUT 52ZW32 LC2100BlueRaintightPolycarbonate3 1/4"-SPST--€33.80
