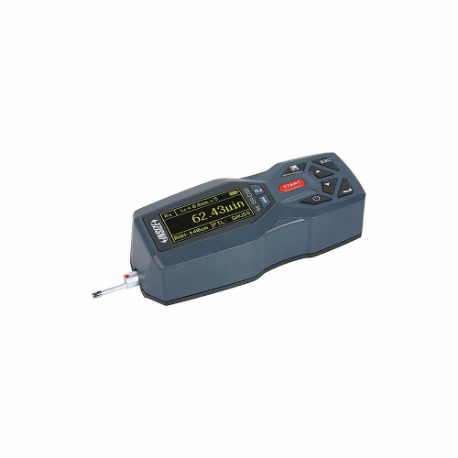

INSIZE ISR-C002 Handheld Surface Roughness Tester
Item: CR4ULHModel: ISR-C002Cross Ref: 463L43
7 In Stock
Ships within 2 days via
10.00% off
€3,865.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Surface Roughness Tester |
| Analysis Graph | Rmr Analysis, Roughness Profile |
| Battery Included | Yes |
| Battery Voltage | 9V |
| Compatible Memory Card | None |
| Compatible Wireless Transmitter | Bluetooth |
| Data Output Connection Type | Bluetooth |
| Data Output Type | Cabled |
| Detector Measuring Force | 2.78 mN |
| Dimensions (display Unit) | 1.57" x 2.16" x 1.57" |
| Display Functions | Analysis Graph, Language Selection, Standard Selection, Print & Export Data, Save Data, Select Sampling Length |
| Display Screen Size | 2.56" |
| Display Size | 2 14/25" |
| Drive Unit | Skidded |
| Drive Unit Principle | Skid |
| Features | 21 Roughness Parameters, Connected With Printer Via Bluetooth, Display Roughness Values, Profile And Curve, Memory Of Maximum 100 Results, Automatic Power Off |
| Includes | Probe Cover, Adjustable Stand |
| Includes Case | No |
| Includes Printer | No |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 104°F |
| Maximum Operating Temperature - C | 40°C |
| Measuring Condition Standards | ANSI, ISO-4287, JISB0601, ISO-12085, JIS-B0631 |
| Measuring Range | 6299µin. |
| Measuring Range (in.) | 6299µin. |
| Measuring Range (mm) | 0.16 mm |
| Measuring Range Ra | 0.005 mm to 16 mm |
| Measuring Range Rz | 0.02 μm to 160 μm |
| Memory Storage Capacity | 100 |
| Min. Operating Temp. | -4°F |
| Minimum Operating Temperature - C | -20°C |
| Minimum Operating Temperature - F | -4°F |
| Number Of Parameters Measured | 21 |
| Number Of Sampling Spans | 1, 2, 3, 4, 5 |
| Operating Position | Horizontal/Vertical |
| Operating Temp. Range | -4°F to +104°F |
| Parameters Measured | MR1MR2R3YR3ZRARKRKURMAXRPRPCRPKRQRSRSKRSMRTRVRVKRY (JIS)RZRZ (JIS) |
| Power Supply | 9V Battery |
| Probe Positions | Axial |
| Probe Sensor Type | Inductive |
| Probe Tip Radius | 5 µm |
| Product Type | Handheld Surface Roughness Tester |
| Profile Resolution | 0.01µin. |
| Sampling Length | 1/5" |
| Sampling Range Arbitrary Length | 5.55 mm |
| Spc Output | Yes |
| Tester Series | INSIZE C002 Series |
| Transverse Cutoff Length | 0.01", 0.03", 0.1" |
Shipping Info:
| Ship weight (kg) | 1.84 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Drive Unit Principle | Detector Measuring Force | Probe Tip Radius | Measuring Range | Number Of Sampling Spans | Sampling Length | Transverse Cutoff Length | Data Output Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

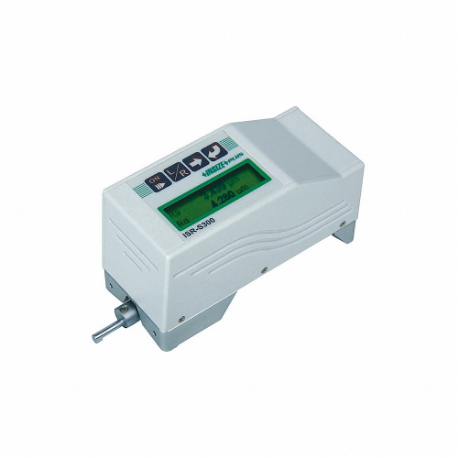

ISR-S400 | Skid | 0.83 mN | 5 µm | 0 µin. to 3937 µin., 1.97 µin. to 15748 µin. | 1, 2, 3, 4, 5 | 0.63" | 0.01", 0.03", 0.1" | Cabled | €7,718.96 | |
 |

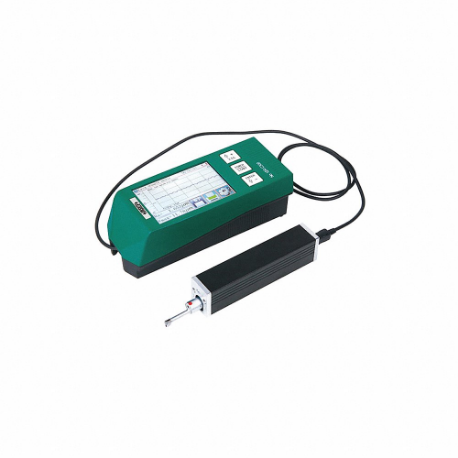

ISR-C300 | Traverse | 4 mN | 5 µm | 689 µin. to 12598 µin., 6299 µin. to 6299 µin. | 1, 2, 3, 4, 5 | 0.01", 0.03", 0.1" | 0.01", 0.03", 0.1" | Cable, Wireless | €4,805.03 | |
 |

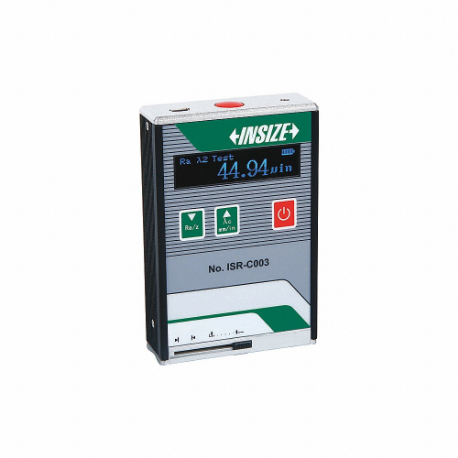

ISR-C003 | Skid | 3.34 mN | 10 µm | 2 µin. to 590 µin., 4 µin. to 1968 µin. | 3 | 1/5" | 0.01", 0.03", 0.1" | - | €3,265.33 | |
 |

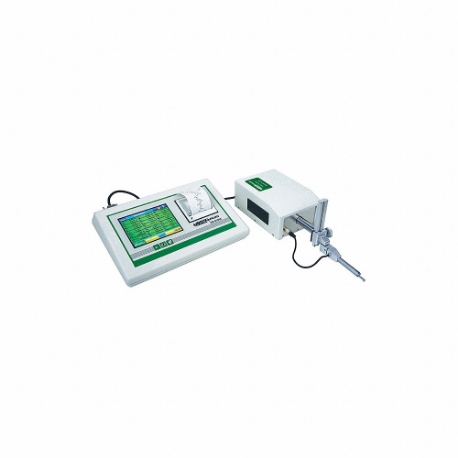

ISR-S1000B | Skid | 0.83 mN | 5 µm | 39370µin. | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 | 1.97" | 0.003", 0.01", 0.03", 0.1", 0.3" | Cabled | €25,931.51 |
