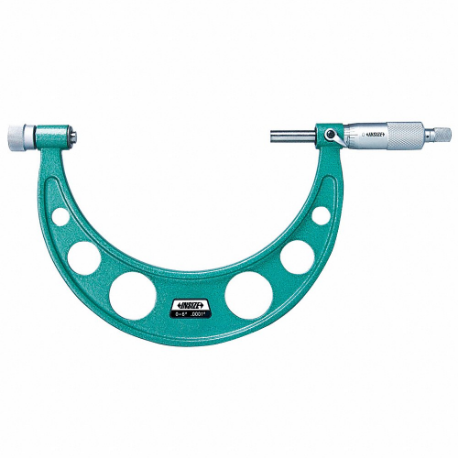

INSIZE 3206-2 Mechanical Interchangeable-Anvil Outside Micrometer, Mechanicalch to Inch Range
Item: CV2TPKModel: 3206-2Cross Ref: 462U46
7 In Stock
Ships within 2 days via
10.00% off
€191.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Outside Micrometer |
| Accuracy | -0.00016" to +0.00016" |
| Anvil | Interchangeable |
| Anvil Material | Carbide |
| Anvil Shape | Flat |
| Anvil Size | 0.256", 0.315" |
| Dimension Type | Inch |
| Features | Carbide Measuring Faces, Interchangeble Anvils |
| Includes | Setting Standards |
| Lock Nut Type | Lock Nut |
| Long Form Calibration Certificate | No |
| Max. Measurement | 2" |
| Maximum Measurement | 2" |
| Min. Measurement | 0.0" |
| Minimum Measurement - Inch | 0" |
| Operation Type | Mechanical |
| Range | 0" to 2" |
| Resolution | 0.0001" |
| Rotating Spindle | Yes |
| Spc Output | No |
| Spindle | Flat |
| Spindle Dia. | 0.256" |
| Spindle Material | Steel |
| Thimble Type | Ratchet |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Dimension Type | Accuracy | Resolution | Rotating Spindle | Range | Spc Output | Operation Type | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3506-150E | Inch, Metric | -0.00024" to +0.00024" | 0.00005", 0.001 mm | Yes | 0" to 6" | Yes | Digital | IP65 | €896.94 | |
| 3506-900E | Inch, Metric | -0.00063" to +0.00063" | 0.0001", 0.001 mm | Yes | 32" to 36" | Yes | Digital | IP65 | €1,975.20 | |
| 3506-800E | Inch, Metric | -0.00059" to +0.00059" | 0.0001", 0.001 mm | Yes | 28" to 32", 700 mm to 800 mm | Yes | Digital | IP65 | €1,744.63 | |
| 3506-301E | Inch, Metric | -0.00031" to +0.00031" | 0.0001", 0.001 mm | Yes | 8" to 12", 200 mm to 300 mm | Yes | Digital | IP65 | €986.37 | |
| 3506-1000E | Inch, Metric | -0.00067" to +0.00067" | 0.0001", 0.001 mm | Yes | 36" to 40" | Yes | Digital | IP65 | €2,165.72 | |
| 3506-600E | Inch, Metric | -0.00047" to +0.00047" | 0.0001", 0.001 mm | Yes | 20" to 24" | Yes | Digital | IP65 | €1,415.90 | |
| 3506-500E | Inch, Metric | -0.00043" to +0.00043" | 0.0001", 0.001 mm | Yes | 16" to 20", 400 mm to 500 mm | Yes | Digital | IP65 | €1,351.31 |
