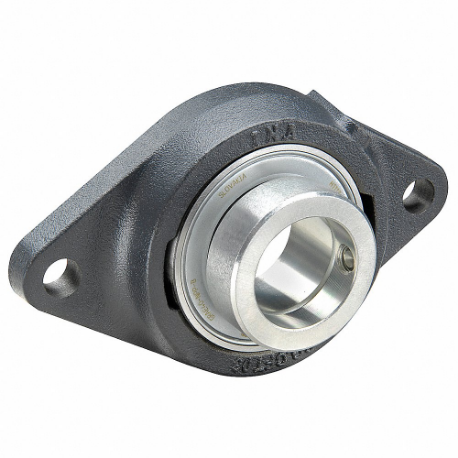

INA PCFT30-XL Flange Bearing, 2 Bolt, 30 mm Bore, Cast Iron, Eccentric Collar, 80 mm Length
Item: CR4MXEModel: PCFT30-XLCross Ref: 21ZG35
7 In Stock
Ships within 2 days via
10.00% off
€261.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bearing |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 100CR6 |
| Bore Dia. | 30 mm |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 19500N |
| Expansion Type | Fixed |
| Flange Thickness | 12 mm |
| Grade | Grade 100CR6 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Rhombus |
| Included Bearing | Radial Insert Ball |
| Includes | Text |
| Insert Material | Alloy Steel |
| Insert Type | Radial Ball |
| Load Direction | Radial |
| Lubricant Material | Lithium Complex Grease |
| Lubrication Openings | Threaded Lubrication Hole |
| Max. Temp. | 50°C |
| Min. Temp. | -30°C |
| Mount Hole Center-to-center Length | 116.5 mm |
| Mount Hole Size | 11.5 mm |
| Mounting Bolt Size | M10 |
| Number Of Mounting Holes | 2 |
| Overall Height | 142 mm |
| Overall Length | 80 mm |
| Overall Width | 40 mm |
| Rolling Element Rows | 1 |
| Seal Material | Nitrile Rubber |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Eccentric Collar |
| Split Housing | Not Split |
| Standards | Gtb14 Din1680-2 |
| Static Radial Load Capacity | 11300N |
Shipping Info:
| Ship weight (kg) | 0.92 |
| Ship height (cm) | 14.2 |
| Ship length (cm) | 8 |
| Ship width (cm) | 4 |
| Country of Origin | SK |
Product Variants
| Product | Model | Shaft Locking Type | Overall Length | Overall Width | Bore Dia. | Overall Height | Number Of Mounting Holes | Housing Type | Flange Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FLCTE12-XL | Eccentric Collar | 81 mm | 30.5 mm | 12 mm | 58.7 mm | 2 | Rhombus | 15 mm | €161.03 | |
|
FLCTE15-XL | Eccentric Collar | 81 mm | 30.5 mm | 15 mm | 58.7 mm | 2 | - | 15 mm | €166.90 | |
|
FLCTE17-XL | Eccentric Collar | 81 mm | 30.5 mm | 17 mm | 58.7 mm | - | Rhombus | 15 mm | €207.10 | |
 |
RCJTY60-N | Set Screws | 5 27/64" | 2 57/64" | 2.359" | 9 23/64" | 2 | Flange Bracket | 5/8" | €472.39 | |
 |
RCJT20-XL-N | Eccentric Collar | 61 mm | 45.6 mm | 20 mm | 112 mm | 2 | Rhombus | 10 mm | €209.06 | |
|
FLCTE20-XL | Eccentric Collar | 90.5 mm | 33 mm | 20 mm | 66.5 mm | 2 | Rhombus | 17 mm | €281.65 | |
|
PCJTY20-XL-N | Set Screws | 61 mm | 37 mm | 20 mm | 112 mm | 2 | Rhombus | 10 mm | €168.67 |
