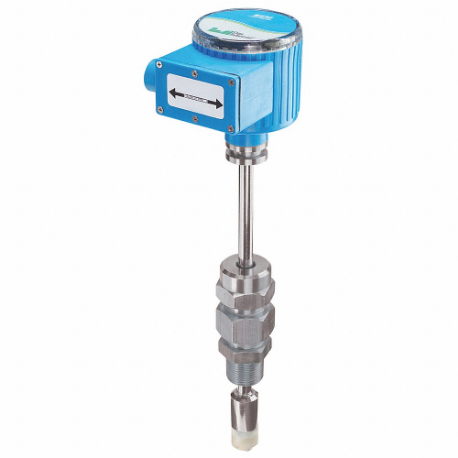

IMPELLER SDI0D2N00-0200 Electronic Flowmeter, 12 Inch To 36 Inch For Pipe Size, Insertion, 14 Deg To 150 Deg F
Item: CR4MTVModel: SDI0D2N00-0200Cross Ref: 49DF30
7 In Stock
Ships within 2 days via
10.00% off
€1,947.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Flowmeter |
| Accuracy | -1% to +1% |
| Compatible Flow Material | Water |
| Connection Size | 36" |
| Connection Type | Insertion |
| Display Type | Not Applicable |
| Fitting Type | Insertion |
| Flow Range | 352-63452 GPM |
| Flow Rate | 1-20 GPM |
| Flow Rate - Maximum | 20 GPM |
| Flow Rate - Minimum | 1 GPM |
| Flow Rate Range | 352-63452 GPM |
| Flowmeter Type | Paddlewheel |
| Fluid Connection | 36" INSERTION |
| Fluid Temp. | +14°F to +150°F |
| For Pipe Size | 12" to 36" |
| Frequency - Maximum | 800 Hz |
| Frequency - Minimum | Not Applicable |
| Housing Material | Stainless Steel |
| Includes Flow Rate Adjustment Knob | No |
| Includes Pressure Gauge | No |
| Includes Totalizer | Yes |
| Max. Media Temperature | 150°F |
| Max. Operating Pressure | 1000 psi |
| Max. Voltage | 35V DC |
| Media Temperature Range | 14°F to 150°F |
| Min. Media Temperature | 14°F |
| Mounting Location | Insertion |
| Mounting Orientation | Horizontal |
| O-ring Material | Viton |
| Output Type | Standard Frequency Pulse |
| Product Type | Flow Sensor |
| Pulse Rate | Not Applicable |
| Rotor Material | Stainless Steel |
| Seal Material | Viton |
| Sensor Type | Paddle Wheel |
| Shaft Material | Tungsten Carbide |
| Type | Impeller |
| Unit Of Measure | Gallons |
| Viscosity - Maximum | 32.6 SUS |
| Wetted Material Grade | Alloy Steel, Brass, Brass , Grade B16, Grade C360 |
Shipping Info:
| Ship weight (kg) | 3.51 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Connection Size | Connection Type | Max. Operating Pressure | Accuracy | Max. Viscosity | Min. Flow Rate | Max. Flow Rate | Min. Media Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SM2001 | 2" | BSPP | 232 psi | -0.8% to +0.8% | 70 SUS | - | - | - | €2,314.79 | |
 |
SM9001 | 2" | BSPP | 232 psi | -0.8% to +0.8% | 70 SUS | - | - | - | €2,266.48 | |
 |
SM8001 | 1" | BSPP | 232 psi | - | - | - | - | - | €2,006.46 | |
 |
SM6001 | 1/2" | BSPP | 232 psi | ± (0.8 MW + 0.5 MEW) | 70 SUS | - | - | - | €1,676.38 | |
|
SM6004 | 1/2" | BSPP | 232 psi | -2% to +2% | 70 SUS | - | - | - | €1,583.51 | |
 |
SM7004 | 3/4" | BSPP | 232 psi | -2% to +2% | 70 SUS | - | - | - | €1,603.57 | |
 |
SM7001 | 3/4" | BSPP | 232 psi | -0.8% to +0.8% | 70 SUS | - | - | - | €1,699.17 |
