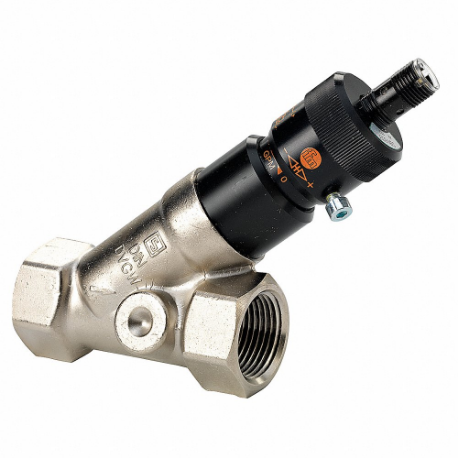

IFM SBN346 Flow Switch, 1 NPT Connection Size, 26.4, 363 PSI Max. Pressure, 24 VDC, DC/PNP, 10mA
Item: CR4LMPModel: SBN346Cross Ref: 24JZ11
7 In Stock
Ships within 2 days via
10.00% off
€656.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flow Switch |
| Connection Size | 1" |
| Connection Type | NPT |
| Contact Rating | 10 mA , 10Ma , Not Applicable |
| Contact Rating (dc) | 100 mA |
| Filter Rating - Maximum | 200 µm |
| Finish | Nickel Plated |
| Flow Rate - Maximum | 1.32 GPM |
| Flow Rate - Minimum | 1.32 GPM |
| Flow Rate Range | 1.32 GPM |
| Flow Switch Type | Piston |
| For Pipe Size | Not Applicable |
| Height | 113 mm |
| Housing Material | Aluminum |
| Length | 127 mm |
| Material Of Construction | Nickel Plated Brass |
| Max. Ambient Temp. | 140°F |
| Max. Filter Rating | 200 µm |
| Max. Flow Gpm | 26.4 GPM |
| Max. Flow Rate | 1.32 GPM |
| Max. Media Temp. | 185°F |
| Max. Pressure | 363 psi |
| Media Temperature Range | 32°F to 185°F |
| Min. Ambient Temp. | 32°F |
| Min. Flow Rate | 1.32 GPM |
| Min. Flow Rate (gpm) | 1.32 GPM |
| Min. Fluid Temp. | 32°F |
| Min. Media Temp. | 32°F |
| Nameplate Voltage | 10-30V DC |
| Overall Height | 113 mm |
| Overall Length | 127 mm |
| Overall Width | 91.5 mm |
| Phase | Not Applicable |
| Recommended Filtration (microns) | 50 µm |
| Set Point Configuration | Adjustable |
| Set Point Type | Adjustable |
| Switch Enclosure | IP67 |
| Switch Position | Normally Open |
| Switch Type | PNP |
| Voltage | 24V DC |
| Wetted Material Grade | Grade 301, Grade 304 , Stainless Steel, Brass, PBT, Polyolefin, Polyphenylene, Polypropylene, Viton |
| Width | 91.5 mm |
Shipping Info:
| Ship weight (kg) | 0.92 |
| Ship height (cm) | 11.3 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 9.15 |
| Country of Origin | DE |
