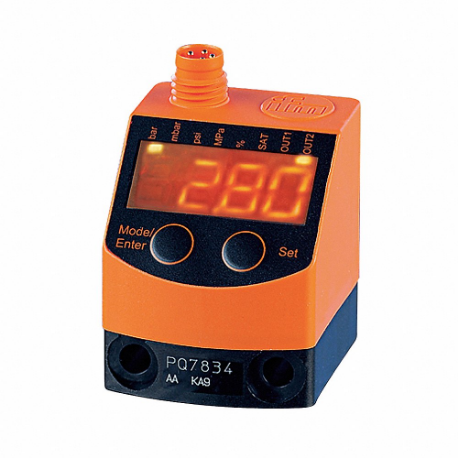

IFM PQ7834 Compound Digital Pressure Switch, -14.5 PSI Vac To 145 PSI, Pnp, G1/8, 4 Pin M8 Connector
Item: CR4LVUModel: PQ7834Cross Ref: 35T535
7 In Stock
Ships within 2 days via
10.00% off
€351.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Switch |
| Body Material | Polyester, PBT |
| Burst Pressure | 435 psi |
| Circuit Type | PNP |
| Contact Form | SPST |
| Digital Output Type | PNP |
| Electrical Connection | 4 Pin M8 Connector |
| Electrical Connection Type | 4 Pin M8 Connector |
| For Use With | Air |
| Housing Material | Fkm, Pbt, Polyester |
| Integrated Watchdog | Yes |
| Ip Rating | 65 |
| Manufacturer Warranty Length | 5 yrs. |
| Media | Compressed Air |
| Minimum Set Point | 13 psi |
| Number Of Digital Outputs | 2 |
| Off Set Point | -14 psi to +144 psi |
| Offset Point | -14 psi to +144 psi |
| On Set Point | -13 psi to +145 psi |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | 32°F |
| Output Amps | 100 mA |
| Output Current | 100 mA |
| Output Current Rating | 0.1A |
| Output Signal | Switching Signal |
| Overall Depth | 1.26" |
| Overall Height | 1.65" |
| Overall Width | 1.18" |
| Pressure - Maximum | 145 psi |
| Pressure - Minimum | -15 psi |
| Pressure Connection Type | G1/8 BSP |
| Process Connection Size | 1/8" |
| Product Type | Digital Pressure Sensor |
| Range | -14.5 psi to +145 psi |
| Reset Point - Maximum | 144 psi |
| Reset Point - Minimum | -14 psi |
| Reverse Polarity Protection | Yes |
| Series | PQ Series |
| Set Point - Maximum | 145 psi |
| Short-circuit Protection | Yes |
| Special Features | Gold-Plated Contacts |
| Temp. Range | +13°F to +176°F |
| Total Number Of Outputs | 2 |
| Type Of Short-circuit Protection | Pulsed |
| Voltage Rating - Maximum | 32V DC |
| Wetted Materials | Brass, FKM, PBT, Silicon |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Contact Form | Electrical Connection | Range | Temp. Range | Body Material | Burst Pressure | Offset Point | On Set Point | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| PN7297 | SPST | 4 Pin M12 Connector | 0 psi to 14.5 psi | -13°F to +176°F | Stainless Steel | 450 psi | 0.05 psi to 14.45 psi | 0.1 psi to 14.5 psi | €668.88 | |
| PN7296 | SPST | 4 Pin M12 Connector | 0 psi to 36.2 psi | -13°F to +176°F | Stainless Steel | 725 psi | 0.2 psi to 36 psi | 0.4 psi to 36.2 psi | €649.33 | |
| PN7293 | (2) SPST | 4 Pin M12 Connector | 0 psi to 362 psi | -13°F to +176°F | Stainless Steel | 5075 psi | 2 psi to 360 psi | 4 psi to 362 psi | €649.33 | |
| PN7271 | SPST | 4 Pin M12 Connector | 0 psi to 3620 psi | -13°F to +176°F | Stainless Steel | 15950 psi | 20 psi to 3600 psi | 40 psi to 3620 psi | €649.33 | |
| PN7270 | SPST | 4 Pin M12 Connector | 0 psi to 5800 psi | -13°F to +176°F | Stainless Steel | 24650 psi | 20 psi to 5780 psi | 40 psi to 5800 psi | €668.88 | |
| PN7292 | SPST | 4 Pin M12 Connector | 0 psi to 1450 psi | -13°F to +176°F | Stainless Steel | 9400 psi | 5 psi to 1445 psi | 10 psi to 1450 psi | €649.33 | |
| PN7299 | SPST | 4 Pin M12 Connector | -14.5 psi to +14.5 psi | -13°F to +176°F | Stainless Steel | 725 psi | -14.4 psi to +14.4 psi | -14.3 psi to +14.5 psi | €668.88 |
