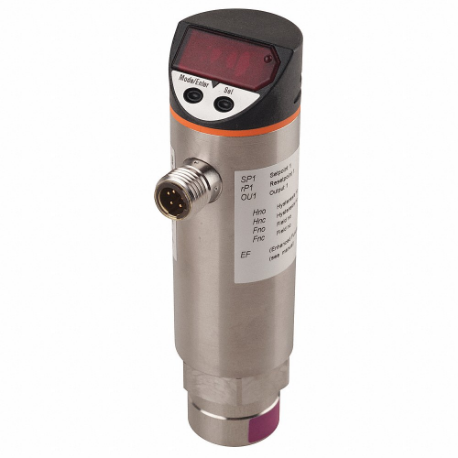

IFM PN4223 Digital Pressure Switch, 0 To 363 PSI, Triac, 1/4 Inch Fnpt
Item: CR4LWAModel: PN4223Cross Ref: 35T558
7 In Stock
Ships within 2 days via
10.00% off
€699.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Switch |
| Adjustment Of The Switch Point | Programming Button |
| Body Material | Stainless Steel |
| Burst Pressure | 5075 psi |
| Circuit Type | Triac |
| Compatible Media | Gas, Liquid |
| Contact Form | SPST |
| Digital Output Type | Triac |
| Electrical Connection Type | 5 Pin 1/2" UNF Connector |
| For Use With | Air And Liquids |
| Integrated Watchdog | Yes |
| Ip Rating | 65 |
| Manufacturer Warranty Length | 5 yrs. |
| Number Of Digital Outputs | 1 |
| Off Set Point | 2 psi to 362 psi |
| Offset Point | 2 psi to 362 psi |
| On Set Point | 4 psi to 363 psi |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Output Current | 2.5A |
| Output Current Rating | 2.5A |
| Output Signal | Switching Signal |
| Overall Depth | 1.06" |
| Overall Height | 4.72" |
| Overall Width | 1.34" |
| Overload Protection | No |
| Pressure - Maximum | 262 psi |
| Pressure - Minimum | 0 psi |
| Pressure Connection Size | 1/4" |
| Pressure Connection Type | NPT |
| Process Connection Size | 1/4" |
| Process Connection Type | FNPT |
| Product Type | Digital Pressure Sensor |
| Range | 0 psi to 363 psi |
| Reset Point - Maximum | 360 psi |
| Reset Point - Minimum | 2 psi |
| Reverse Polarity Protection | No |
| Series | PN Series |
| Set Point - Maximum | 363 psi |
| Set Point - Minimum | 4 psi |
| Short-circuit Proof | No |
| Temp. Range | +13°F to +176°F |
| Total Number Of Outputs | 1 |
| Voltage Rating - Maximum | 265V AC |
| Wetted Materials | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Contact Form | Electrical Connection | Range | Temp. Range | Body Material | Burst Pressure | Offset Point | On Set Point | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| PN7297 | SPST | 4 Pin M12 Connector | 0 psi to 14.5 psi | -13°F to +176°F | Stainless Steel | 450 psi | 0.05 psi to 14.45 psi | 0.1 psi to 14.5 psi | €668.88 | |
| PN7296 | SPST | 4 Pin M12 Connector | 0 psi to 36.2 psi | -13°F to +176°F | Stainless Steel | 725 psi | 0.2 psi to 36 psi | 0.4 psi to 36.2 psi | €649.33 | |
| PN7293 | (2) SPST | 4 Pin M12 Connector | 0 psi to 362 psi | -13°F to +176°F | Stainless Steel | 5075 psi | 2 psi to 360 psi | 4 psi to 362 psi | €649.33 | |
| PN7271 | SPST | 4 Pin M12 Connector | 0 psi to 3620 psi | -13°F to +176°F | Stainless Steel | 15950 psi | 20 psi to 3600 psi | 40 psi to 3620 psi | €649.33 | |
| PN7270 | SPST | 4 Pin M12 Connector | 0 psi to 5800 psi | -13°F to +176°F | Stainless Steel | 24650 psi | 20 psi to 5780 psi | 40 psi to 5800 psi | €668.88 | |
| PN7292 | SPST | 4 Pin M12 Connector | 0 psi to 1450 psi | -13°F to +176°F | Stainless Steel | 9400 psi | 5 psi to 1445 psi | 10 psi to 1450 psi | €649.33 | |
| PN7299 | SPST | 4 Pin M12 Connector | -14.5 psi to +14.5 psi | -13°F to +176°F | Stainless Steel | 725 psi | -14.4 psi to +14.4 psi | -14.3 psi to +14.5 psi | €668.88 |
