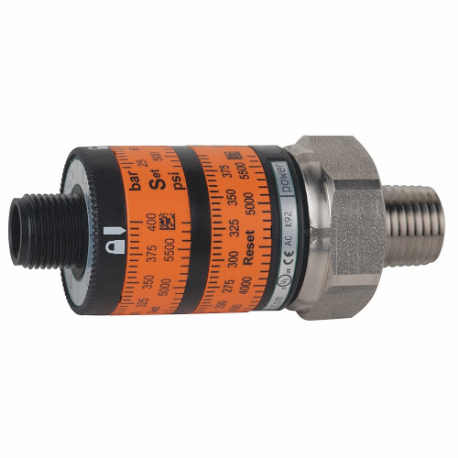

IFM PK6220 Pressure Switch, 1/4 Inch Mnpt, 0 To 5800 Psi, 4 Pin M12 Connector, Electronic Pnp
Item: CR4LWFModel: PK6220Cross Ref: 35T544
7 In Stock
Ships within 2 days via
10.00% off
€311.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Switch |
| Ac Contact Rating | Not Applicable |
| Actuator Style | Transducer |
| Adjustable Range Type | Field Adjustable |
| Adjustment Of The Switch Point | Setting Rings |
| Burst Pressure | 23200 psi |
| Circuit Type | Electronic Pnp |
| Compatible Media | Gas, Liquid |
| Compatible With | Air And Liquids |
| Dc Contact Rating | 0.5A @ 9.6-32V |
| Digital Output Type | PNP |
| Electrical Connection Size | M12 |
| Electrical Connection Type | M12 Connector |
| Grade | Grade 316 |
| Housing Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Ip Rating | IP67 |
| Maximum Reset Point | 5685 psi |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | Not Rated |
| No. Of Contact Form | 4 , NO/NC |
| Number Of Digital Outputs | 2 |
| Off Set Point | 175 psi to 5685 psi |
| Offset Point | 175 psi to 5685 psi |
| On Set Point | 290 psi to 5800 psi |
| Operating Temp. Range | +13°F to +176°F |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Output Signal | Switching Signal |
| Overload Protection | Yes |
| Power Required | 10-32V DC |
| Pressure - Maximum | 5800 psi |
| Pressure - Minimum | 0 psi |
| Pressure Connection Type | NPT |
| Process Connection Size | 1/4" |
| Process Connection Type | MNPT |
| Range | 0 psi to 5800 psi |
| Reset Point - Minimum | 175 psi |
| Resistance Properties | Insulation Resistant, Shock Resistant, Vibration Resistant |
| Reverse Polarity Protection | Yes |
| Series | PK Series |
| Set Point - Maximum | 5800 psi |
| Set Point - Minimum | 290 psi |
| Short-circuit Protection | Yes |
| Total Number Of Outputs | 2 |
| Type Of Short-circuit Protection | Pulsed |
| Wetted Material Grade | Grade 316L , Stainless Steel |
| With Scale | Yes |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | RO |
Product Variants
| Product | Model | Burst Pressure | Range | Offset Point | On Set Point | Compatible With | Electrical Connection Type | Ip Rating | Circuit Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

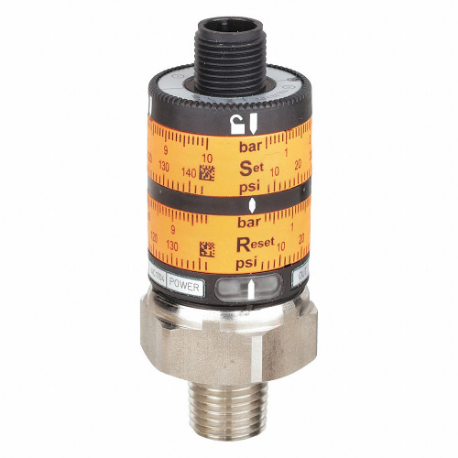

PK6224 | 4350 psi | 0 psi to 145 psi | 5 psi to 142 psi | 7.5 psi to 145 psi | Air And Liquids | M12 Connector | IP67 | Electronic Pnp | €313.77 | |
 |

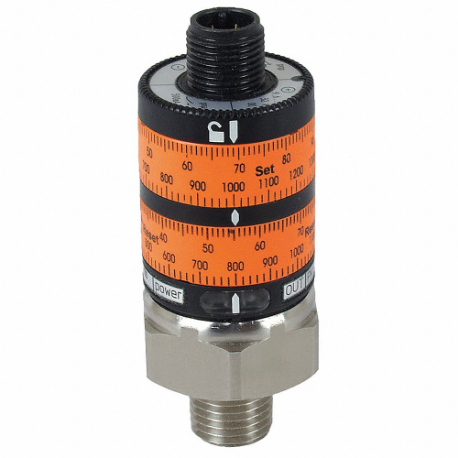

PK6222 | 14500 psi | 0 psi to 1450 psi | 50 psi to 1420 psi | 75 psi to 1450 psi | Air And Liquids | M12 Connector | IP67 | Electronic Pnp | €313.77 |
