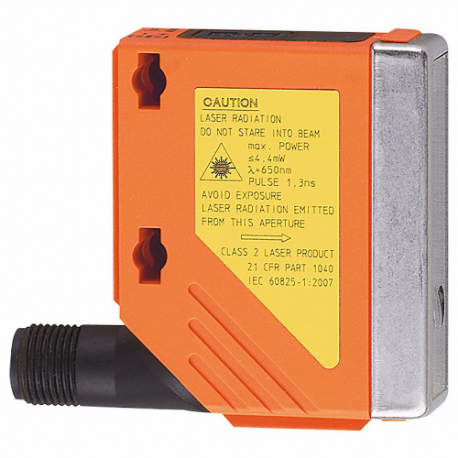

IFM O5D100 Laser Distance Sensor, PNP, M12 Connector, Polyamide, 46.8 mm Length
Item: CR4LZVModel: O5D100Cross Ref: 801T90
7 In Stock
Ships within 2 days via
10.00% off
€376.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sensor |
| Background Suppression Available | Yes |
| Body Material | Polyamide |
| Circuit Type | PNP |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Emitted Sensor Light | Red Light |
| Housing | Rectangular |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP65, IP67 |
| Lens Alignment | Side Lens |
| Light Spot Dimensions Refer To | 2m |
| Max. Load Current | 100 mA |
| Measurement Range | 0.03m to 2m |
| No. Of Digital Outputs | 2 |
| Number Of Pins | 4 |
| Operating Frequency | 11 Hz |
| Operating Temp. | -25°C to +60°C |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | PNP |
| Output Circuit Contact Form | 1NO/1NC |
| Output Circuit Type | PNP |
| Output Mode | NC/No |
| Overall Depth | 47 mm |
| Overall Height | 56 mm |
| Overall Width | 18 mm |
| Overload Protection | Yes |
| Process Data Analogue | 1 |
| Process Data Binary | 1 |
| Product Type | Photoelectric Sensor |
| Response Time | 6.6 ms |
| Reverse Polarity Protection | Yes |
| Sensing Distance - Max. | 2m |
| Sensor Body Style | Rectangular |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Short-circuit Protection | Yes |
| Sio Mode | Yes |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Switching Frequency | 11 Hz |
| Total Number Of Outputs | 2 |
| Type Of Light | Red Light |
| Type Of Short-circuit Protection | Pulsed |
| Width | 18.2 mm |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 5.6 |
| Ship length (cm) | 4.68 |
| Ship width (cm) | 1.82 |
| Country of Origin | DE |
Product Variants
| Product | Model | Ip Rating | Response Time | Body Material | Measurement Range | Operating Temp. | Case Material | Overall Width | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

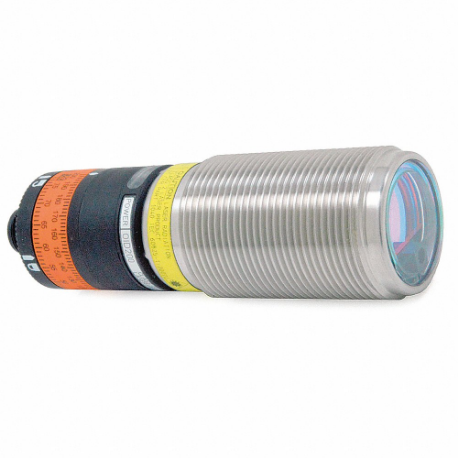

OID200 | IP65, IP67 | 6.6 ms | Stainless Steel | 0.03m to 2m | -25°C to +60°C | Stainless Steel | - | - | €427.71 | |
 |

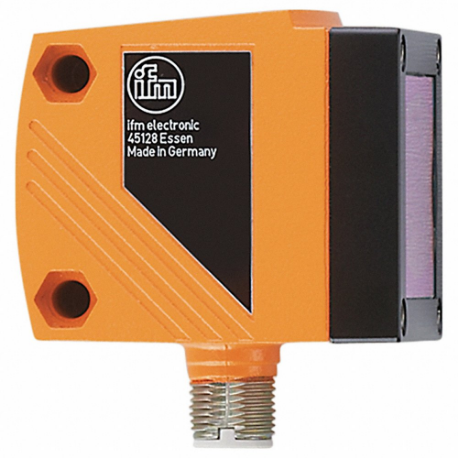

O1D100 | IP67 | 6 ms | Zinc | 0.2m to 10m | 10°C to +60°C | Die Cast Zinc | 42 mm | 59 mm | €1,065.07 | |
 |

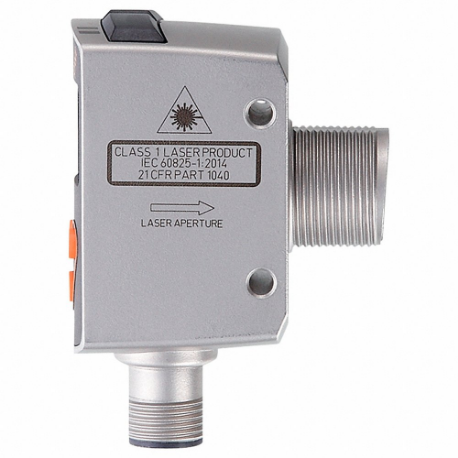

OGD583 | IP65, IP67 | 5 ms | Stainless Steel | 0.08m to 1.5m | -25°C to +60°C | Stainless Steel | 23 mm | 61.7 mm | €676.53 | |
 |

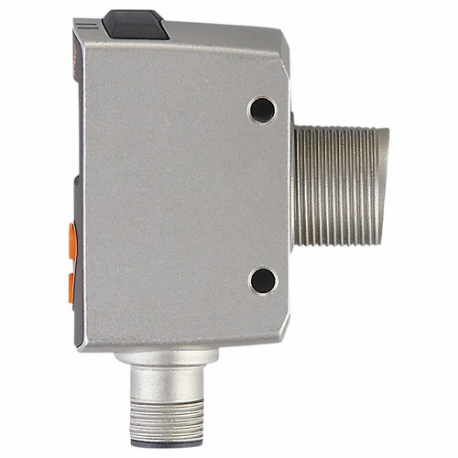

OGD596 | IP65, IP67 | 6 ms | Stainless Steel | 0.025m to 0.3m | -25°C to +50°C | Stainless Steel | 23 mm | 61.7 mm | €606.96 | |
 |

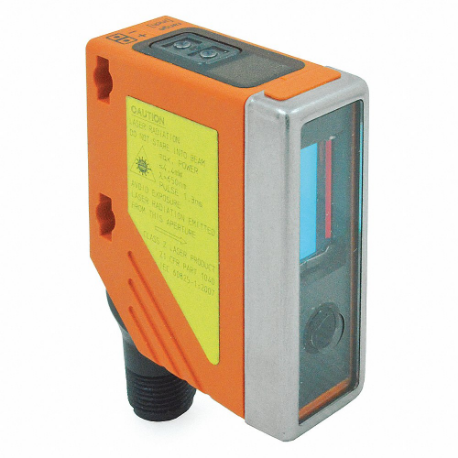

O5D101 | IP65, IP67 | 6.6 ms | Polyamide | 0.03m to 2m | -25°C to +60°C | Polyamide | 18 mm | 46.8 mm | €351.84 |
