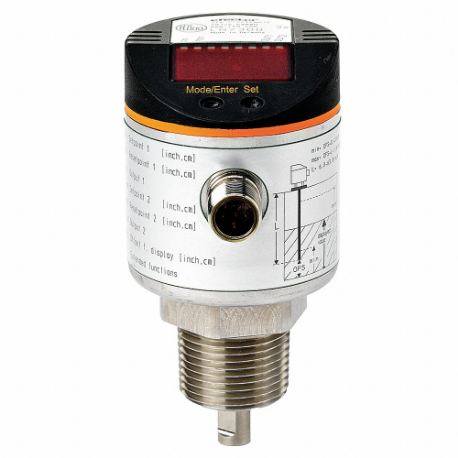

IFM LR3300 Electronic Level Sensor, 18 To 30VDC
Item: CR4LNTModel: LR3300Cross Ref: 24JZ40
7 In Stock
Ships within 2 days via
10.00% off
€1,125.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 0.18A |
| Accuracy | -7 mm to +7 mm |
| Body Material | Stainless Steel |
| Connection Size | 3/4" |
| Connection Type | NPT |
| Deadband | 5.9" |
| Enclosure Rating | IP67 |
| Float Diameter | 1/4" |
| Float Length | Not Applicable |
| Float Material | Not Applicable |
| For Media Type | Water |
| Height | 3 2/5" |
| Material | Stainless Steel |
| Max. Media Temperature | 176°F |
| Max. Operating Pressure | 232 psi |
| Mounting Orientation | Vertical |
| Nameplate Voltage | 18/30V DC |
| Number Of Analogue Outputs | 1 |
| Number Of Digital Outputs | 1 |
| Number Of Outputs - Analog | 1 |
| Number Of Outputs - Digital | 1 |
| Output Wire Configuration | 4 Wire |
| Overall Dia. | 1 24/25" |
| Overall Length | 2 1/2" |
| Overload Protection | Yes |
| Probe Material | Stainless Steel |
| Probe Material Grade | Grade 316 |
| Probe Type | Rod |
| Process Connection | 3/4" |
| Process Connection Type | NPT |
| Process Data Analogue | 1 |
| Process Data Binary | 1 |
| Product Type | Guided Wave Radar |
| Range | 63" |
| Required Master Port Type | A |
| Resolution | 5 mm |
| Reverse Polarity Protection | Yes |
| Short-circuit Protection | Yes |
| Sio Mode | Yes |
| Stem Length | 63" |
| Stem Material | 316 Stainless Steel |
| Temp. Range | +32°F to +176°F |
| Total Number Of Outputs | 2 |
| Type Of Short-circuit Protection | Pulsed, Thermal |
| Voltage | 18-30V DC |
| Width | 2 2/5" |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
