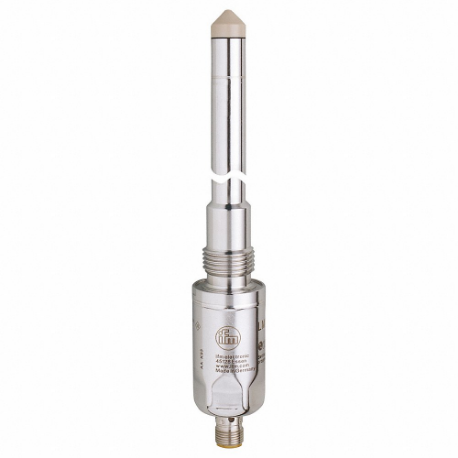

IFM LMT104 Point Level Sensor, Point Level Sensor, Stainless Steel, 12 mm Connection Size
Item: CR4LPCModel: LMT104Cross Ref: 801T86
7 In Stock
Ships within 2 days via
€527.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 0.55-0.3A |
| Accuracy | -2 mm to +2 mm |
| Body Material | Stainless Steel |
| Connection Size | 1/2" |
| Enclosure Rating | IP68, IP69K |
| Float Dia. | 1/2" |
| Float Length | Not Applicable |
| Float Material | Not Applicable |
| For Media Type | Nonhazardous Liquids, Powders, Viscous Fluids |
| Hygienic Standards | FDA |
| Max. Liquid Temp. | 100°C |
| Max. Media Temp. | 100°F |
| Max. Operating Pressure | 580 psi |
| Max. Pressure | 40 Bar |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Voltage | 18/30V DC |
| No. Of Digital Outputs | 2 |
| No. Of Outputs Digital | 2 |
| Operating Pressure | 40 Bar |
| Output Wire Configuration | 4 Wire |
| Overall Length | 10" |
| Overload Protection | Yes |
| Probe Material | PEEK, Stainless Steel |
| Probe Type | Rod |
| Process Connection | 1/2" |
| Process Data Analogue | 1 |
| Process Data Binary | 2 |
| Product Type | Point Level Sensor |
| Range | 6" |
| Required Master Port Type | A |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Sio Mode | Yes |
| Stem Length | 6" |
| Stem Material | 316 Stainless Steel, Peek |
| Total No. Of Outputs | 2 |
| Type Of Short-circuit Protection | Pulsed |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Range | Hygienic Standards | Float Dia. | Float Length | Max. Pressure | Stem Material | Mounting Orientation | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LMT102 | 1 1/2" | 3A, FDA | 1/2" | Not Applicable | 40 Bar | 316 Stainless Steel, Peek | Horizontal, Vertical | 580 psi | €523.55 | |
 |
LMT100 | 2/5" | 3A, FDA | 1/2" | Not Applicable | 40 Bar | 316 Stainless Steel, Peek | Horizontal, Vertical | 580 psi | €490.15 |
