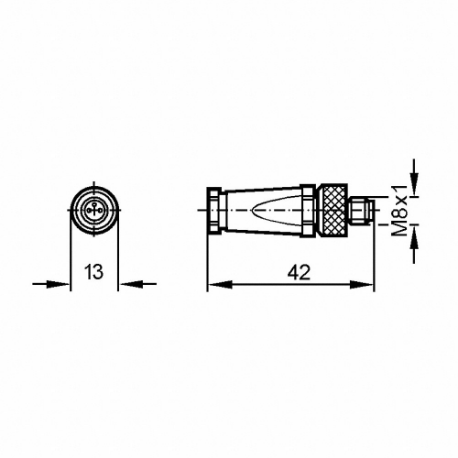

IFM L33600 M8 Circular Connector, A Coded, M8 Male Thread with Straight Connection, 3 Pin Contacts
Item: CR4KZDModel: L33600Cross Ref: 787GF7
7 In Stock
Ships within 2 days via
10.00% off
€30.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connector |
| Application | DC Power, Gigabit Internet, Sensors, Signal |
| Cable Outside Diameter | 5 mm |
| Coding | A |
| Connection Finish | Gold Plated |
| Connection Type | Plated Contacts |
| Connector Application | A Coded For Signal, Low Power, And Gigabit Data |
| Connector Body Type | Pin |
| Connector Configuration | M8 Male Thread With Straight Connection |
| Connector Gender | Male |
| Connector Orientation | Straight |
| Connector Size | M8 |
| Connector Type | M8 Male Thread With Straight Connection |
| For Max. Cable Dia. | 5 mm |
| Housing | Nickel Plated Brass |
| Housing Finish | Nickel Plated |
| Housing Material | Brass |
| Includes Nuts | Yes |
| Ip Rating | IP67 |
| Max. Operating Temp. | 194°F |
| Min. Operating Temp. | -13°F |
| Mounting Style | Male Thread |
| Mounting Type | Male Thread |
| Nominal Voltage | 60V AC/75V DC |
| Number Of Contacts | 3 |
| Number Of Poles | 3 |
| Pole Type | Pin |
| Temp. Range | -13°F to +194°F |
| Thread Size | M8 |
| Voltage Rating | 60V AC/75V DC |
| Wiring Type | Solder |
Shipping Info:
| Ship weight (kg) | 4.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Min. Operating Temp. | Max. Operating Temp. | Number Of Poles | Connector Body Type | Housing Material | Voltage Rating | Mounting Type | Number Of Contacts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

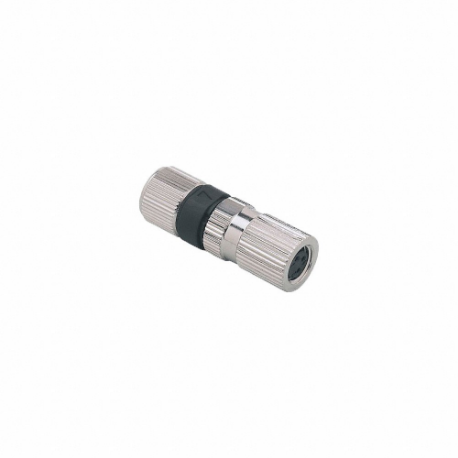

E11552 | -13°F | 194°F | 3 | Socket | Nylon | 45V AC/70V DC | Female Thread | 3 | €33.01 | |
 |

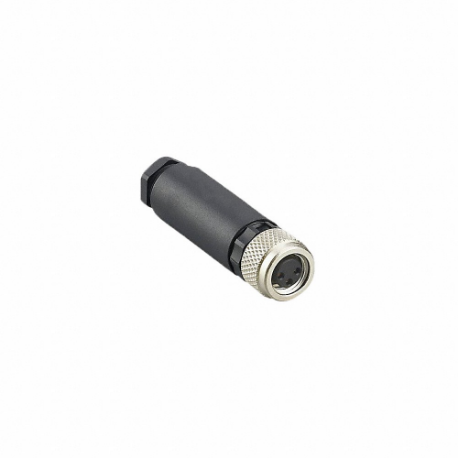

E12463 | -40°F | 185°F | 3 | Socket | Nylon, Polyester | 30V AC/DC | Female Thread | 3 | €29.51 | |
 |
E12464 | -40°F | 185°F | 4 | Socket | Nylon, Polyester | 30V AC/DC | Female Thread | 4 | €31.02 | |
 |

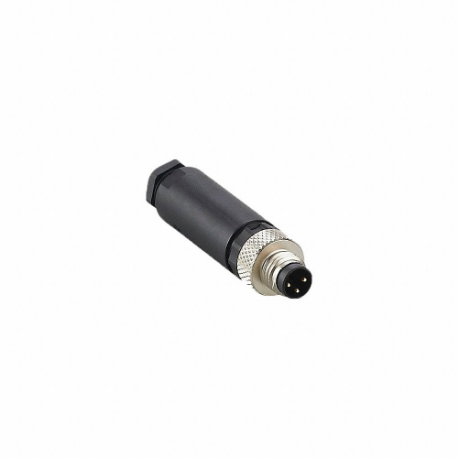

E10919 | -13°F | 185°F | 3 | Pin | Nylon | 60V DC | Male Thread | 3 | €29.91 | |
 |

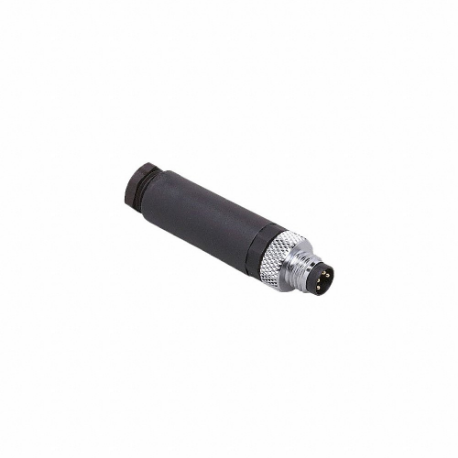

E11255 | -13°F | 185°F | 4 | Pin | Nylon | 30V DC | Male Thread | 4 | €34.10 | |
 |

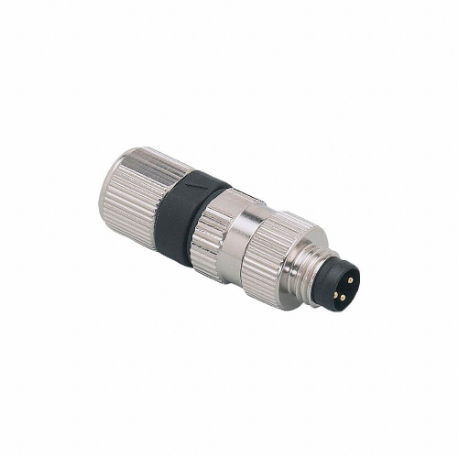

E11550 | -13°F | 194°F | 3 | Pin | Nylon | 50V AC/75V DC | Male Thread | 3 | - | RFQ
|
