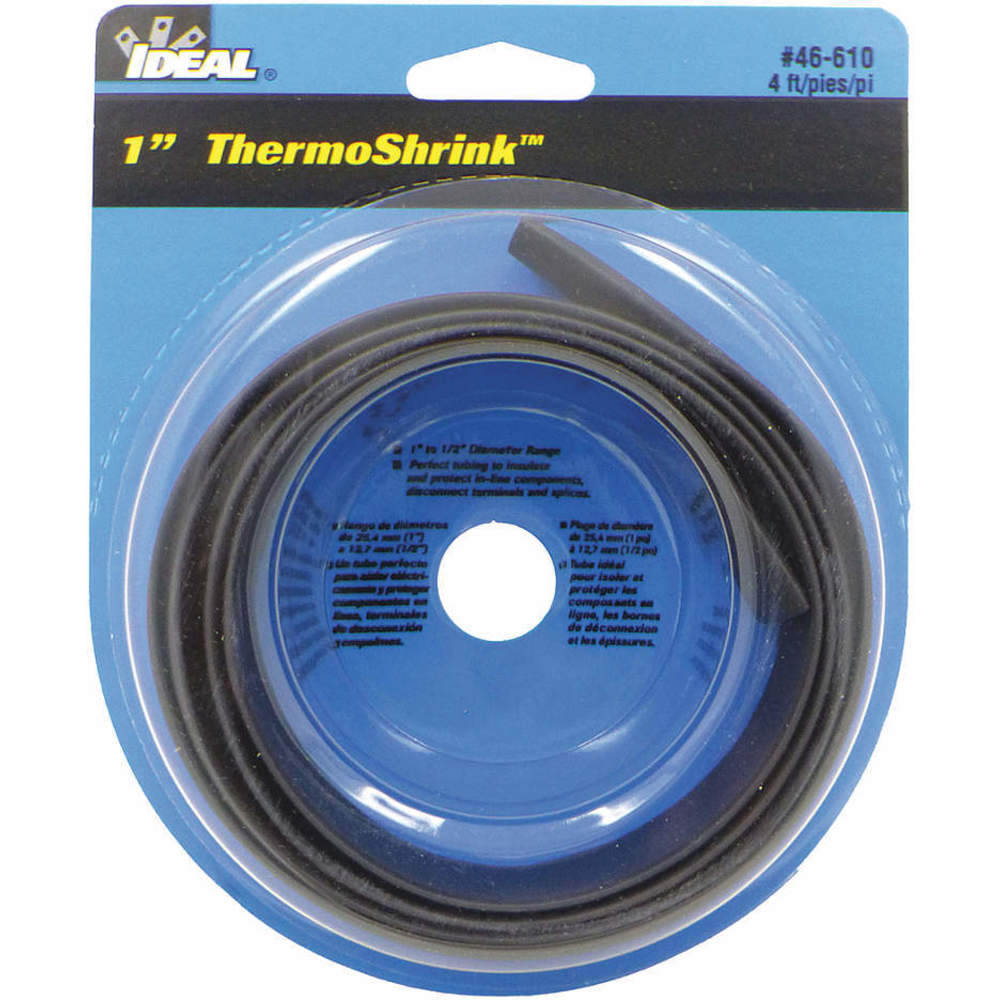

IDEAL 46-610 Shrink Tubing 1.043 Inch Id Black 4 Feet
Item: AF9CUKModel: 46-610Cross Ref: 29UJ80
7 In Stock
Ships within 2 days via
10.00% off
€392.09 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Heat Shrink Tubing |
| Adhesive Lined | No |
| Color | Black |
| Dielectric Strength | 600V |
| Flame Retardant | Yes |
| I.d. After Shrinking | 1/2" |
| I.d. Before Shrinking | 1.04" |
| Length | 4 ft. |
| Material | Polyolefin |
| Max. Temp. Rating | 125°F |
| Max. Voltage | 600V |
| Min. Shrink Temp. | 158°F |
| Min. Temp. Rating | -55°F |
| Package Style | Individual Pieces |
| Shrink Ratio | 2:1 |
| Shrink Temp. | 248 Degrees F |
| Shrink Temp. | 248°F |
| Shrink Tubing Properties | UV Light Resistant |
| Standards | Rohs, Ul 486D |
| Temp. Range | -55°F to +125°F |
| Tubing Wall Type | Thin Wall |
| Use With Wire Size | 2/0 Awg To 500 Mcm |
| Wall Thickness After Shrinking | 0.03" |
| Wire Range | 2/0 AWG to 500 kcmil |
Shipping Info:
| Ship weight (kg) | 0.55 |
| Ship height (cm) | 18.42 |
| Ship length (cm) | 18.42 |
| Ship width (cm) | 19.05 |
| HS code | 3917320000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Wall Thickness After Shrinking | Temp. Range | I.d. Before Shrinking | I.d. After Shrinking | Shrink Temp. | Use With Wire Size | Package Style | Max. Temp. Rating | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
46-330 | 0.03" | -67°F to +257°F | 1.04" | 1/2" | 158°F | 2/0 Awg To 500 Mcm | Cut To Length | 257°F | 1 | - | RFQ
|
 |
46-327 | 0.03" | -67°F to +257°F | 0.81" | 0.37" | 158°F | 2 Awg To 250 Mcm | Cut To Length | 257°F | 1 | €1,058.24 | |
 |
46-601 | 0.01" | -55°F to +125°F | 0.08" | 0.03" | 248°F | 16 AWG | Individual Pieces | 125°F | 5 | €228.70 | |
 |
46-602 | 0.02" | -55°F to +125°F | 0.12" | 0.05" | 158°F | 14 AWG to 12 AWG | Individual Pieces | 125°F | 5 | €209.58 | |
 |
46-603 | 0.02" | -55°F to +125°F | 0.15" | 0.06" | 158°F | 24 AWG to 20 AWG | Individual Pieces | 125°F | 5 | €194.38 | |
 |
46-604 | 0.02" | -55°F to +125°F | 0.21" | 0.09" | 248°F | 20 Awg To 14 Awg | Individual Pieces | 125°F | 5 | €206.18 | |
 |
46-605 | 0.02" | -55°F to +125°F | 0.27" | 0.13" | 248°F | 14 Awg To 8 Awg | Individual Pieces | 125°F | 5 | €262.87 |
