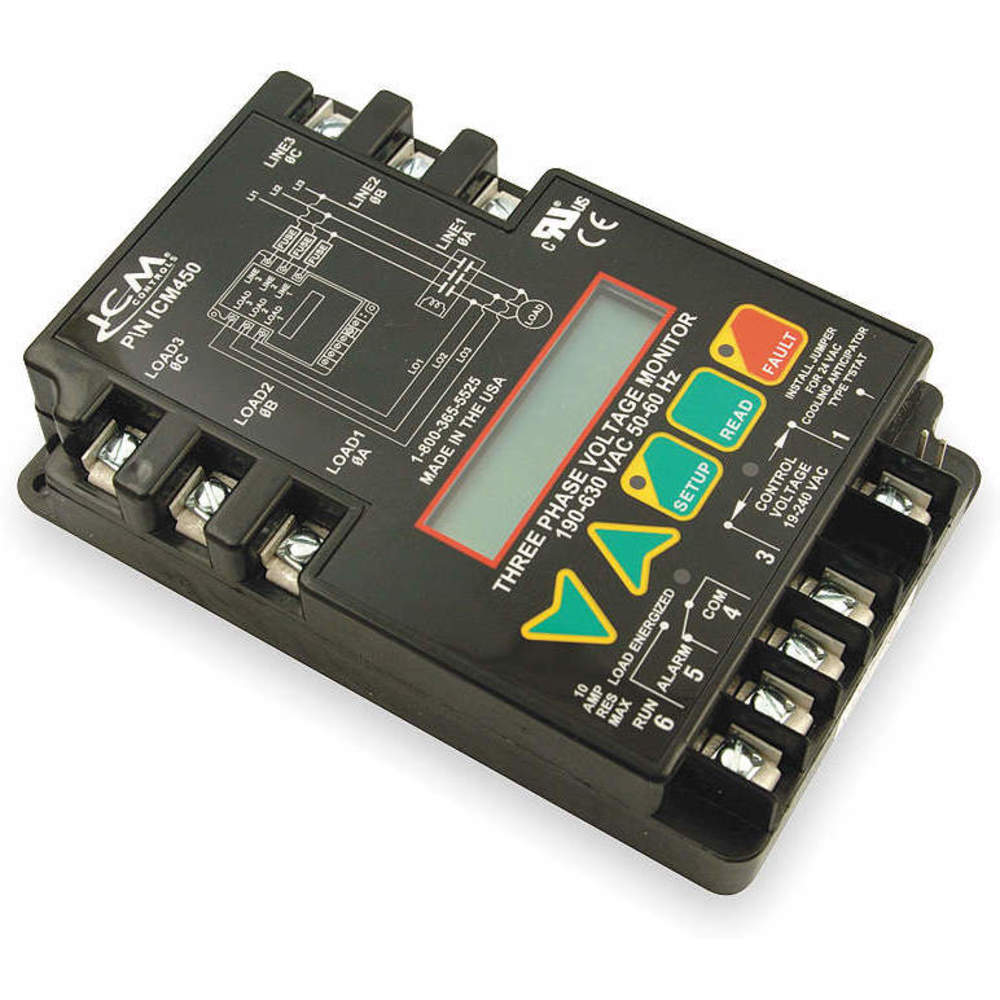

ICM ICM450A Monitor Line Voltage
Item: AD2VMRModel: ICM450ACross Ref: 3UW93
7 In Stock
Ships within 2 days via
€247.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Voltage Monitor |
| % Voltage Unbalance | 2% to 20% |
| Communication Protocol | Modbus Rs485 |
| Contact Form | SPDT |
| Control Voltage | 18-240V |
| Control Volts | 18 to 240 |
| Delay Type | Adjustable |
| Depth | 6 1/2" |
| Display Type | LCD |
| Frequency | 50/60 Hz |
| Height | 1 1/2" |
| Max. Control Voltage | 240V AC |
| Max. Operating Temp. | 149°F |
| Max. Voltage Measurement | 600V AC |
| Memory Storage | Programmable 25-Fault |
| Min. Contol Voltage | 18V AC |
| Min. Operating Temp. | -40°F |
| Min. Voltage Measurement | 190V AC |
| Monitored Measurements | Line Voltage |
| Mounting Type | Surface |
| Normally Closed Output Amps | 6A |
| Normally Open Output Amps | 10A |
| Overall Height | 1 1/16" |
| Overall Length | 6 1/2" |
| Overall Width | 4 3/4" |
| Phase | 3 |
| Programmable | Programmable |
| Reset Type | Automatic Reset, Manual Reset |
| Temp. | -40°F to 167°F |
| Temp. Rating | -40 To 167 F |
| Time Delay | 0 min. to 10 min. |
| True Rms | True Rms Measuring |
| Type | Manual Or Automatic Reset |
| Voltage | 190-630V |
| Width | 4 1/4" |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 14.99 |
| HS code | 9032904000 |
| Country of Origin | US |
Product Details:
- % Volts Unbalance (2 to 25, Adj.)
- Delay (Button Adjustable)
- Monitors (Voltage Unbalance, High/Low Voltage, Phase Loss, Reversal, Incorrect Sequencing and Rapid Short Cycling)
- N.O. Output (Amps) (10)
- NC Output (Amps) (6)
Product Variants
| Product | Model | Time Delay | Type | Voltage | Height | Depth | Control Voltage | Memory Storage | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

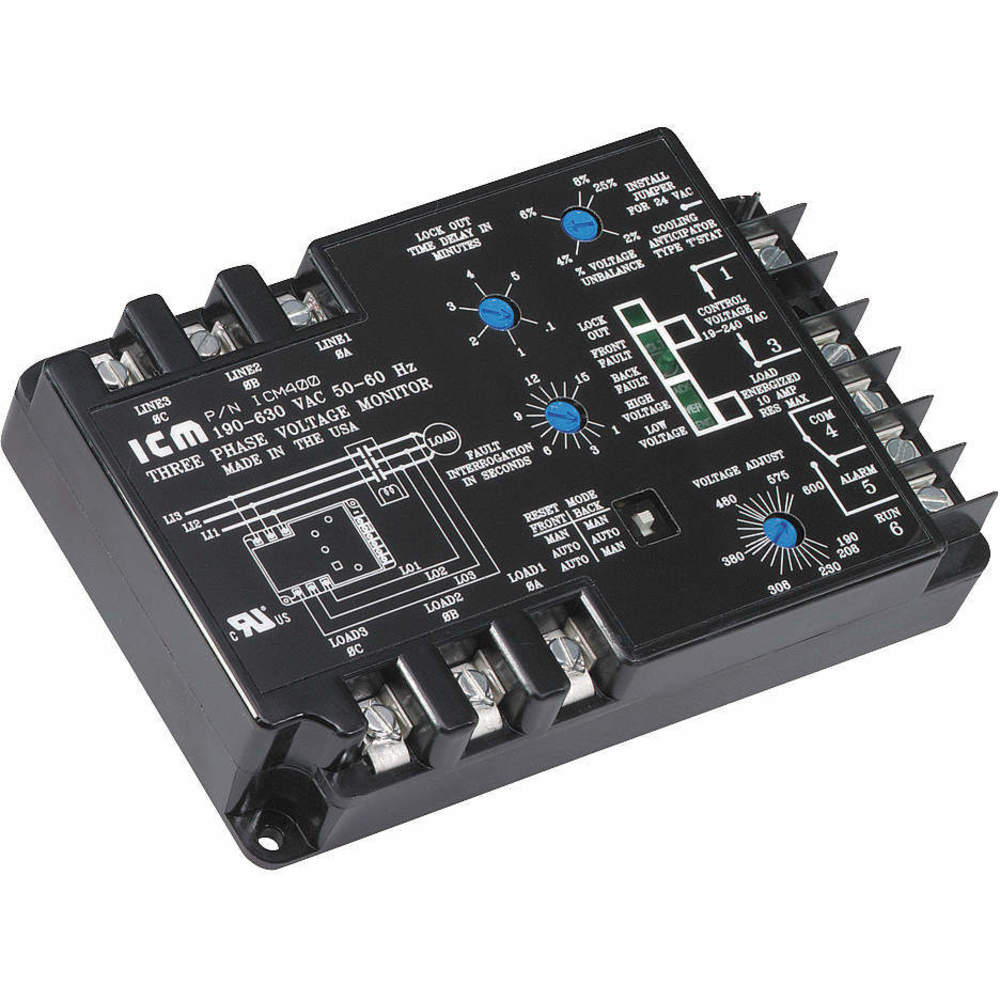

ICM400 | 1 min. to 5 min. | Manual Or Automatic Reset | 190-630V | - | - | 18-240V | Programmable 25-Fault | 3 | - | RFQ
|
