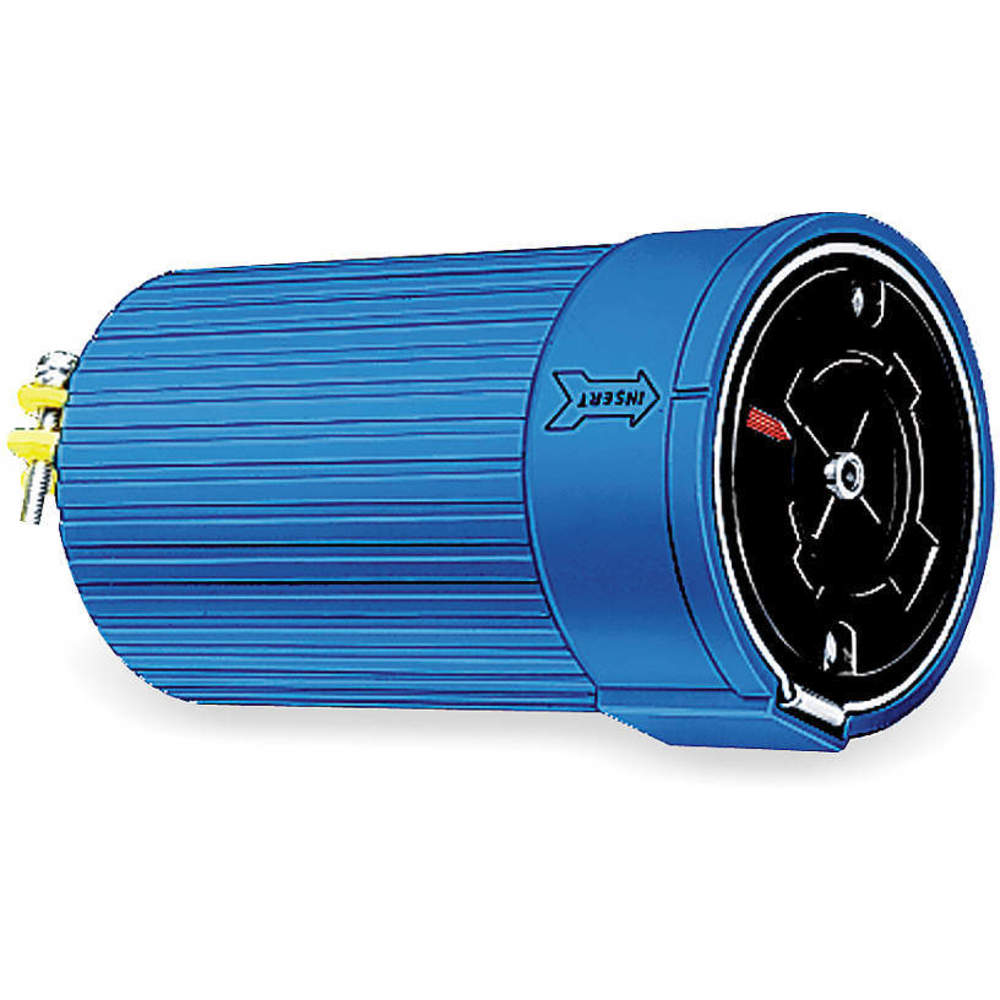

HUBBELLOCK HBL26516 Locking Connector 600vac 60a 4p 5w
Item: AC8PXKModel: HBL26516Cross Ref: 3D083
7 In Stock
Ships within 2 days via
10.00% off
€1,453.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 60A |
| Antimicrobial | No |
| Cap Type | No Cap, Cover |
| Color | Blue |
| Connection Orientation | Straight |
| Contact Material | Copper |
| Cord Size | 0.875" to 1.48" |
| Cover Material | Polycarbonate, Steel |
| Current Rating | 60A |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 1.5" |
| For Minimum Cable Diameter | 1" |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Housing Color | Blue |
| Housing Material | Steel |
| Ip Rating | IP30 |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 4 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 8 AWG |
| Nema Configuration | Non-NEMA |
| Nema Receptacle Configuration | Non-NEMA |
| Number Of Poles | 4 |
| Number Of Wires | 5 |
| Outside Diameter | 3.19" |
| Overall Length | 3.19" |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbellock-hbl26516.pdf |
| Resistance Properties | Shatter And Crack Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 600V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 13.82 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 2.77 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
Hubbellock HBL26516 locking connector prevents accidental electrical disconnection in situations where movement or vibration can cause the loosening of electrical connectors.
Features:
- This locking connector features a spring-loaded safety shutter that automatically ejects the plug to eliminate contact teasing and prevent arcing while mating or unmating devices under loading conditions.
- It is equipped with insulated, colour-coded metallic housing for added safety and abuse resistance.
- This locking connector comes with box terminals and stainless steel screws to providemaximum termination strength.
Compatible Accessories:
- Hubbellock HBL26519 Locking Plugs: These wire grounding plugs have damage-resistant brass contacts and colour-coded nylon housing for heat resistance.
Standards and Approvals:
- UL
- CSA
Frequently Asked Questions:
Q. What is the operating temperature range of Hubbellock HBL26516 locking connector?
A. This locking connector can be operated at temperatures ranging from -40 to 75 degrees C.
Q. What wire sizes can this locking connector accommodate?
A. This locking connector can accommodate 8 AWG to 4 AWG stranded copper wires.
Q. What is the minimum dielectric voltage that Hubbellock HBL26516 locking connector can withstand?
A. This locking connector can withstand a minimum dielectric voltage of 2000V.
Documentation:
Product Variants
| Product | Model | Current Rating | Voltage Rating | Phase | Number Of Poles | Number Of Wires | Housing Color | Resistance Properties | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

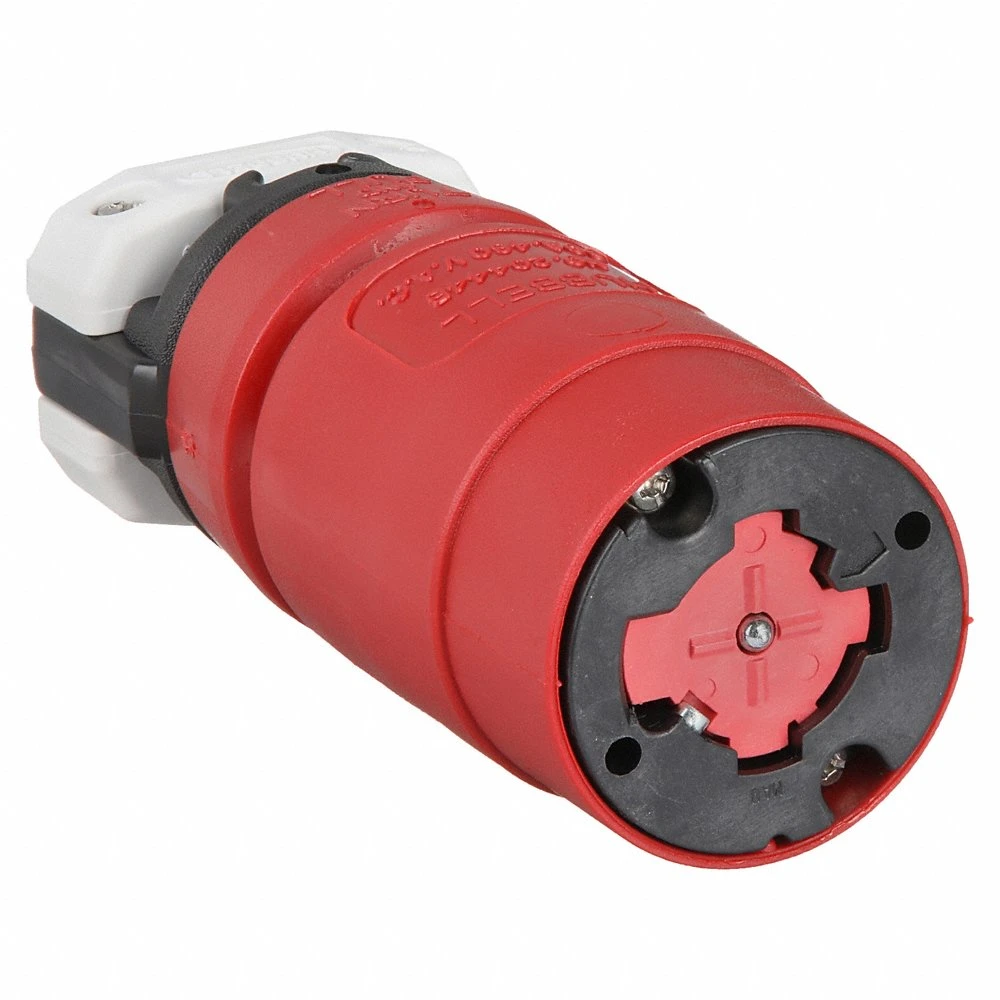

HBL20444B | 30A | 480V AC | 3 | 3 | 4 | Red | Impact Resistant | 30A | €565.82 | |
 |
HBL23002GB | 20A | 125V AC | 1 | 2 | 3 | Black | Impact Resistant | 10A | €410.06 | |
 |

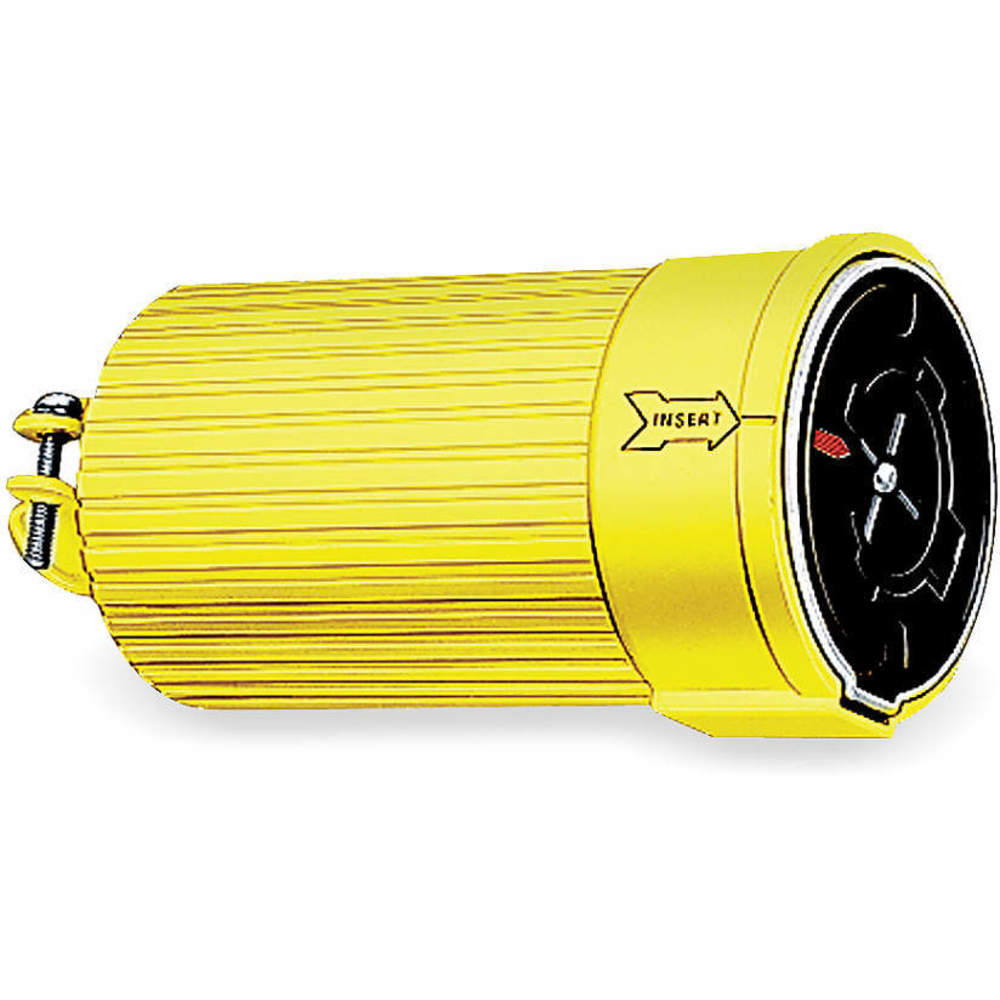

HBL26418 | 60A | 600V AC | 3 | 3 | 4 | Yellow | Shatter And Crack Resistant | 60A | €1,220.36 | |
 |

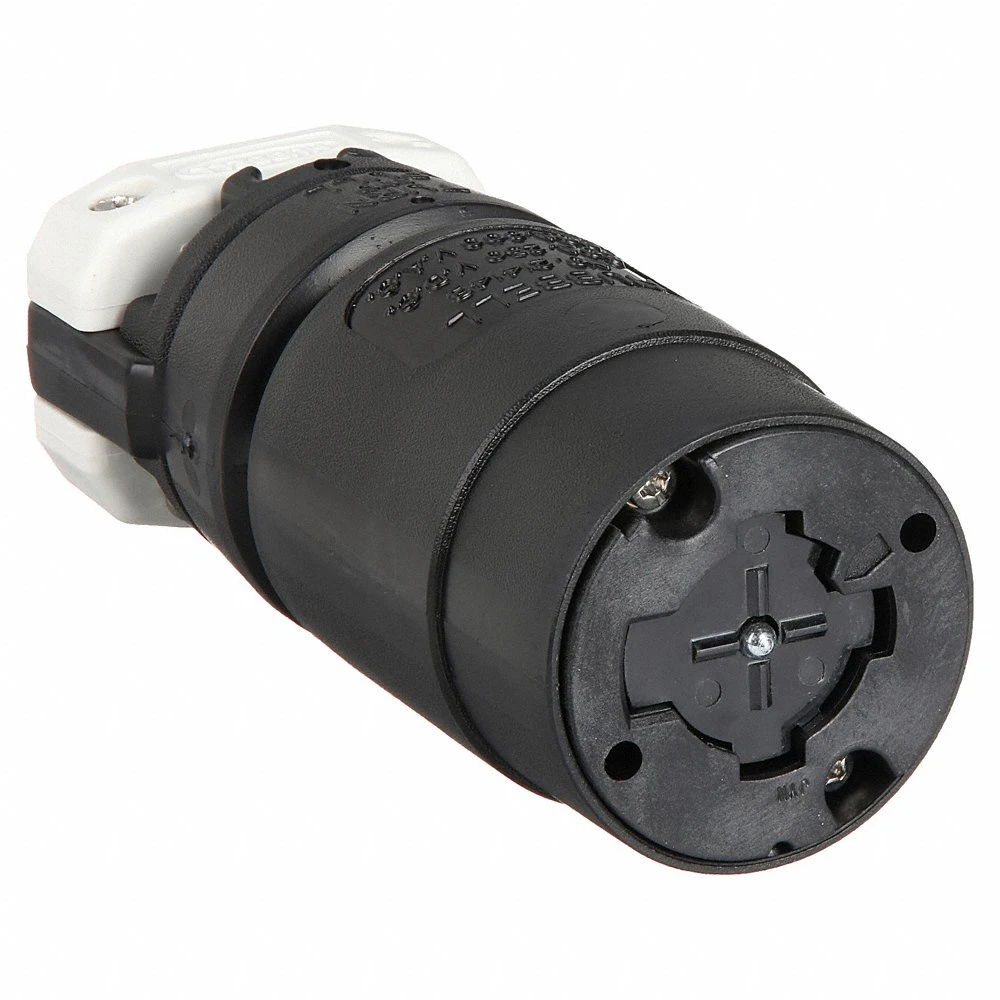

HBL21414B | 20/30A | 250V DC/600V AC | 3 | 3 | 4 | Black, White | Impact Resistant | 20 @ 250V/30 @ 600V | €509.88 |
