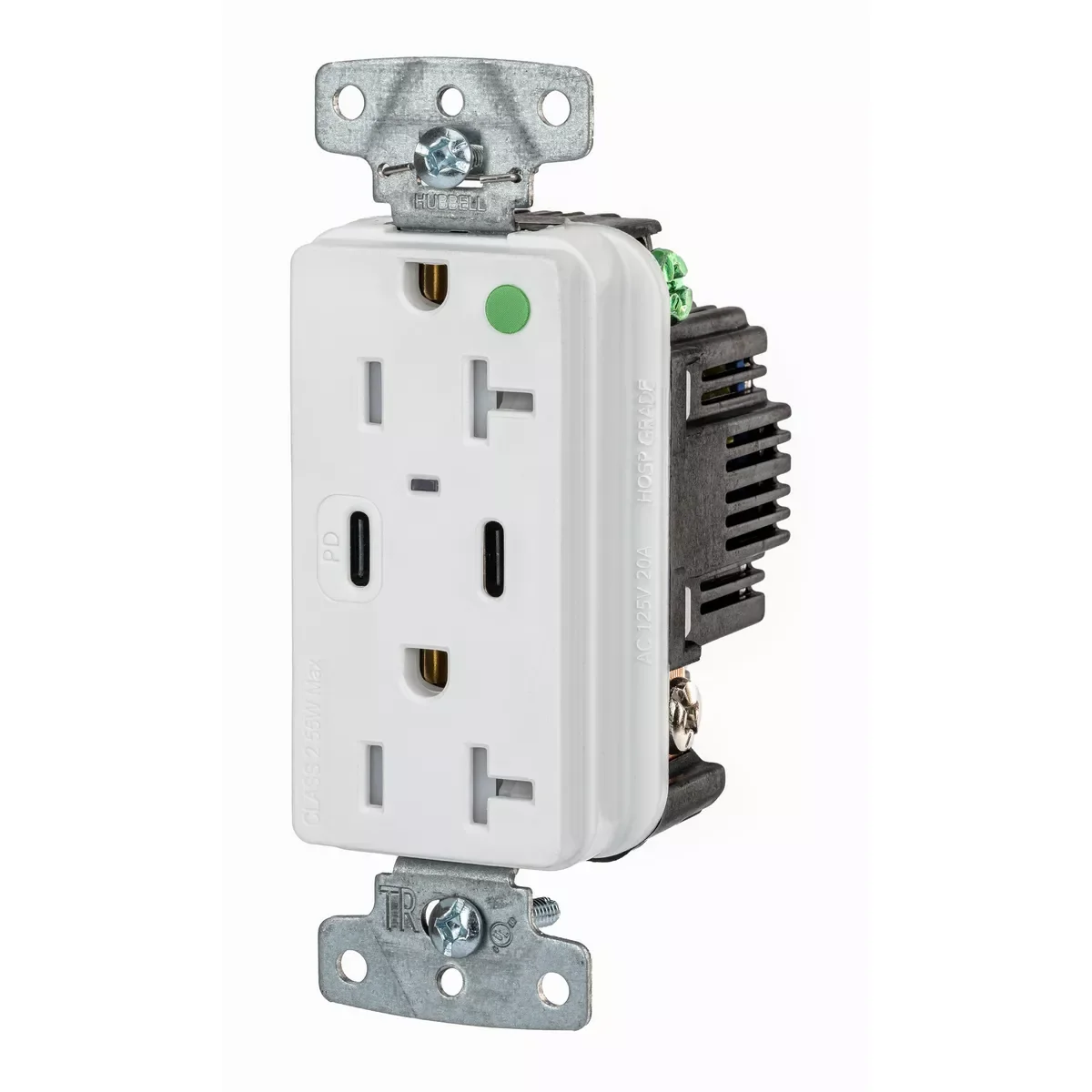

HUBBELL - BRYANT USB8300CPDW USB Charger Hospital Grade Receptacle, 20A 125V Duplex, Power Delivery 55W Type C Ports, NEMA 5-20R, White
Item: DB6ZHQModel: USB8300CPDWCross Ref: 816RX3
7 In Stock
Ships within 2 days via
5.00% off
€108.05 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | USB Charger Receptacle |
| Amps Rating | 20A |
| Contact Material | Brass |
| Face Plate Height | 2 3/5" |
| Face Plate Width | 1.3" |
| Grade | Grade Hospital |
| Grounding | Grounded |
| Housing Color | White |
| Housing Material | Thermoplastic |
| Hp Rating | 1 hp |
| Ip Rating | IP20 |
| Max. Operating Temp. | 167°F |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 3 7/25" |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-20R |
| No. Of Wire | 3 |
| Overall Depth | 2" |
| Phase | 1 |
| Product Datasheet | hubbell-usb8300cpdw.pdf |
| Resistance Properties | Tamper Resistant |
| Ul 94 Flammability Rating | V-2 |
| Usb Charging Capacity | 5A |
| Usb Connection Type | A, C |
| Visual Indicator Lights | Power Connected |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminal |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 11.43 |
| Country of Origin | CN |
