HUBBELL SNAP8300RLTR Snapconnect Receptacle, Duplex, 5-20R, 20 A, 125V AC, Red, 2 Poles, Modular Wiring
Item: CR4GCFModel: SNAP8300RLTRCross Ref: 799ZA8
7 In Stock
Ships within 2 days via
10.00% off
€91.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Application | Hospital Grade |
| Automatic Self-grounding Staple | Stainless Steel |
| Color | Red |
| Connection Orientation | Straight |
| Connectivity | Connectorized |
| Contact Material | Brass |
| Current Interrupting | Receptacle Certified For Current Interrupting At Full Rated Current |
| Current/amperage Rating | 20A |
| Depth | 1" |
| Device Color | Red |
| Display Size | Standard Sized Product |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Eu Rohs Indicator | No |
| Face | Nylon |
| Face Plate Height | 2 3/5" |
| For Location | Indoor |
| Gfci | No |
| Grade | Hospital Grade |
| Ground Contacts | Brass |
| Grounding | Grounded |
| Horsepower - Maximum | 1/2 hp |
| Housing Color | Red |
| Hp | 1/2 hp |
| Includes | Mounting Screw |
| Includes Mounting Hardware | Yes |
| Indicator(s) Type | Green LED |
| Material | Polycarbonate |
| Material - Mounting Hardware | Screw Mounting |
| Max. Wire Size | 12 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Performance | Electrical-Current Interrupting-Receptacle Certified For Current Interrupting At Full Rated Current, Electrical-Dielectric Voltage-Withstands 2, 000V minimum, Environmental-Flammability-Ul 94V-2, Environmental-Operating Temperature-Maximum Continuous 75°C, minimum-40°C (Without Impact), Mechanical-Product Identification-Ratings Are A Permanent Part Of The Device |
| Polarized | Yes |
| Power Contacts | Brass |
| Product Datasheet | hubbell-snap8300rltr.pdf |
| Receptacle Type | Duplex |
| Resistance Properties | Tamper Resistant |
| Resistance Property | General Purpose |
| Special Resistance Properties | Tamper Resistant |
| Standards | Csa, Ul |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Wattage | 2500 W |
| Wire Connection Type | Modular Wiring |
| Wire Connection Types | Snap In Module |
| Wire Size | #12 AWG |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 4.22 |
| Ship length (cm) | 10.57 |
| Ship width (cm) | 4.85 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Housing Color | Grade | Color | Nema Receptacle Configuration | Face Plate Height | Amps | Depth | Receptacle Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

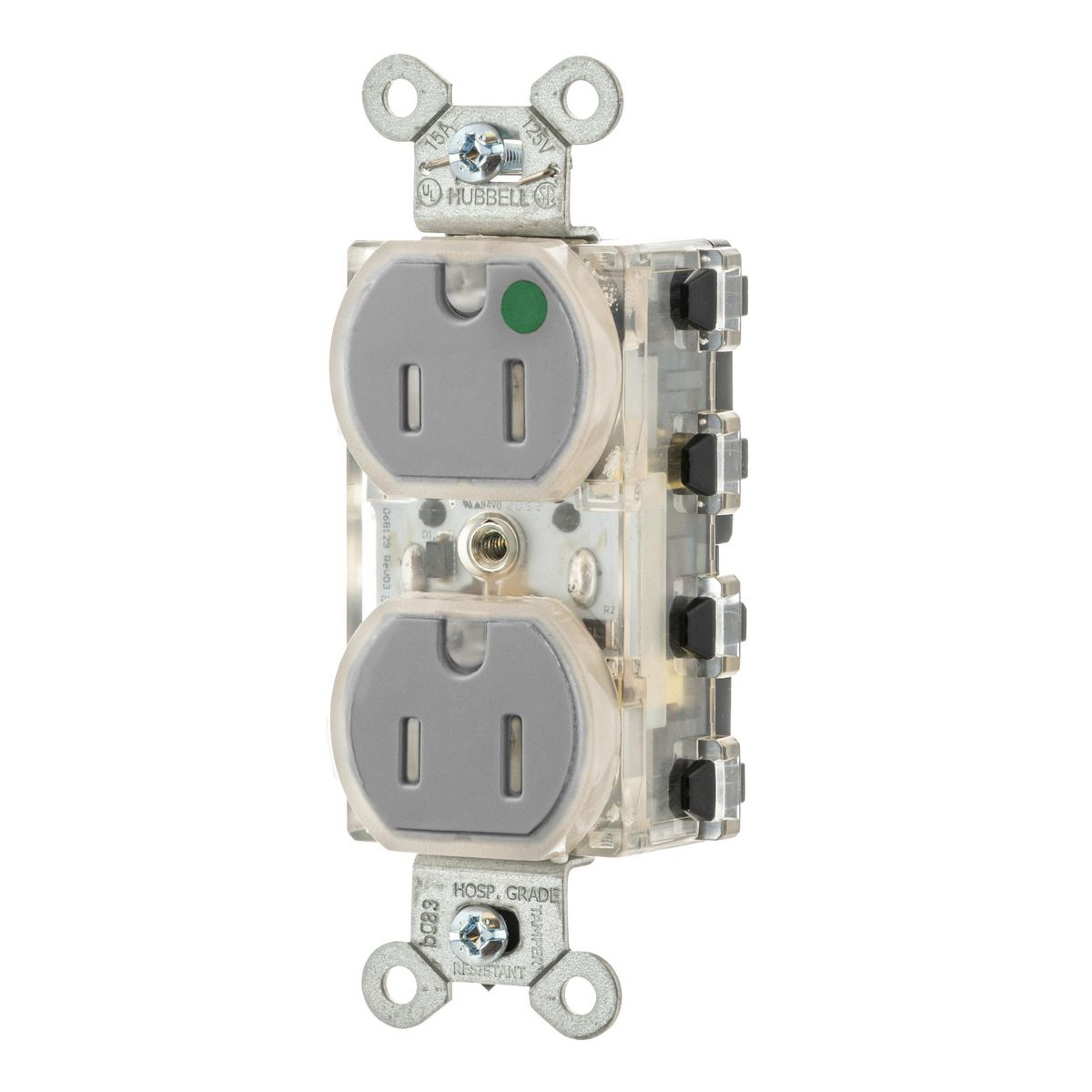

SNAP8200GYLTR | Gray | Hospital Grade | Gray | NEMA 5-15R | 2 3/5" | 15A | 1" | Duplex | €76.50 | |
 |

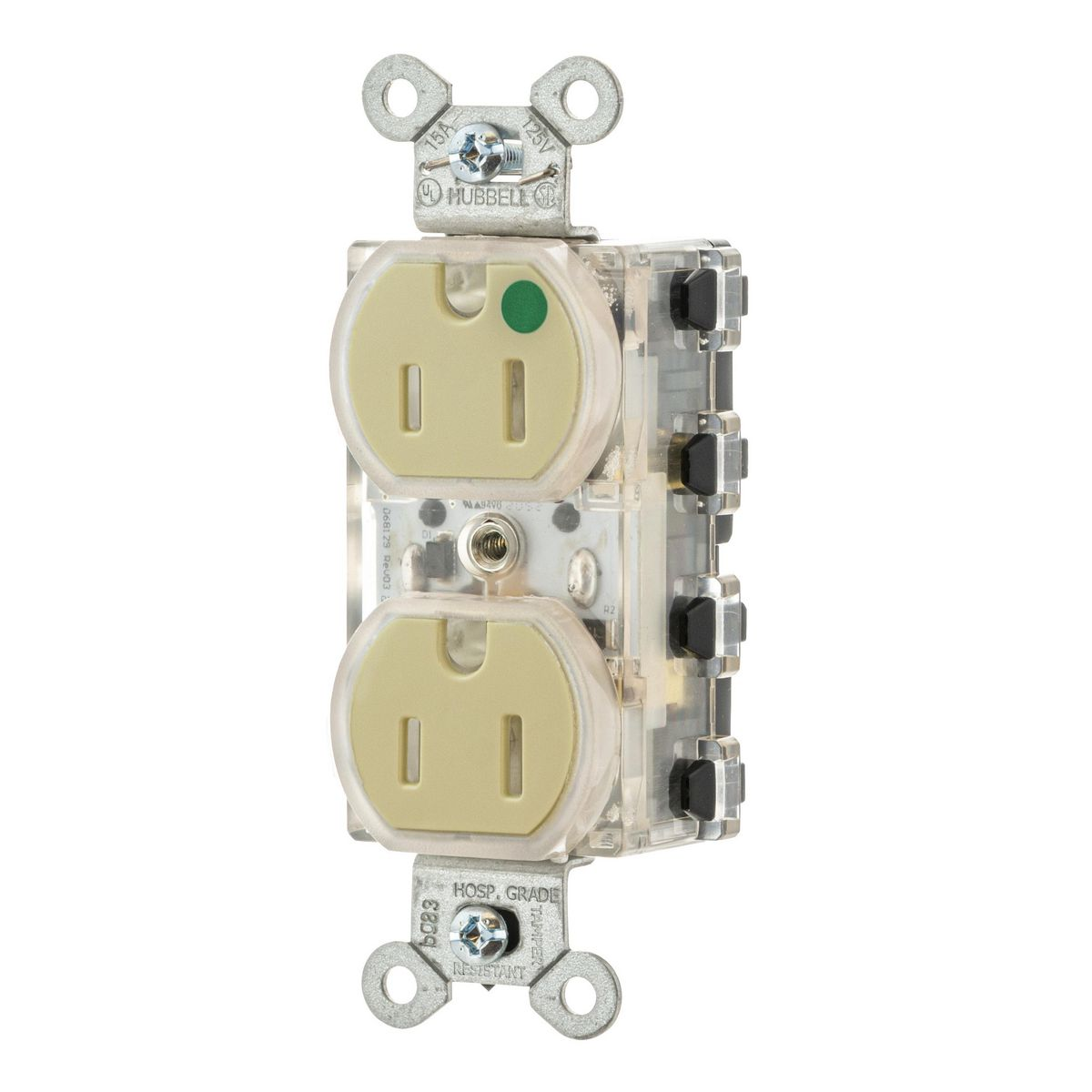

SNAP8200ILTR | Ivory | Hospital Grade | Ivory | NEMA 5-15R | 2 3/5" | 15A | 1" | Duplex | €93.33 | |
 |
SNAP8200RLTR | Red | Hospital Grade | Red | NEMA 5-15R | 2 3/5" | 15A | 1" | Duplex | €93.33 | |
 |

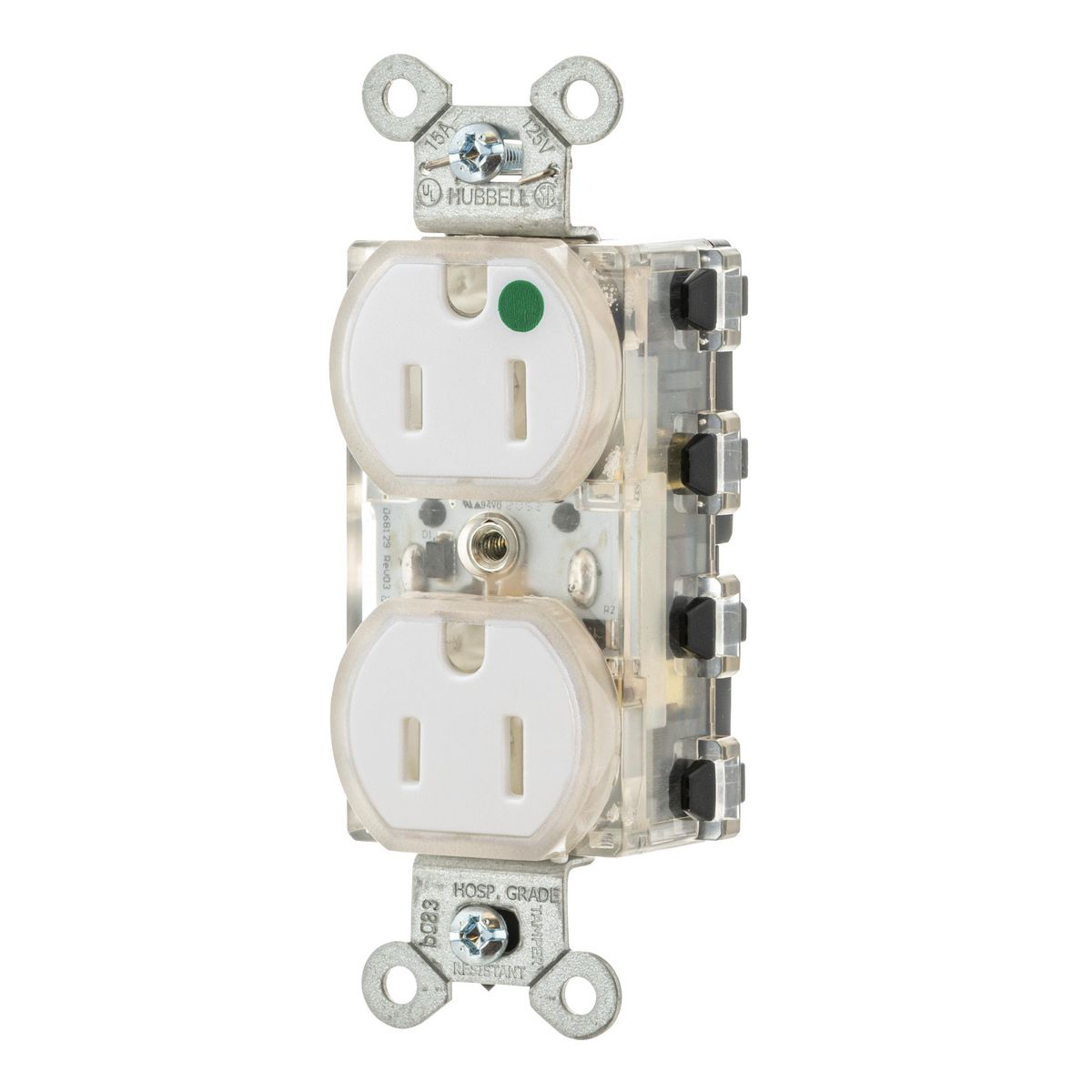

SNAP8200WLTR | White | Hospital Grade | White | NEMA 5-15R | 2 3/5" | 15A | 1" | Duplex | €83.76 | |
 |

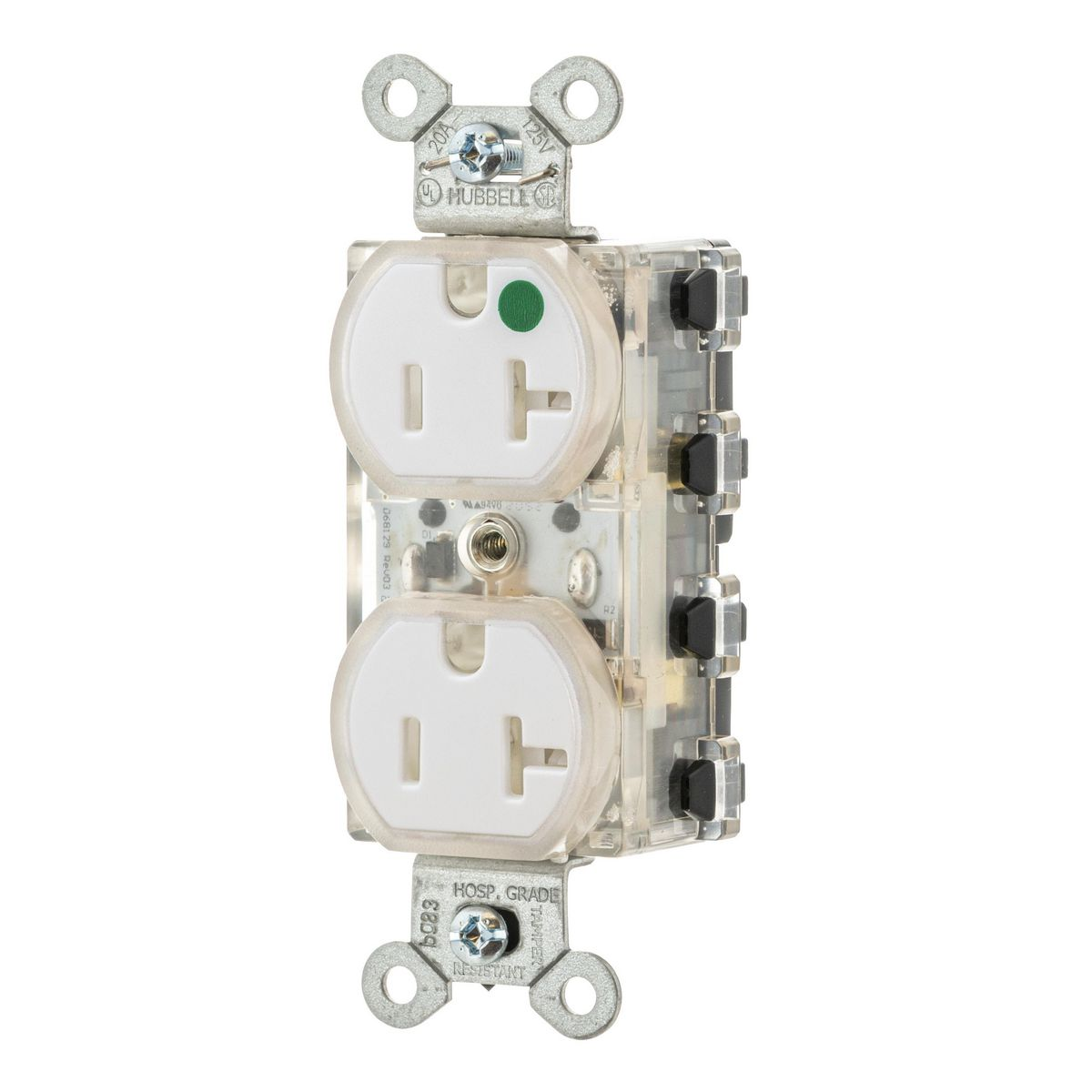

SNAP8300WLTR | White | Hospital Grade | White | NEMA 5-15R | 2 3/5" | 20A | 1" | Duplex | €84.38 | |
 |
SNAP8300GYLTR | Gray | Hospital | Gray | NEMA 5-20R | 2.6" | 20A | 24/25" | Duplex | €87.48 | |
 |
SNAP8300ILTR | Ivory | Hospital | Ivory | NEMA 5-20R | 2.6" | 20A | 24/25" | Duplex | €91.78 |
