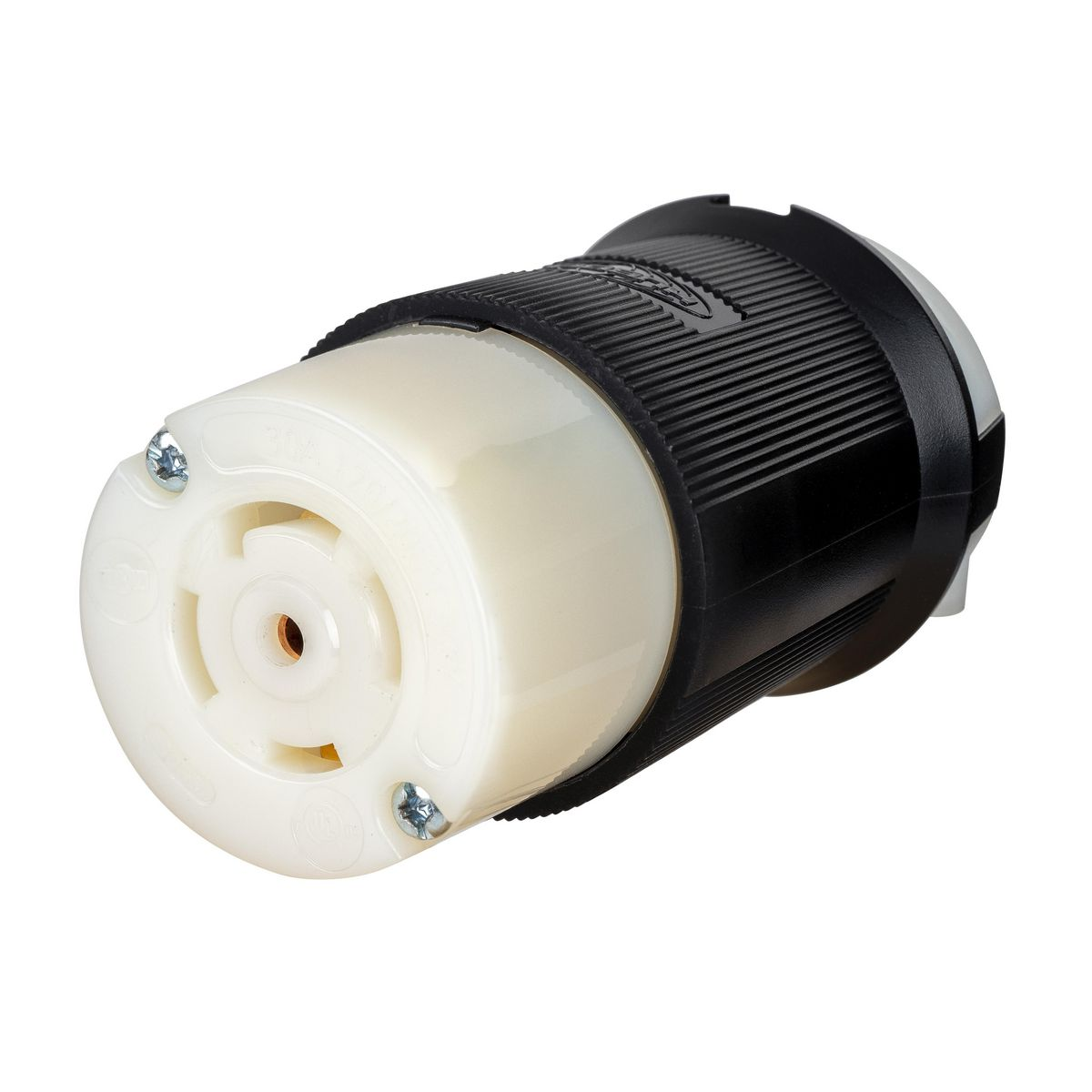

HUBBELL HBL2813ST Locking Connector, L21-30R, 30 A, 120/208V AC, 4 Poles, Black/White
Item: CR4FWMModel: HBL2813STCross Ref: 797V98
7 In Stock
Ships within 2 days via
10.00% off
€199.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 30A |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Connection Orientation | Straight |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Black, White |
| Ip Rating | IP20 |
| Length | 2.33" |
| Market | Industrial |
| Max. Operating Temp. | 75°C |
| Maximum Wire Size | 8 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Nema Receptacle Configuration | NEMA L21-30R |
| Number Of Poles | 4 |
| Number Of Wires | 5 |
| Phase | Three |
| Product Datasheet | hubbell-hbl2813st.pdf |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Ul 94 Flammability Rating | HB |
| Voltage | 120/208V AC |
| Voltage Rating | 120/208V AC |
| Wire Connection Type | Spring Clamp Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.92 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Number Of Wires | Voltage Rating | Phase | Nema Configuration | Amps | Grounding | Nema Receptacle Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24CM23 | 3 | 4 | - | - | - | - | - | - | €160.24 | |
 |
HBL2413ST | 3 | 4 | 125/250V AC | Three | - | 20A | Grounded | NEMA L14-20R | €116.75 | |
 |
HBL2713ST | 3 | 4 | 125/250V AC | Single | - | 30A | Grounded | NEMA L14-30R | €223.28 | |
 |
HBL2423ST | 3 | 4 | 250V AC | Three | L15-20 | 20A | Grounded | NEMA L15-20R | €116.36 | |
 |
HBL2723ST | 3 | 4 | 250V AC | Three | L15-30 | 30A | Grounded | NEMA L15-30R | €226.31 | |
 |
HBL2433ST | 3 | 4 | 480V AC | Three | L16-20 | 20A | Grounded | NEMA L16-20R | €124.61 | |
 |
HBL2733ST | 3 | 4 | 480V AC | Three | - | 30A | Grounded | NEMA L16-30R | €231.35 |
