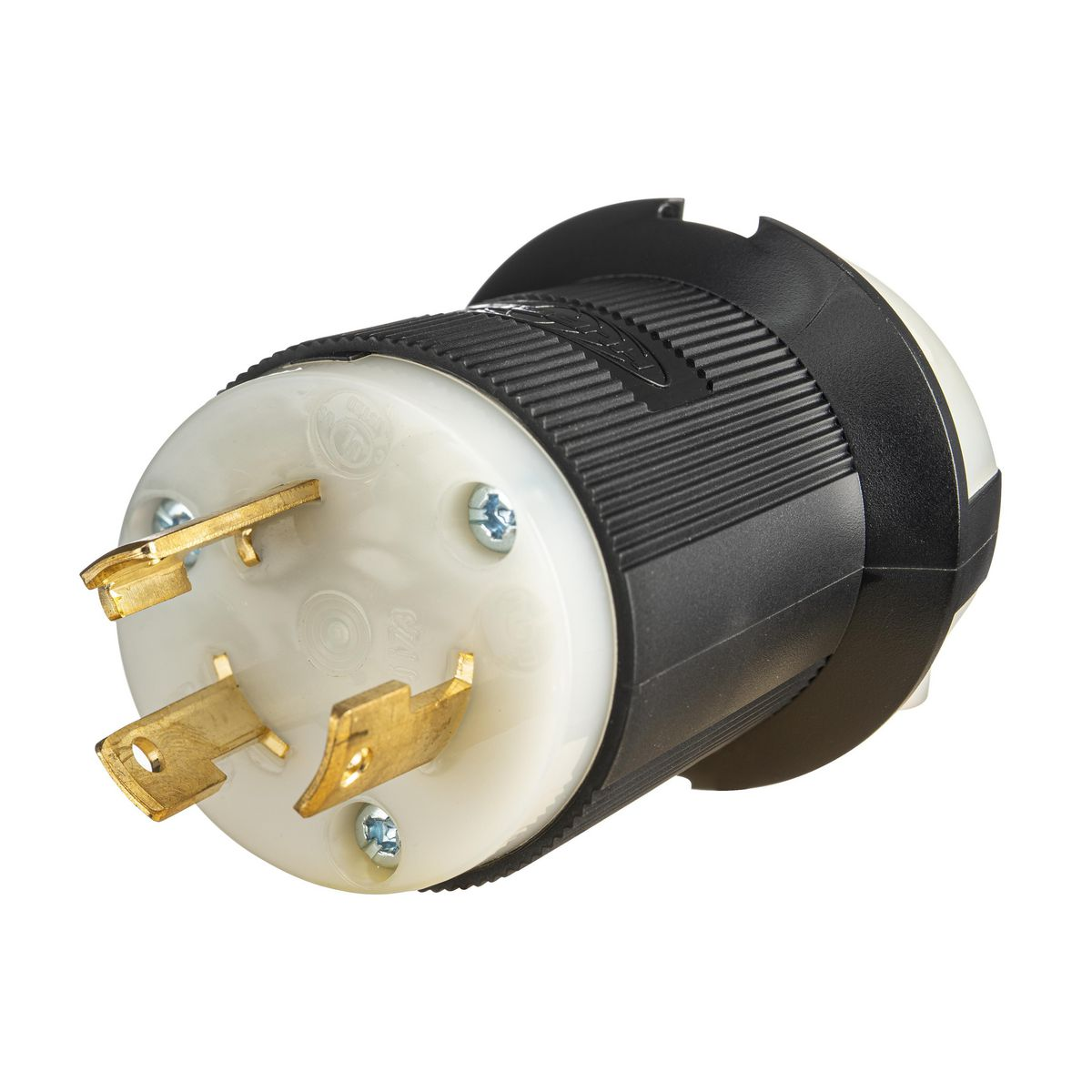

HUBBELL HBL2611ST Locking Plug, L5-30P, 125V AC, 30 A, 2 Poles, Black/White, Spring Clamp Terminals
Item: CR4FXFModel: HBL2611STCross Ref: 797V92
7 In Stock
Ships within 2 days via
10.00% off
€71.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 30A |
| Blade Material | Copper Alloy |
| Body Material | Nylon |
| Carton Quantity | Carton Quantity |
| Connection Orientation | Straight |
| Current / Amperage Rating | Current/Amperage Rating |
| For Maximum Cable Diameter | 0.93" |
| For Minimum Cable Diameter | 9/25" |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Black, White |
| Ip Rating | IP20 |
| Market | Industrial |
| Max. Operating Temp. | 75°C |
| Maximum Wire Size | 8 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Nema Configuration | L5-30 |
| Nema Plug Configuration | L5-30P |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Number Of Wires | Number Of Wires |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | hubbell-hbl2611st.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Shrouded | No |
| Ul 94 Flammability Rating | HB |
| Voltage | 125V AC |
| Wire Connection Type | Spring Clamp Terminals |
| Wiring Style | Nylon |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Phase | Wire Connection Type | Wiring Style | Number Of Poles | Number Of Blades | Housing Color | Ip Rating | Nema Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2411ST | Single | Spring Clamp Terminals | Standard | 3 | 4 | Black, White | IP20 | L14-20 | €73.53 | |
 |
HBL2711ST | 3.0 | Spring Clamp Terminals | Standard | 3 | 4 | Black, White | IP20 | L14-30 | €110.12 | |
 |
HBL2421ST | 3.0 | Spring Clamp Terminals | Edgeconnect | 3 | 4 | Black, White | IP20 | L15-20 | €78.60 | |
 |
HBL2721ST | 3.0 | Spring Clamp Terminals | Standard | 3 | 4 | Black, White | IP20 | L15-30 | €100.92 | |
 |
HBL2731ST | 3.0 | Spring Clamp Terminals | Standard | 3 | 4 | Black, White | IP20 | L16-30 | €113.75 | |
 |
HBL2521ST | 3.0 | Spring Clamp Terminals | Standard | 4 | 5 | Black, White | IP20 | L22-20 | €80.59 | |
 |
HBL2821ST | 3.0 | Spring Clamp Terminals | Edgeconnect | 4 | 5 | Black, White | IP20 | L22-30 | €138.41 |
