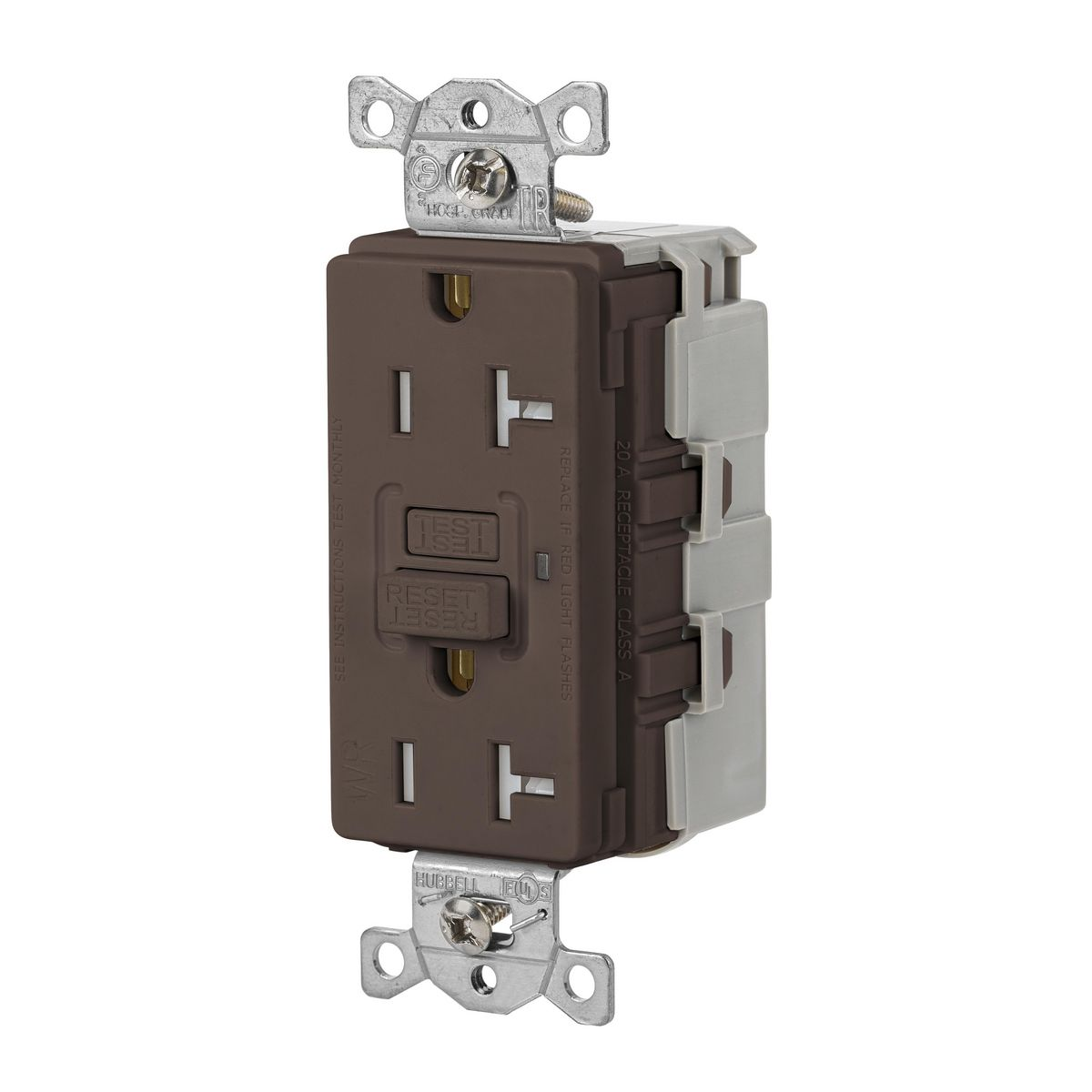

HUBBELL WIRING DEVICE-KELLEMS SNAPGFTW20 GFCI Receptacle, Commercial, Decorator Duplex, Flush Mount, 20A
Item: BD3WTWModel: SNAPGFTW20Cross Ref: 45UE36
7 In Stock
Ships within 2 days via
5.00% off
€123.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | GFCI Receptacle |
| Afci | No |
| Amps | 20A |
| Color | Brown |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Face Plate Height | 2.8" |
| Face Plate Width | 1 4/5" |
| Gfci | Yes |
| Grade | General Use |
| Grounding | Grounded |
| Height | 1.47" |
| Housing Color | Brown |
| Housing Material | Nylon |
| Hp | 1 hp |
| Included | Mounting Hardware, Wall Plate |
| Included Mounting Hardware | Yes |
| Length | 3 7/25" |
| Material | Nylon |
| Max. Wire Size | 12 AWG |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Overall Depth | 1.5" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-snapgftw20.pdf |
| Receptacle Type | Decorator Duplex |
| Reset Type | Automatic |
| Self Testing | Yes |
| Special Resistance | Tamper Resistant, Weather Resistant |
| Surge Protection | No |
| Voltage | 125V , 125V AC |
| Wattage | 1875 W |
| Watts | 1875 W |
| Width | 1.77" |
| Wire Connection Location | Back, Side |
| Wire Size | 12 AWG |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 10.46 |
| Ship length (cm) | 3.76 |
| Ship width (cm) | 4.45 |
| Country of Origin | CN |
Product Details:
- Straght Blade Device, Snap-Connect, Weather And Tamper-Resistant, Autoguard, Self Test
Documentation:
Product Variants
| Product | Model | Color | Amps | Voltage | Nema Rating | Mounting Type | Hp | Housing Color | Wire Connection Location | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GFSG5262BLK | Black | 15A | 125V AC | - | Flush | 1/2 hp | Black | Back, Side | 1 | €330.85 | |
 |
GFSG5262I | Ivory | 15A | 125V AC | - | Flush | 1/2 hp | Ivory | Back, Side | 1 | €355.81 | |
 |
GFSG5262W | White | 15A | 125V AC | - | Flush | 1/2 hp | White | Back, Side | 1 | €342.31 | |
 |
GFSG5362 | Brown | 20A | 125V AC | - | Flush | 1 hp | Brown | Back, Side | 1 | €380.09 | |
 |
GFSG5362GRY | Gray | 20A | 125V AC | - | Flush | 1 hp | Gray | Back, Side | 1 | €359.97 | |
 |
GFSG5362I | Ivory | 20A | 125V AC | - | Flush | 1 hp | Ivory | Back, Side | 1 | €372.54 | |
 |
GFSG5362W | White | 20A | 125V AC | - | Flush | 1 hp | White | Back, Side | 1 | €379.61 |
