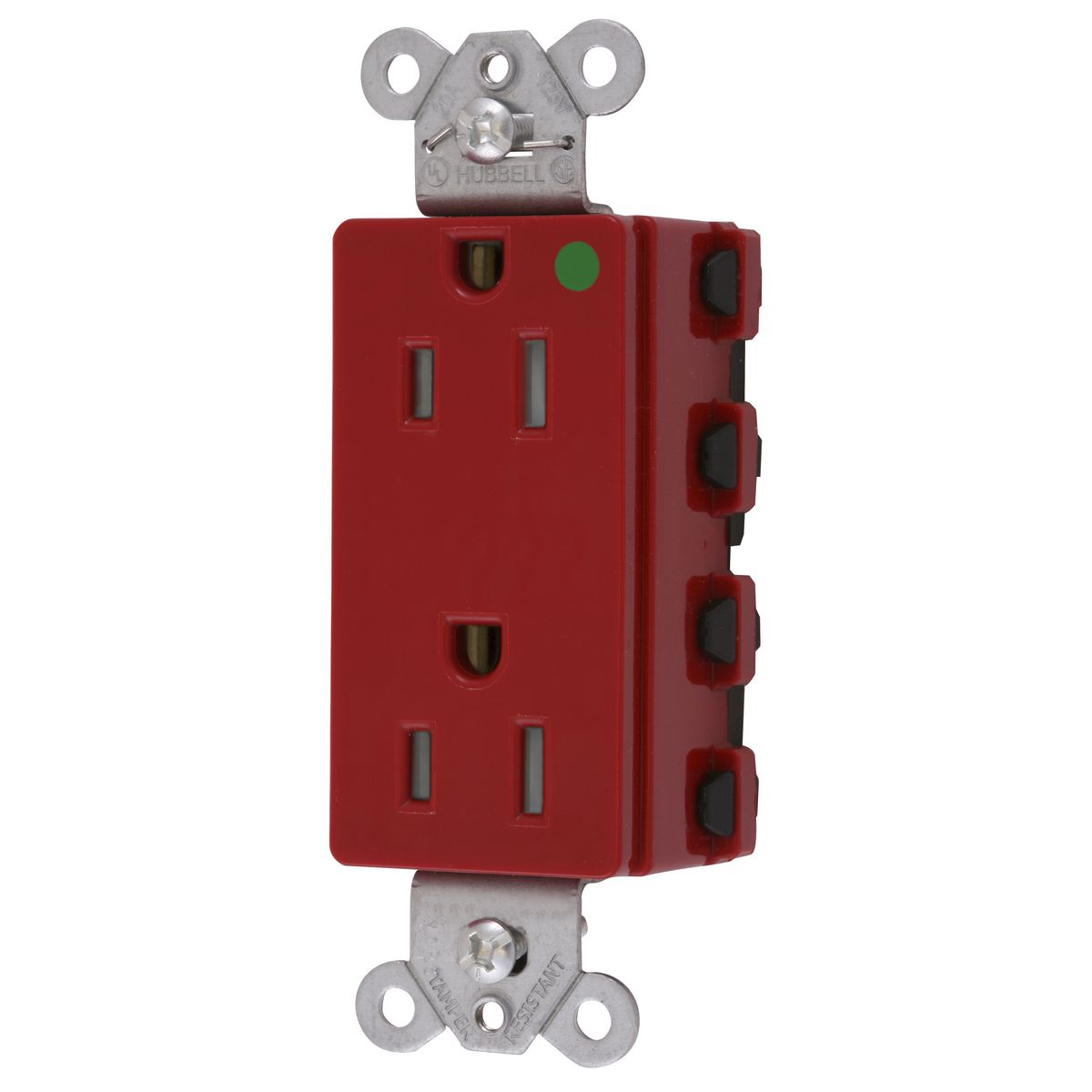

HUBBELL WIRING DEVICE-KELLEMS SNAP2172RTRA Receptacle, Commercial, Standard Duplex, Flush Mount, 15A, 125V AC, Red
Item: BD4PKFModel: SNAP2172RTRACross Ref: 49YL34
7 In Stock
Ships within 2 days via
5.00% off
€49.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Color | Red |
| Connection Orientation | Straight |
| Connectivity | Connectorized |
| Cover Type | No Cover |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Plate Height | 2.6" |
| Gfci | No |
| Grade | Hospital Grade Fed. Spec |
| Grounding | Grounded |
| Height | 1.1" |
| Housing Color | Red |
| Included | Wall Plate Or Weatherproof Cover |
| Ip Rating | IP20 |
| Material | Nylon |
| Max. Hp | 1/2 hp |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-snap2172rtra.pdf |
| Receptacle Type | Decorator Duplex |
| Resistance Property | General Purpose |
| Special Resistance Properties | Tamper Resistant |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V , 125V AC |
| Wattage | 1875 W |
| Watts | 1875 W |
| Width | 1 16/25" |
| Wire Connection Location | Back |
| Wire Connection Type | Modular Wiring , Snap In Module |
| Wire Size | 12 AWG |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 2.79 |
| Ship width (cm) | 4.17 |
| Country of Origin | MX |
Product Details:
- Straight Blade Devices, Receptacles, Style Line Decorator Duplex, Snapconnect
Documentation:
Product Variants
| Product | Model | Voltage | Amps | Watts | Color | Max. Hp | Housing Color | Wire Connection Type | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SNAP2182IA | 125V AC | 20A | 2500 W | Ivory | 1 hp | Ivory | Modular Wiring | NEMA 5-20R | €51.62 | |
 |
SNAP2182RA | 125V AC | 20A | 2500 W | Red | 1 hp | Red | Modular Wiring | NEMA 5-20R | €65.03 | |
 |
SNAP2182WA | 125V AC | 20A | 2500 W | White | 1 hp | White | Modular Wiring | NEMA 5-20R | €62.43 | |
 |
SNAP2172BKLTRA | 125V | 15A | 1875 W | Black | 1/2 hp | - | - | NEMA 5-15R | €60.45 | |
 |
SNAP2182RSCTRA | 125V | 20A | 2500 W | Red | - | - | - | NEMA 5-20R | €62.84 | |
 |
SNAP2182LATRA | 125V | 20A | 2500 W | Almond | 1 hp | - | - | NEMA 5-20R | €57.65 | |
 |
SNAP2172RLTRA | 125V | 15A | 1875 W | Red | 1/2 hp | - | - | NEMA 5-15R | €60.45 |
