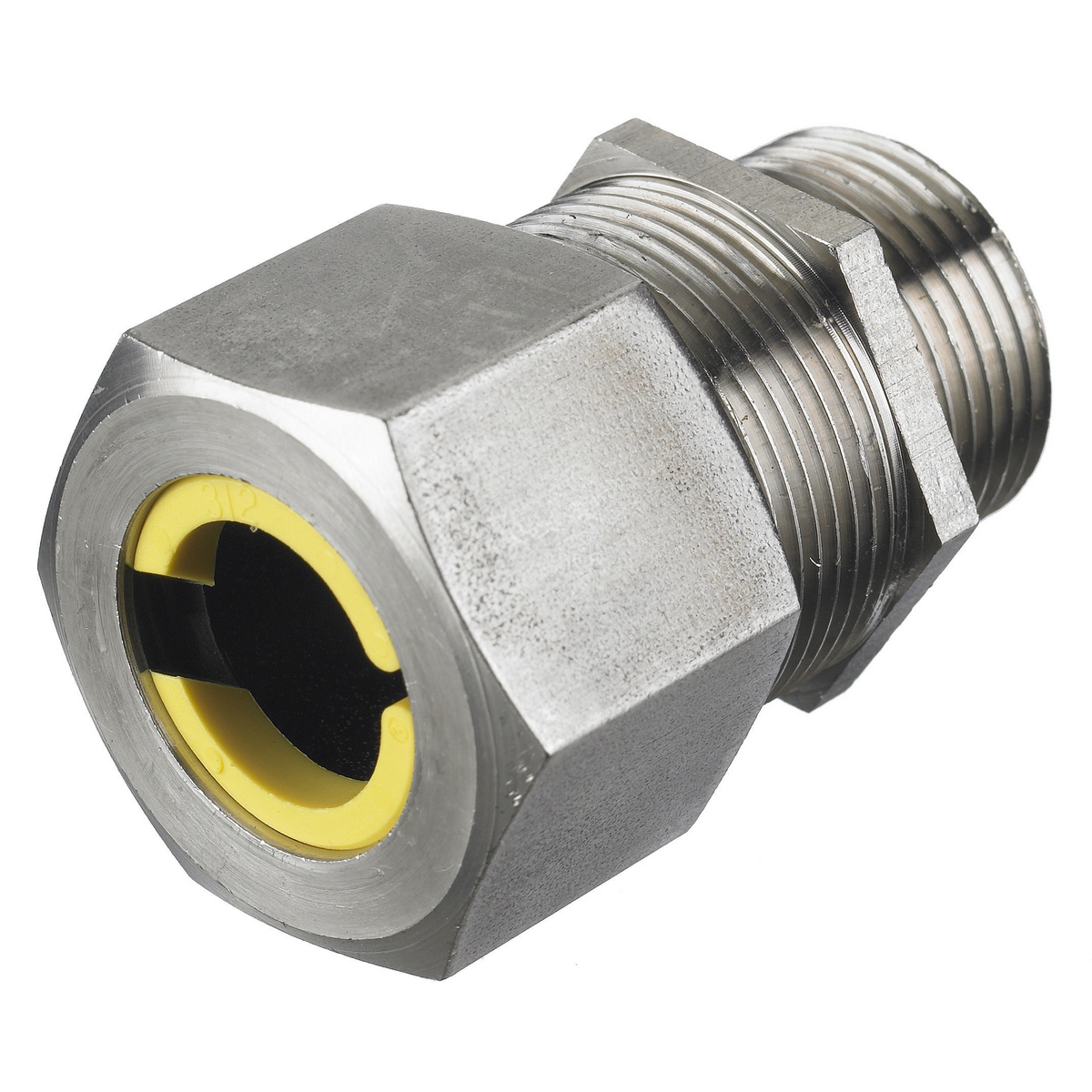

HUBBELL WIRING DEVICE-KELLEMS SHC1037SS Liquid Tight Connector 3/4in. Yellow
Item: AE3FPBModel: SHC1037SSCross Ref: 5D907
7 In Stock
Ships within 2 days via
5.00% off
€280.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Liquid Tight Connector |
| Body Color | Silver |
| Body Material | Stainless Steel |
| Box Connection | 3/4" MNPT |
| Bushing Material | Neoprene |
| Collar Material | Stainless Steel |
| Color | Yellow |
| Compatible Conduit Trade Size | 3/4" |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Connection Orientation | Straight |
| Connector Type | Straight |
| Cord Dia. | 0.63" to 0.75" |
| Cord Dia. Range | 5/8" to 3/4" |
| Environmental Rating | Hazardous Locations |
| For Max. Cable Outside Dia. | 3/4" |
| For Min. Cable Outside Dia. | 0.63" |
| For Use With | Kellems Wire Management |
| Form Size | F3 |
| Grommet Color Code | Yellow |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 And 2, Class III, Division 1 And 2 |
| Hub Size | 3/4" |
| Insulated | No |
| Ip Rating | IP66 |
| Length | 1 55/64" |
| Length-box To End Of Connector | 1 5/16" |
| Liquid Tight | Yes |
| Material | Stainless Steel |
| Material-external Strain Relief | No External Strain Relief |
| Max. Operating Temp. | 225°F |
| Min. Operating Temp. | -30°F |
| Nema Rating | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Cords | 1 |
| Overall Length | 1 7/8" |
| Product Datasheet | hubbell-wiring-device-kellems-shc1037ss.pdf |
| Resistance Properties | Corrosion Resistant |
| Strain Relief Type | No External Strain Relief |
| Thread Gender | Male |
| Thread Type | NPT |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 0.32 |
| Ship width (cm) | 3.81 |
| HS code | 7307225000 |
| Country of Origin | US |
Product Details:
- Number of Cords (1)
Documentation:
Product Variants
| Product | Model | Material | Color | Cord Dia. | Hazardous Location Rating | Hub Size | Box Connection | Body Color | Compatible Conduit Trade Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SHC1010ZP | Zinc Plated Steel | Black | 0.25" to 0.31" | Class I, Division 2, Class II, Division 1 And 2, Class III, Division 1 And 2 | 3/8" | 3/8" MNPT | Silver | 3/8" | €24.28 | |
 |
SHC1011CR | Nylon | White | 0.25" to 0.38" | Class I, Division 2, Class II, Division 1 And 2, Class III, Division 1 And 2 | 3/8" | 3/8" MNPT | Gray | 3/8" | €20.99 | |
 |
SHC1012CR | Nylon | Blue | 0.38" to 0.44" | Class I, Division 2, Class II, Division 1 And 2, Class III, Division 1 And 2 | 3/8" | 3/8" MNPT | Gray | 3/8" | €18.50 | |
 |
SHC1019CR | Nylon | Green | 0.06" to 0.13" | Class I, Division 2, Class II, Division 1 And 2, Class III, Division 1 And 2 | 1/2" | 1/2" MNPT | Gray | 1/2" | €19.14 | |
 |
SHC1020ZP | Zinc Plated Steel | Orange | 0.13" to 0.19" | Class I, Division 2, Class II, Division 1 And 2, Class III, Division 1 And 2 | 1/2" | 1/2" MNPT | Silver | 1/2" | €32.50 | |
 |
SHC1027ZP | Zinc Plated Steel | Yellow | 0.63" to 0.75" | Class I, Division 2, Class II, Division 1 And 2, Class III, Division 1 And 2 | 1/2" | 1/2" MNPT | Silver | 1/2" | €39.29 | |
 |
SHC1028ZP | Zinc Plated Steel | Orchid | 0.75" to 0.88" | Class I, Division 2, Class II, Division 1 And 2, Class III, Division 1 And 2 | 1/2" | 1/2" MNPT | Silver | 1/2" | €37.58 |
