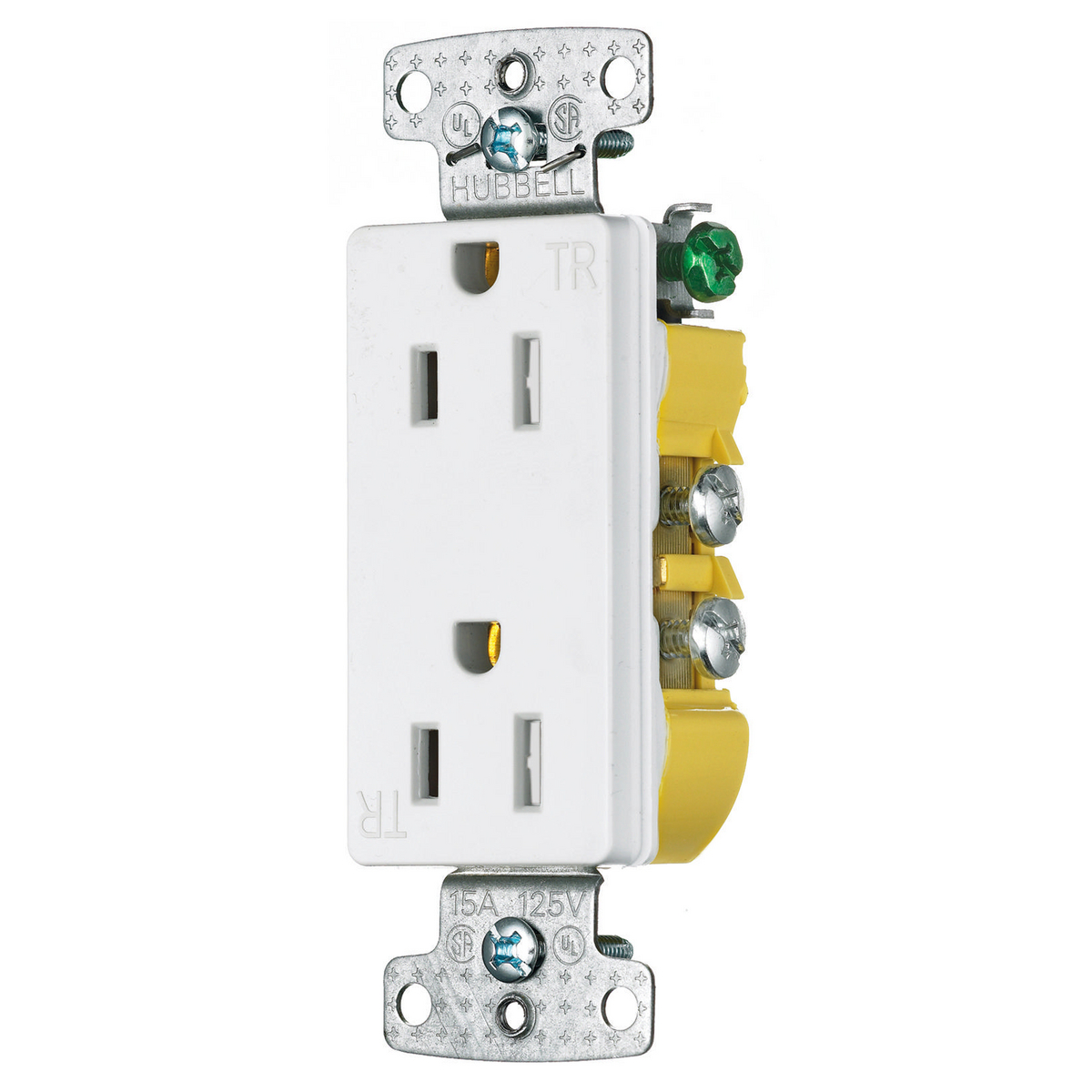

HUBBELL WIRING DEVICE-KELLEMS RRD15SWTR Receptacle, Decorator Duplex, Flush Mount, 15A, 125V AC
Item: BD4NTGModel: RRD15SWTRCross Ref: 55MU61
7 In Stock
Ships within 2 days via
10.00% off
€10.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps Rating | 15A |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 15A |
| Face Plate Height | 2 3/5" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grade | General Use |
| Grounding | Grounded |
| Housing Color | White |
| Housing Material | Thermoplastic |
| Max. Operating Temp. | 167°F |
| Maximum Wire Size | 12 AWG |
| Min. Operating Temp. | -40°F |
| Minimum Wire Size | 14 AWG |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-rrd15swtr.pdf |
| Receptacle Type | Decorator Duplex |
| Special Resistance | Tamper Resistant |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Push In |
| Wire Size | 14 AWG to 12 AWG |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 4.06 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Voltage Rating | Color | Nema Rating | Phase | Amps Rating | Housing Material | Wire Size | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SNAP5362LAA | 125V AC | Almond | 5-20R | 1 | 20A | Nylon | 12 AWG | 125V AC | €33.86 | |
 |
SNAP8200RA | - | Red | 5-15R | 1 | 15A | - | 12 AWG | 125V AC | €41.22 | |
 |
SNAP8200WA | 125V AC | White | 5-15R | 1 | 15A | - | 12 AWG | 125V AC | €44.25 | |
 |
HBL53CM62 | 125V AC | Yellow | - | 1 | - | Nylon (Face) | - | - | €112.28 | |
 |
IG5262I | 125V AC | Ivory | 5-15R | 1 | 15A | Nylon | 14 AWG to 10 AWG | 125V AC | €72.90 | |
 |
SR50 | 125/250V AC | Yellow | - | 1 | - | - | 6 AWG | - | €609.19 | |
 |
IG15DR | 125V AC | Orange | 5-15R | 1 | 15A | Nylon | 14 AWG to 10 AWG | 125V AC | €26.52 |
