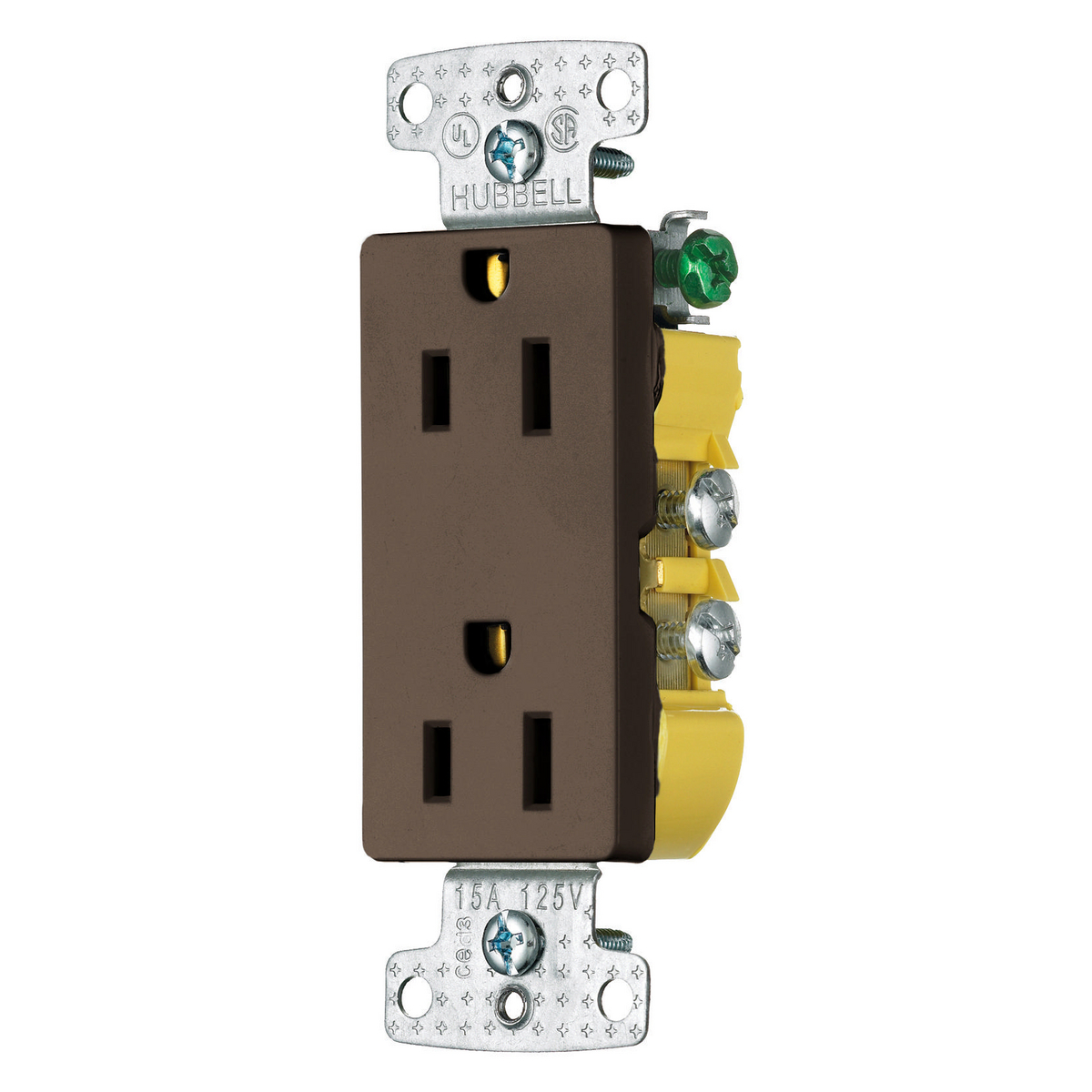

HUBBELL - BRYANT RRD15 Receptacle, Decorator Duplex, Flush Mount, 15A, 125V AC
Item: BC9NVVModel: RRD15Cross Ref: 2JFR2
7 In Stock
Ships within 2 days via
5.00% off
€4.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Color | Brown |
| Connection Orientation | Straight |
| Connectivity | Push And Side Wire |
| Contact Material | Brass |
| Cover Type | No Cover |
| Face Plate Height | 2.6" |
| Face Plate Width | 1 1/2" |
| Gfci | No |
| Grade | General Use |
| Grounding | Grounded |
| Housing Color | Brown |
| Housing Material | Thermoplastic |
| Hp | 1/2 hp |
| Included | Mounting Hardware |
| Included Mounting Hardware | Yes |
| Material | Thermoplastic |
| Max. Wire Size | 12 AWG |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Type | Flush , Screw |
| Nema Enclosure Rating | 1 |
| Nema Rating | 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Overall Depth | 4.2" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-rrd15.pdf |
| Receptacle Type | Decorator Duplex |
| Surge Protection | No |
| Voltage | 125V AC |
| Wattage | 1875 W |
| Watts | 1875 W |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Push In |
| Wire Size | 14 AWG to 12 AWG |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 3.3 |
| Country of Origin | CN |
