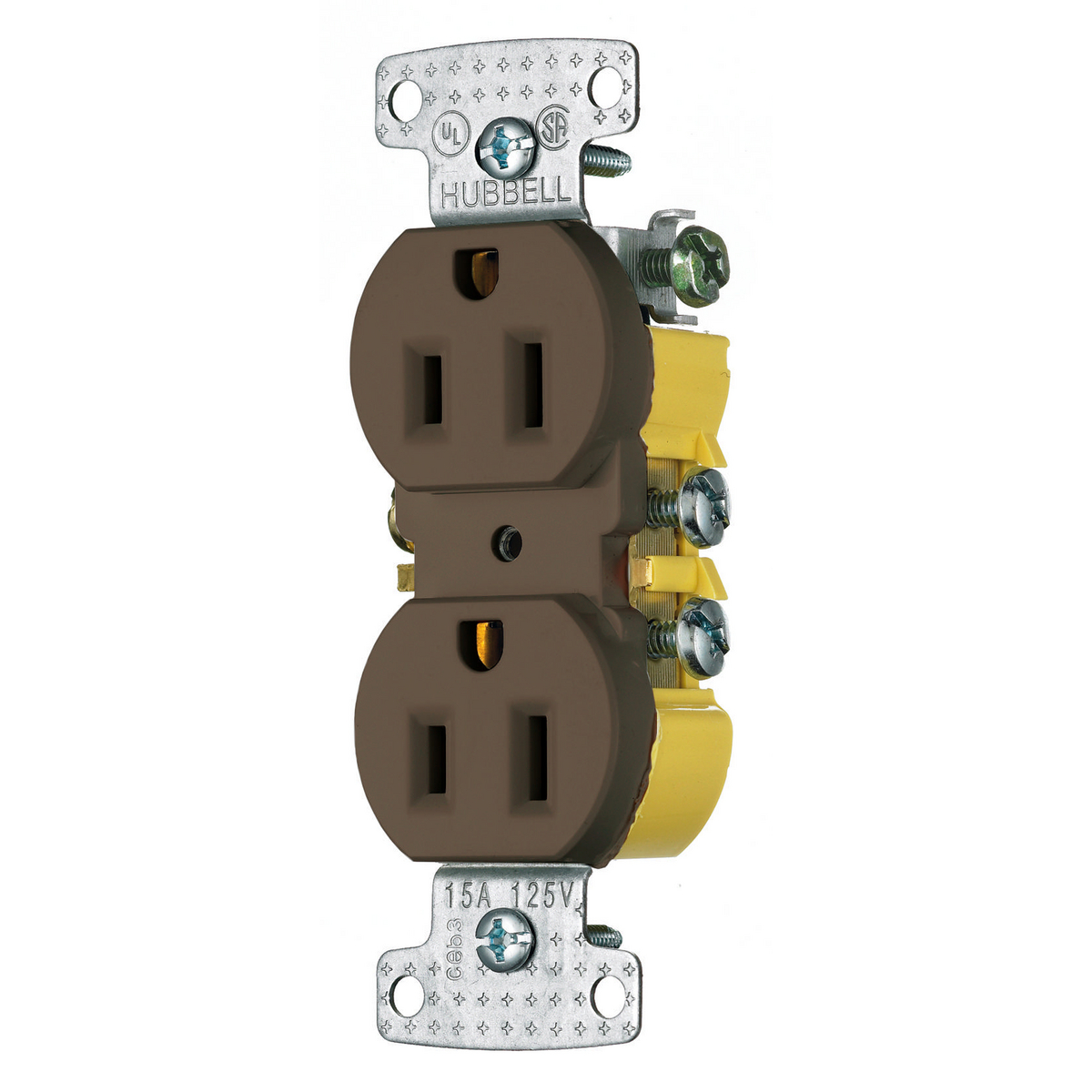

HUBBELL WIRING DEVICE-KELLEMS RR15 Receptacle, Standard Duplex, Flush Mount, 15A, 125V AC, Brown
Item: BC7YWAModel: RR15Cross Ref: 2JFR7
7 In Stock
Ships within 2 days via
10.00% off
€1.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Amps Rating | 15A |
| Color | Brown |
| Connection Orientation | Straight |
| Connectivity | Push And Side Wire |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Face Plate Height | 2.6" |
| Face Plate Width | 1 1/2" |
| Gfci | No |
| Grade | General Use |
| Grounding | Grounded |
| Horsepower Rating | 1/2 hp |
| Housing Color | Brown |
| Housing Material | Thermoplastic |
| Includes | Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Material | Thermoplastic |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 12 AWG |
| Minimum Operating Temperature | -20°C |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Type | Flush |
| Mounting Type | Screws |
| Nema Enclosure Rating | 1 |
| Nema Rating | 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Number Of Gangs | 1 |
| Overall Depth | 4.2" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-rr15.pdf |
| Receptacle Type | Duplex |
| Surge Protection | No |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 14 AWG to 12 AWG |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 3.56 |
| Country of Origin | CN |
