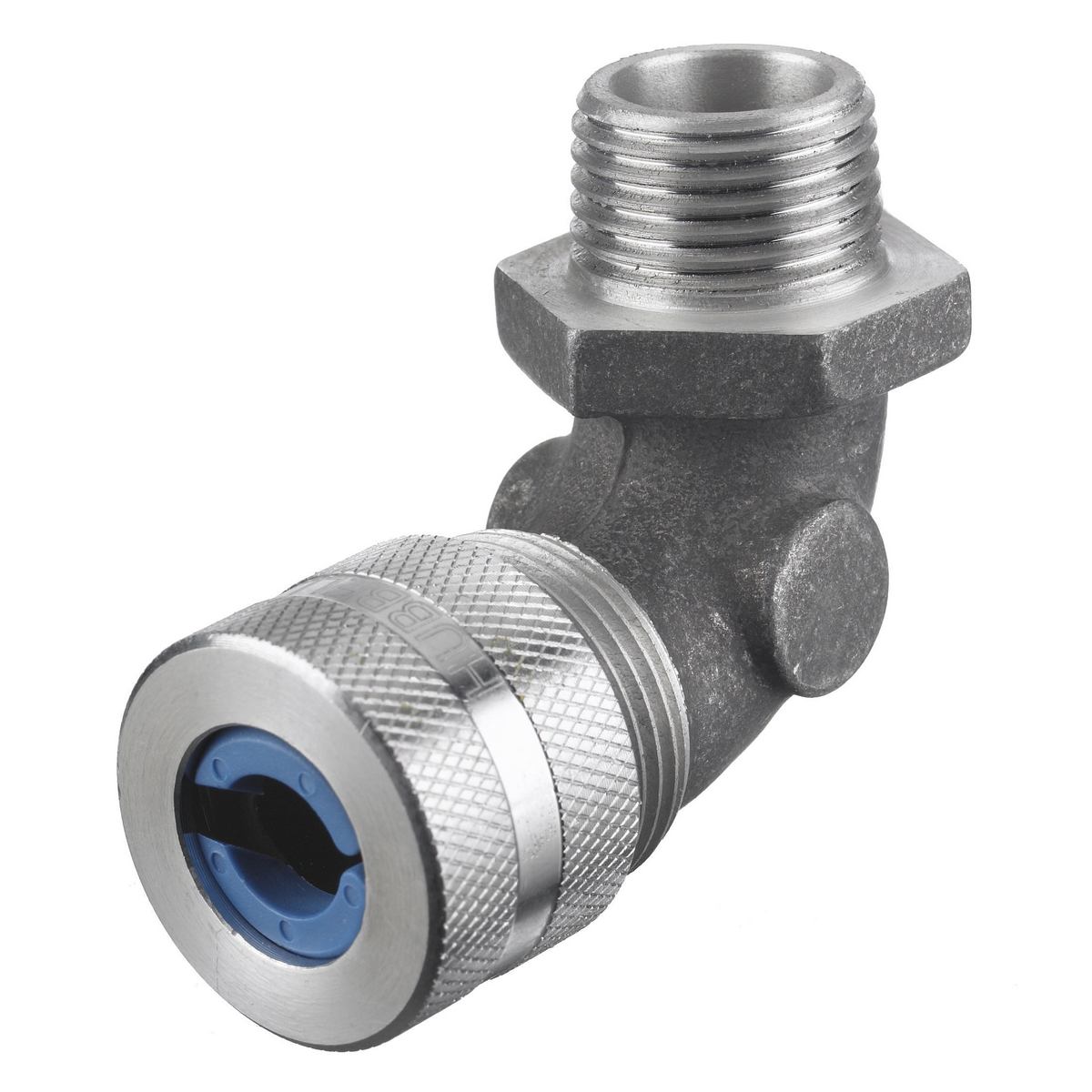

HUBBELL WIRING DEVICE-KELLEMS NHC1023 Liquid Tight Connector 1/2 Inch 90 Degree Blue
Item: AE3FMHModel: NHC1023Cross Ref: 5D800
7 In Stock
Ships within 2 days via
5.00% off
€32.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Liquid Tight Connector |
| Body Color | Silver |
| Body Material | Aluminum |
| Box Connection | 1/2" MNPT |
| Collar Material | Aluminum |
| Color | Blue |
| Compatible Conduit Trade Size | 1/2" |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Connection Orientation | 90° |
| Connector Type | Right Angle |
| Cord Dia. | 0.38" to 0.5" |
| Cord Dia. Range | 3/8" to 1/2" |
| Cord Size | 3/8" to 1/2" |
| Environmental Rating | Hazardous Locations |
| For Max. Cable Outside Dia. | 1/2" |
| For Min. Cable Outside Dia. | 0.38" |
| For Use With | Kellems Wire Management |
| Form Size | F2 |
| Grommet Color Code | Blue |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 And 2, Class III, Division 1 And 2 |
| Hub Size | 1/2" |
| Insulated | No |
| Ip Rating | IP66 |
| Length | 2 15/64" |
| Length-box To End Of Connector | 1 9/16" |
| Liquid Tight | Yes |
| Material | Aluminum |
| Material-external Strain Relief | No External Strain Relief |
| Max. Operating Temp. | 225°F |
| Min. Operating Temp. | -30°F |
| Nema Rating | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Cords | 1 |
| Product Datasheet | hubbell-wiring-device-kellems-nhc1023.pdf |
| Strain Relief Type | No External Strain Relief |
| Thread Gender | Male |
| Thread Type | NPT |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 5.68 |
| Ship width (cm) | 8.89 |
| HS code | 7609000000 |
| Country of Origin | CN |
Product Details:
- Number of Cords (1)
Documentation:
Product Variants
| Product | Model | Material | Color | Cord Dia. | Hub Size | Nema Rating | Box Connection | Body Color | Compatible Conduit Trade Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NHC1010 | Aluminum | Black | 0.25" to 0.31" | 3/8" | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | 3/8" MNPT | Silver | 3/8" | €37.31 | |
 |

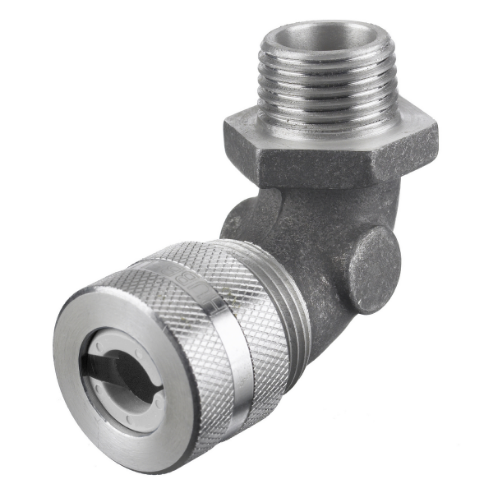

NHC1011 | Aluminum | White | 0.31" to 0.38" | 3/8" | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | 3/8" MNPT | Silver | 3/8" | €32.41 | |
 |
NHC1012 | Aluminum | Blue | 0.38" to 0.44" | 3/8" | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | 3/8" MNPT | Silver | 3/8" | €34.48 | |
 |
NHC1020 | Aluminum | Orange | - | - | - | - | - | - | €48.68 | |
 |

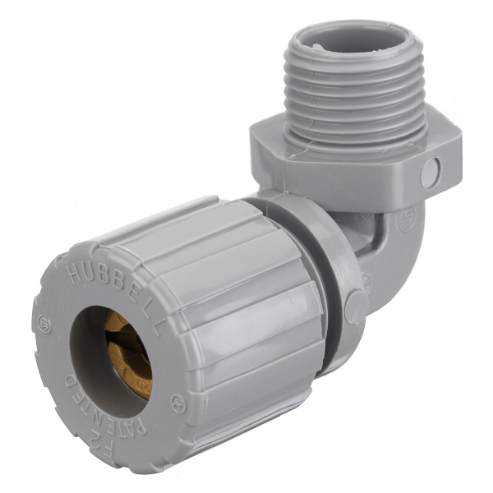

NHC1020CR | Nylon | Orange | 0.13" to 0.19" | 1/2" | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | 1/2" MNPT | Gray | 1/2" | €32.18 | |
 |
NHC1021CR | Nylon | - | 0.19" to 0.25" | 1/2" | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | 1/2" MNPT | Gray | 1/2" | €32.57 | |
 |
NHC1021ZP | Zinc Plated Steel | - | 0.19" to 0.25" | 1/2" | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | 1/2" MNPT | Silver | 1/2" | €39.64 |
